# SEANIX TECHNOLOGY, INC.
486VLP2
Processor 80486SX/IBM486DLC/80486DX/80486DX2/Pentium
Overdrive
Processor 25/33/40/50(internal)/50/66(internal)MHz
Speed
Chip Set EFAR
Max. Onboard 64MB
DRAM
Cache 64/128/256KB
BIOS ASI/MR
Dimensions 330mm x 218mm
I/O Options 32-bit VESA local bus slots (2)
NPU Options None

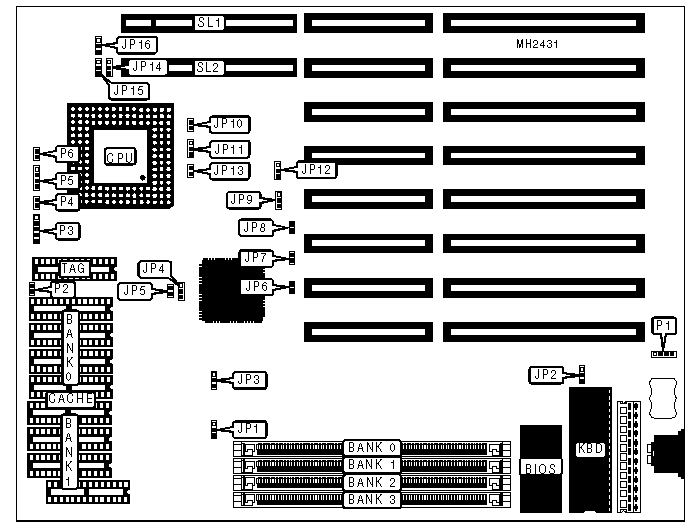

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| External battery | P1 | Speaker | P5 |
|-------------------+----------+------------------+----------|
| Reset switch | P2 | Turbo switch | P6 |
|-------------------+----------+------------------+----------|
| Power LED & | P3 | 32-bit VESA | SL1 & |
| keylock | | local bus slots | SL2 |
|-------------------+----------+------------------+----------|
| Turbo LED | P4 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Programming voltage select 5v | JP2 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Programming voltage select 12v | JP2 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Clock skew select same as CPU | JP12 | pins 1 & 2 |
| | clock | | closed |
|---+----------------------------------+--------+------------|
| | Clock skew select delayed on | JP12 | pins 2 & 3 |
| | gate relative to CPU | | closed |
|---+----------------------------------+--------+------------|
| » | Local ready select not delayed | JP16 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Local ready select delayed one | JP16 | pins 2 & 3 |
| | clock | | closed |
|---+----------------------------------+--------+------------|
| » | Battery type select internal | P1 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CMOS memory clear/external | P1 | pins 1 & 2 |
| | battery | | closed |
|---+----------------------------------+--------+------------|
| | Battery type select external | P1 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 1MB | (1) 256K x | NONE | NONE | NONE |
| | 36 | | | |
|------+-------------+-------------+------------+------------|
| 2MB | (1) 256K x | (1) 256K x | NONE | NONE |
| | 36 | 36 | | |
|------+-------------+-------------+------------+------------|
| 3MB | (1) 256K x | (1) 256K x | (1) 256K x | NONE |
| | 36 | 36 | 36 | |
|------+-------------+-------------+------------+------------|
| 4MB | (1) 256K x | (1) 256K x | (1) 256K x | (1) 256K x |
| | 36 | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 4MB | (1) 1M x 36 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 5MB | (1) 256K x | (1) 1M x 36 | NONE | NONE |
| | 36 | | | |
|------+-------------+-------------+------------+------------|
| 6MB | (1) 256K x | (1) 256K x | (1) 1M x | NONE |
| | 36 | 36 | 36 | |
|------+-------------+-------------+------------+------------|
| 7MB | (1) 256K x | (1) 256K x | (1) 256K x | (1) 1M x |
| | 36 | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 1M x 36 | (1) 1M x 36 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 9MB | (1) 256K x | (1) 1M x 36 | (1) 1M x | NONE |
| | 36 | | 36 | |
|------+-------------+-------------+------------+------------|
| 10MB | (1) 256K x | (1) 256K x | (1) 1M x | (1) 1M x |
| | 36 | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 12MB | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 13MB | (1) 256K x | (1) 1M x 36 | (1) 1M x | (1) 1M x |
| | 36 | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 4M x 36 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 18MB | (1) 256K x | (1) 256K x | (1) 4M x | NONE |
| | 36 | 36 | 36 | |
|------+-------------+-------------+------------+------------|
| 20MB | (1) 1M x 36 | (1) 4M x 36 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 20MB | (1) 4M x 36 | (1) 1M x 36 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 1M x 36 | (1) 1M x 36 | (1) 4M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 4M x 36 | (1) 1M x 36 | (1) 1M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 28MB | (1) 1M x 36 | (1) 1M x 36 | (1) 4M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 28MB | (1) 4M x 36 | (1) 1M x 36 | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 4M x 36 | (1) 4M x 36 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 36MB | (1) 1M x 36 | (1) 4M x 36 | (1) 4M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 40MB | (1) 4M x 36 | (1) 4M x 36 | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 40MB | (1) 1M x 36 | (1) 1M x 36 | (1) 4M x | (1) 4M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 48MB | (1) 4M x 36 | (1) 4M x 36 | (1) 4M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 52MB | (1) 1M x 36 | (1) 4M x 36 | (1) 4M x | (1) 4M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 52MB | (1) 4M x 36 | (1) 4M x 36 | (1) 4M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 64MB | (1) 4M x 36 | (1) 4M x 36 | (1) 4M x | (1) 4M x |
| | | | 36 | 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG |
|------------+---------------+---------------+---------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | (1) 8K x 8 |
|------------+---------------+---------------+---------------|
| 128KB | (4) 32K x 8 | NONE | (1) 8K x 8 |
|------------+---------------+---------------+---------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 | (1) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP1 | JP3 | JP4 | JP5 |
|-------+-----------------+------------+------------+--------|
| 64KB | pins 2 & 3 | pins 1 & 2 | pins 1 & 2 | Open |
| | closed | closed | closed | |
|-------+-----------------+------------+------------+--------|
| 128KB | pins 1 & 2 | pins 2 & 3 | pins 2 & 3 | Closed |
| | closed | closed | closed | |
|-------+-----------------+------------+------------+--------|
| 256KB | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 | Closed |
| | closed | closed | closed | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | JP9 | JP10 | JP11 | JP13 |
|----------------+------------+--------+------------+--------|
| 80486SX | pins 1 & 2 | Open | pins 2 & 3 | Open |
| | closed | | closed | |
|----------------+------------+--------+------------+--------|
| IBM486DLC | pins 2 & 3 | Closed | pins 1 & 2 | Closed |
| | closed | | closed | |
|----------------+------------+--------+------------+--------|
| 80486DX | pins 1 & 2 | Open | pins 1 & 2 | Closed |
| | closed | | closed | |
|----------------+------------+--------+------------+--------|
| 80486DX2 | pins 1 & 2 | Open | pins 1 & 2 | Closed |
| | closed | | closed | |
|----------------+------------+--------+------------+--------|
| Pentium | pins 1 & 2 | Open | pins 1 & 2 | Closed |
| Overdrive | closed | | closed | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | JP6 | JP7 | JP8 |
|---------------+--------------+--------------+--------------|
| 25MHZ | Open | Closed | Closed |
|---------------+--------------+--------------+--------------|
| 33MHz | Closed | Closed | Open |
|---------------+--------------+--------------+--------------|
| 40MHz | Closed | Closed | Closed |
|---------------+--------------+--------------+--------------|
| 50iMHz | Open | Closed | Closed |
|---------------+--------------+--------------+--------------|
| 50MHz | Closed | Open | Closed |
|---------------+--------------+--------------+--------------|
| 66iMHz | Closed | Closed | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VESA WAIT STATE CONFIGURATION |
|------------------------------------------------------------|
| Wait states | JP15 |
|----------------------------+-------------------------------|
| 0 wait states | pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 1 wait state | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BUS SPEED CONFIGURATION |
|------------------------------------------------------------|
| CPU speed | JP14 |
|----------------------------+-------------------------------|
| <= 33MHz | pins 1 & 2 closed |
|----------------------------+-------------------------------|
| > 33MHz | pins 2 & 3 closed |
+------------------------------------------------------------+
