# SEANIX TECHNOLOGY, INC.
HTK320
Processor 80386DX
Processor Speed 25/33/40MHz
Chip Set LSI
Max. Onboard DRAM 128MB
Cache 32/64/128KB
BIOS AMI
Dimensions 240mm x 215mm
I/O Options None
NPU Options 80387DX/3167

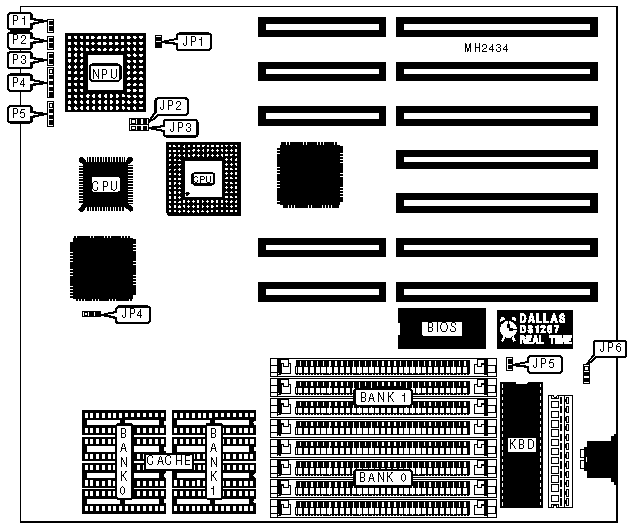

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------+----------+---------------------+----------|
| Reset switch | P1 | Power LED & keylock | P4 |
|----------------+----------+---------------------+----------|
| Cache LED | P2 | Speaker | P5 |
|----------------+----------+---------------------+----------|
| Turbo switch | P3 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | NPU synchronous with CPU | JP1 | Open |
|---+----------------------------------+--------+------------|
| | NPU asynchronous with CPU | JP1 | Closed |
|---+----------------------------------+--------+------------|
| » | CPU type select PGA | JP2 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CPU type select PQFP | JP2 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | PGA HLDA (bus hold acknowledge) | JP3 | pins 2 & 3 |
| | enabled | | closed |
|---+----------------------------------+--------+------------|
| | PQFP HLDA (bus hold acknowledge) | JP3 | pins 1 & 2 |
| | enabled | | closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | JP5 | Closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | JP5 | Open |
|---+----------------------------------+--------+------------|
| » | Turbo switch cache flush control | JP6 | pins 1 & 2 |
| | enabled | | closed |
|---+----------------------------------+--------+------------|
| | Keyboard cache flush control | JP6 | pins 2 & 3 |
| | enabled | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP10 | Open |
| | alter | | |
|------------------------------------------------------------|
| Note: JP10 may not be present on all boards. The location |
| is unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 1M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 17MB | (4) 4M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 20MB | (4) 4M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 64MB | (4) 16M x 9 | NONE |
|------------------+--------------------+--------------------|
| 128MB | (4) 16M x 9 | (4) 16M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 32KB | (4) 8K x 8 | NONE |
|------------------+--------------------+--------------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 |
|------------------+--------------------+--------------------|
| 128KB | (4) 32K x 8 | NONE |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP4 |
|----------------------------+-------------------------------|
| 32KB | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 64KB | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 128KB | pins 1 & 2 closed |
+------------------------------------------------------------+
