# TMC RESEARCH CORPORATION
PAT45PVS (VER.2.0)
Processor Pentium
Processor Speed 60/66MHz
Chip Set Unidentified
Max. Onboard DRAM 128MB
Cache 256/512KB
BIOS Unidentified
Dimensions 330mm x 218mm
I/O Options 32-bit VESA local bus slots (2)
NPU Options None

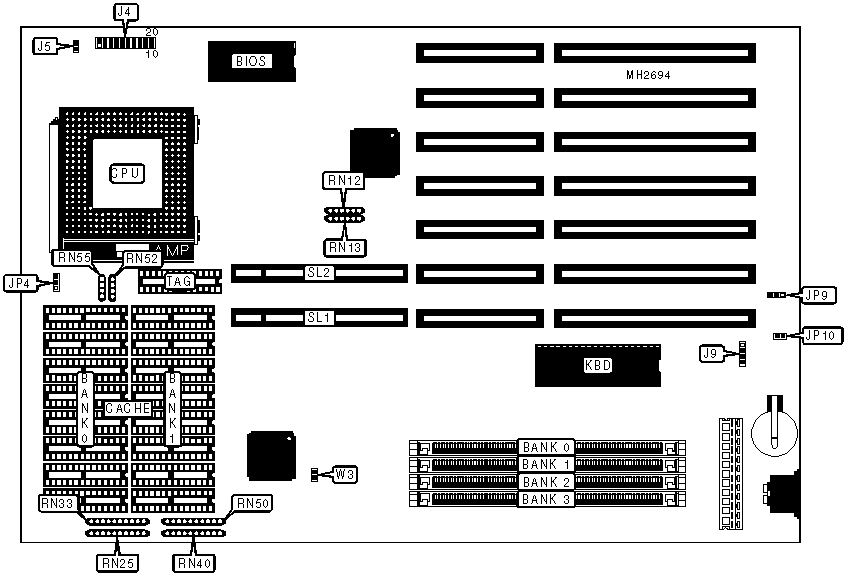

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+-----------+-----------------+----------|
| Speaker | J4 pins 1 | Power LED & | J4 |
| | - 4 | keylock | pins11 - |
| | | | 15 |
|-------------------+-----------+-----------------+----------|
| Turbo LED | J4 pins 8 | External | J9 |
| | & 18 | battery | |
|-------------------+-----------+-----------------+----------|
| Reset switch | J4 pins 9 | 32-bit VESA | SL1 - |
| | & 19 | local bus slots | SL2 |
|-------------------+-----------+-----------------+----------|
| IDE interface LED | J4 pins | | |
| | 10 & 20 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| » | Battery type select internal | JP9 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | Battery type select external | JP9 | Open |
|---+--------------------------------+--------+--------------|
| | CMOS memory clear | JP9 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| » | Monitor type select color | JP10 | Closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select monochrome | JP10 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 4MB | (1) 1M x 36 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 1M x 36 | NONE | (1) 1M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 1M x 36 | (1) 1M x 36 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 2M x 36 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 12MB | (1) 1M x 36 | NONE | (1) 2M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 1M x 36 | NONE | (1) 1M x | (1) 2M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 1M x 36 | (1) 1M x 36 | (1) 2M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 2M x 36 | NONE | (1) 2M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 4M x 36 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 20MB | (1) 1M x 36 | NONE | (1) 2M x | (1) 2M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 20MB | (1) 1M x 36 | NONE | (1) 4M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 1M x 36 | (1) 1M x 36 | (1) 2M x | (1) 2M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 1M x 36 | (1) 1M x 36 | (1) 4M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 2M x 36 | NONE | (1) 2M x | (1) 2M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 2M x 36 | NONE | (1) 4M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 4M x 36 | NONE | (1) 4M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 4M x 36 | (1) 4M x 36 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 8M x 36 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 36MB | (1) 1M x 36 | NONE | (1) 8M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 40MB | (1) 1M x 36 | NONE | (1) 1M x | (1) 8M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 40MB | (1) 1M x 36 | (1) 1M x 36 | (1) 8M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 40MB | (1) 2M x 36 | NONE | (1) 8M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 44MB | (1) 1M x 36 | NONE | (1) 2M x | (1) 8M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 48MB | (1) 1M x 36 | (1) 1M x 36 | (1) 2M x | (1) 8M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 48MB | (1) 2M x 36 | NONE | (1) 2M x | (1) 8M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 48MB | (1) 4M x 36 | NONE | (1) 8M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 52MB | (1) 1M x 36 | NONE | (1) 4M x | (1) 8M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 56MB | (1) 1M x 36 | (1) 1M x 36 | (1) 4M x | (1) 8M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 56MB | (1) 2M x 36 | NONE | (1) 4M x | (1) 8M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 64MB | (1) 4M x 36 | NONE | (1) 4M x | (1) 8M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 64MB | (1) 4M x 36 | (1) 4M x 36 | (1) 8M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 64MB | (1) 8M x 36 | NONE | (1) 8M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 64MB | (1) 16M x | NONE | NONE | NONE |
| | 36 | | | |
|------+-------------+-------------+------------+------------|
| 68MB | (1) 1M x 36 | NONE | (1) 8M x | (1) 8M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 72MB | (1) 1M x 36 | (1) 1M x 36 | (1) 8M x | (1) 8M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 72MB | (1) 2M x 36 | NONE | (1) 8M x | (1) 8M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 80MB | (1) 4M x 36 | NONE | (1) 8M x | (1) 8M x |
| | | | 36 | 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 96MB | (1) 4M x 36 | (1) 4M x | (1) 8M x | (1) 8M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 96MB | (1) 8M x 36 | NONE | (1) 8M x | (1) 8M x |
| | | | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 96MB | (1) 16M x | NONE | (1) 8M x | NONE |
| | 36 | | 36 | |
|-------+-------------+------------+------------+------------|
| 128MB | (1) 16M x | NONE | (1) 8M x | (1) 8M x |
| | 36 | | 36 | 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Setting | RN12 | RN13 |
|----------------------------+---------------+---------------|
| All SIMM types installed | Installed | Not installed |
|----------------------------+---------------+---------------|
| 16M x 36 SIMM only | Not installed | Installed |
| intalled | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG |
|------------+---------------+---------------+---------------|
| 256KB | (8) 8K x 8 | (8) 8K x 8 | (1) 8K x 8 |
|------------+---------------+---------------+---------------|
| 512KB | (8) 32K x 8 | (8) 32K x 8 | (1) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP4 | RN52 | RN55 |
|--------+-------------------+---------------+---------------|
| 256KB | Open | Installed | Not installed |
|--------+-------------------+---------------+---------------|
| 512KB | pins 2 & 3 closed | Not installed | Installed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VESA BUS SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | RN25 | RN33 | RN40 | RN50 |
|--------+------------+------------+------------+------------|
| 25MHz | Installed | Not | Not | Not |
| | | installed | installed | installed |
|--------+------------+------------+------------+------------|
| 33MHz | Not | Installed | Not | Not |
| | installed | | installed | installed |
|--------+------------+------------+------------+------------|
| 40MHz | Not | Not | Installed | Not |
| | installed | installed | | installed |
|--------+------------+------------+------------+------------|
| 50iMHz | Installed | Not | Not | Not |
| | | installed | installed | installed |
|--------+------------+------------+------------+------------|
| 50MHz | Not | Not | Not | Installed |
| | installed | installed | installed | |
|--------+------------+------------+------------+------------|
| 66iMHz | Not | Installed | Not | Not |
| | installed | | installed | installed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VESA WAIT STATE CONFIGURATION |
|------------------------------------------------------------|
| Wait states | W3 |
|-------------------------------+----------------------------|
| 0 wait states | Open |
|-------------------------------+----------------------------|
| 1 wait state | Closed |
+------------------------------------------------------------+
