# TMC RESEARCH CORPORATION
PET58PV (VER. 1.0)
Processor Pentium
Processor Speed 60/66MHz
Chip Set OPTI
Max. Onboard DRAM 128MB
Cache 256/512KB
BIOS Unidentified
Dimensions 330mm x 218mm
I/O Options 32-bit VESA local bus slots (2)
NPU Options None

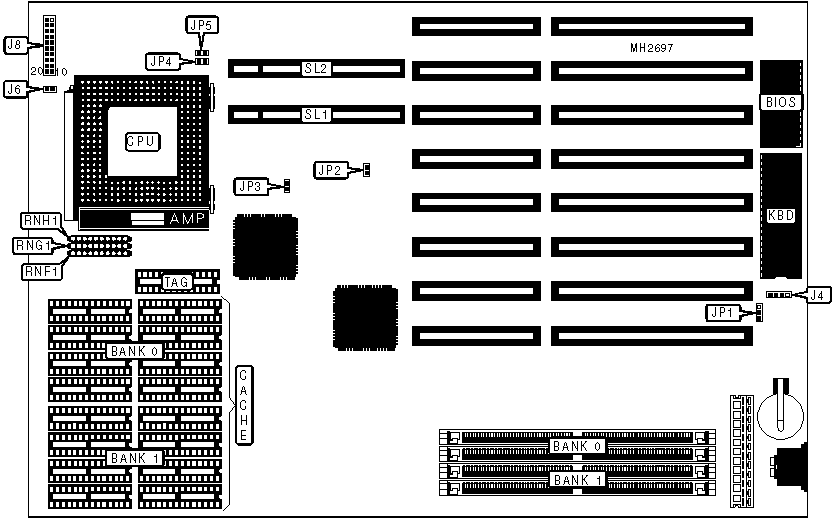

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+-----------+-----------------+-----------|
| External battery | J4 | Reset switch | J8 pins 9 |
| | | | & 19 |
|------------------+-----------+-----------------+-----------|
| IDE interface | J6 | IDE interface | J8 pins |
| LED | | LED | 10 & 20 |
|------------------+-----------+-----------------+-----------|
| Speaker | J8 pins 1 | Power LED & | J8 pins |
| | - 4 | keylock | 11 - 15 |
|------------------+-----------+-----------------+-----------|
| Turbo LED | J8 pins 8 | 32-bit VESA | SL1 & SL2 |
| | & 18 | local bus slots | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Battery type select normal | JP1 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Battery type select external | JP1 | Open |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | JP1 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | JP2 | Closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | JP2 | Open |
|---+----------------------------------+--------+------------|
| » | VESA local bus type select | JP3 | Closed |
| | synchronous | | |
|---+----------------------------------+--------+------------|
| | VESA local bus type select | JP3 | Open |
| | asynchronous | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | RNF1 | N/A |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 3 |
|------------------+--------------------+--------------------|
| 2MB | (2) 256K x 36 | NONE |
|------------------+--------------------+--------------------|
| 4MB | (2) 512K x 36 | NONE |
|------------------+--------------------+--------------------|
| 6MB | (2) 256K x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | NONE |
|------------------+--------------------+--------------------|
| 8MB | (2) 512K x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 10MB | (2) 256K x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 12MB | (2) 512K x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | NONE |
|------------------+--------------------+--------------------|
| 18MB | (2) 256K x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 20MB | (2) 512K x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 1M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | NONE |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 34MB | (2) 256K x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 36MB | (2) 512K x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 1M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 2M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | NONE |
|------------------+--------------------+--------------------|
| 66MB | (2) 256K x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 68MB | (2) 512K x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 1M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 2M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 4M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG |
|------------+---------------+---------------+---------------|
| 256KB | (8) 32K x 8 | NONE | (1) 32K x 8 |
|------------+---------------+---------------+---------------|
| 512KB | (8) 32K x 8 | (8) 32K x 8 | (1) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | RNG1 | RNH1 |
|------------------+--------------------+--------------------|
| 256KB | Installed | Not installed |
|------------------+--------------------+--------------------|
| 512KB | Not installed | Installed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VESA WAIT STATE CONFIGURATION |
|------------------------------------------------------------|
| Wait states | JP5 |
|-------------------------------+----------------------------|
| 0 wait states | Open |
|-------------------------------+----------------------------|
| 1 wait state | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BUS SPEED CONFIGURATION |
|------------------------------------------------------------|
| CPU speed | JP4 |
|-------------------------------+----------------------------|
| <= 33MHz | Open |
|-------------------------------+----------------------------|
| > 33MHz | Closed |
+------------------------------------------------------------+
