# TULIP COMPUTERS
TC40
Processor 80486SX/80486SX2/80486DX/80486DX2/80486DX4/Pentium
Overdrive
Processor 33/50/66(internal)/100(internal)MHz
Speed
Chip Set Unidentified
Max. 64MB
Onboard
DRAM
Cache 256KB (on external cache card)
BIOS Unidentified
Dimensions 254mm x 218mm
I/O Options Floppy drive interface, IDE interface, parallel
port, PS/2 mouse port, serial ports (2), VGA
feature connector, VGA port, ethernet port, cache
card slot, riser slot
NPU Options None

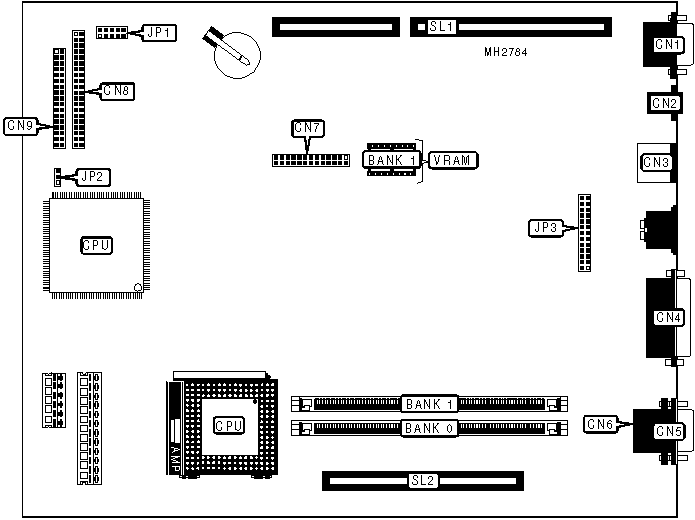

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| VGA port | CN1 | IDE interface | CN8 |
|------------------+----------+-------------------+----------|
| Ethernet port | CN2 | Floppy drive | CN9 |
| | | interface | |
|------------------+----------+-------------------+----------|
| PS/2 mouse port | CN3 | Front panel | JP1 |
| | | connector | |
|------------------+----------+-------------------+----------|
| Parallel port | CN4 | Smartport | JP3 |
| | | connector | |
|------------------+----------+-------------------+----------|
| Serial port 1 | CN5 | Riser slot | SL1 |
|------------------+----------+-------------------+----------|
| Serial port 2 | CN6 | Cache card slot | SL2 |
|------------------+----------+-------------------+----------|
| VGA feature | CN7 | | |
| connector | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|-------------------------------------+--------+-------------|
| ยป | Cache type select write through | JP2 | pins 1 & 2 |
| | | | closed |
|---+---------------------------------+--------+-------------|
| | Cache type select write back | JP2 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 4MB | (1) 1M x 36 | NONE |
|------------------+--------------------+--------------------|
| 8MB | (1) 1M x 36 | (1) 1M x 36 |
|------------------+--------------------+--------------------|
| 8MB | (1) 2M x 36 | NONE |
|------------------+--------------------+--------------------|
| 12MB | (1) 1M x 36 | (1) 2M x 36 |
|------------------+--------------------+--------------------|
| 12MB | (1) 2M x 36 | (1) 1M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (1) 2M x 36 | (1) 2M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (1) 4M x 36 | NONE |
|------------------+--------------------+--------------------|
| 20MB | (1) 1M x 36 | (1) 4M x 36 |
|------------------+--------------------+--------------------|
| 20MB | (1) 4M x 36 | (1) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (1) 2M x 36 | (1) 4M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (1) 4M x 36 | (1) 2M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (1) 4M x 36 | (1) 4M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (1) 8M x 36 | NONE |
|------------------+--------------------+--------------------|
| 36MB | (1) 1M x 36 | (1) 8M x 36 |
|------------------+--------------------+--------------------|
| 36MB | (1) 8M x 36 | (1) 1M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (1) 2M x 36 | (1) 8M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (1) 8M x 36 | (1) 2M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (1) 4M x 36 | (1) 8M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (1) 8M x 36 | (1) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (1) 8M x 36 | (1) 8M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|-------------+------------------------+---------------------|
| 1MB | (2) 256K x 16 | NONE |
|-------------+------------------------+---------------------|
| 2MB | (2) 256K x 16 | (2) 256K x 16 |
|------------------------------------------------------------|
| Note: The location of Bank 0 is unidentified. Bank 0 is |
| factory installed and is not configurable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: To use 256KB cache, install cache card in slot SL2. |
+------------------------------------------------------------+
