# SOYO COMPUTER CO., LTD.
SY-5TE2/E5/E0
Processor CX M1/Pentium
Processor Speed 75/90/100/120/133/150/166/180/200MHz
Chip Set Intel
Maximum Onboard 128MB
Memory
Cache 256/512KB
BIOS Award
Dimensions 330mm x 218mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, PS/2 mouse port, serial ports
(2), VRM connector, cache slot
NPU Options None

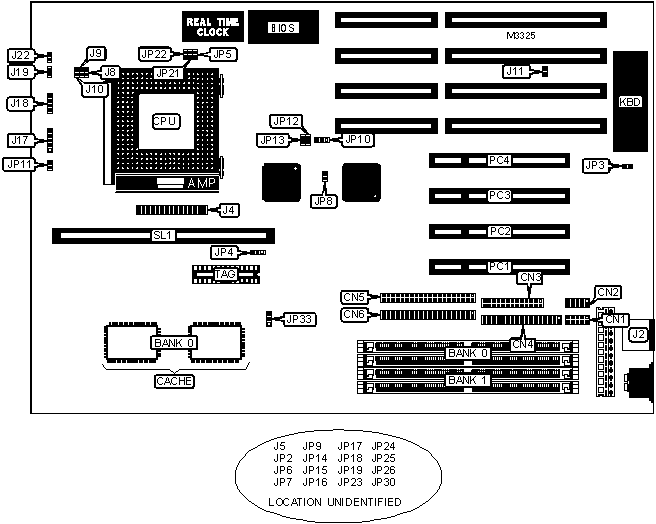

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+--------------------+--------|
| Serial port 2 | CN1 | Power LED & | J17 |
| | | keylock | |
|----------------------+-------+--------------------+--------|
| Serial port 1 | CN2 | Speaker | J18 |
|----------------------+-------+--------------------+--------|
| Parallel port | CN3 | Reset switch | J19 |
|----------------------+-------+--------------------+--------|
| Floppy drive | CN4 | Turbo LED | J22 |
| interface | | | |
|----------------------+-------+--------------------+--------|
| IDE interface 2 | CN5 | Green PC connector | JP8 |
|----------------------+-------+--------------------+--------|
| IDE interface 1 | CN6 | IDE interface LED | JP11 |
|----------------------+-------+--------------------+--------|
| PS/2 mouse port | J2 | 32-bit PCI slots | PC1 - |
| | | | PC4 |
|----------------------+-------+--------------------+--------|
| VRM connector | J4 | Cache slot | SL1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | J5 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | PS/2 mouse disabled | J11 | Open |
|---+---------------------------------+-------+--------------|
| | PS/2 mouse enabled | J11 | Closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP2 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Monitor type select color | JP3 | Closed |
|---+---------------------------------+-------+--------------|
| | Monitor type select monochrome | JP3 | Open |
|---+---------------------------------+-------+--------------|
| » | CMOS memory normal operation | JP5 | Open |
|---+---------------------------------+-------+--------------|
| | CMOS memory clear | JP5 | Closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP6 | Pins 1 & 2 |
| | alter | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP7 | Pins 1 & 2 |
| | alter | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP9 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | AT bus clock speed select /4 | JP10 | Pins 2 & 3 |
| | (all CPUs except 75 & 120MHz) | | closed |
|---+---------------------------------+-------+--------------|
| | AT bus clock speed select /3 | JP10 | Pins 1 & 2 |
| | (75 & 120MHz only) | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP14 | Pins 1 & 2 |
| | alter | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP15 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP16 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP17 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP18 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP19 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP23 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP24 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP25 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP26 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP30 | Pins 1 & 2 |
| | alter | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 4MB | (2) 512K x 36 | None |
|------------------+--------------------+--------------------|
| 4MB | (2) 256K x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 6MB | (2) 512K x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 6MB | (2) 256K x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 8MB | (2) 512K x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 10MB | (2) 1M x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 10MB | (2) 256K x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 12MB | (2) 1M x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 12MB | (2) 512K x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 18MB | (2) 2M x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 18MB | (2) 256K x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 20MB | (2) 2M x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 20MB | (2) 512K x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 1M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 34MB | (2) 4M x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 34MB | (2) 256K x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 36MB | (2) 4M x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 36MB | (2) 512K x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 1M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 2M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 66MB | (2) 8M x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 66MB | (2) 256K x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 68MB | (2) 8M x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 68MB | (2) 512K x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 1M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 2M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 4M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 16M x 36 | None |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE SIZE |
|------------------------------------------------------------|
| Size | Bank 0 | TAG | SL1 |
|------------+---------------+---------------+---------------|
| 256KB | (2) 32K x 32 | (1) 16K x 8 | Not installed |
|------------+---------------+---------------+---------------|
| 512KB | (2) 32K x 32 | (1) 16K x 8 | Installed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER |
|------------------------------------------------------------|
| Size | JP4 | JP33 |
|------------------+--------------------+--------------------|
| 256KB | Pins 1 & 2 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 512KB | Pins 2 & 3 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED |
|------------------------------------------------------------|
| External | Internal | JP12 | JP13 | JP21 | JP22 |
| speed | speed | | | | |
|-------------+----------+--------+--------+--------+--------|
| 75MHz | 50MHz | Open | Open | Open | Open |
|-------------+----------+--------+--------+--------+--------|
| 90MHz | 60MHz | Closed | Open | Open | Open |
|-------------+----------+--------+--------+--------+--------|
| 100MHz | 66MHz | Closed | Closed | Open | Open |
|-------------+----------+--------+--------+--------+--------|
| 100MHz | 50MHz | Open | Open | Closed | Open |
|-------------+----------+--------+--------+--------+--------|
| 120MHz | 60MHz | Closed | Open | Closed | Open |
|-------------+----------+--------+--------+--------+--------|
| 133MHz | 66MHz | Closed | Closed | Closed | Open |
|-------------+----------+--------+--------+--------+--------|
| 150MHz | 60MHz | Closed | Open | Closed | Closed |
|-------------+----------+--------+--------+--------+--------|
| 166MHz | 66MHz | Closed | Closed | Closed | Closed |
|-------------+----------+--------+--------+--------+--------|
| 180MHz | 60MHz | Closed | Open | Open | Closed |
|-------------+----------+--------+--------+--------+--------|
| 200MHz | 66MHz | Closed | Closed | Open | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE |
|------------------------------------------------------------|
| Setting | J8 | J9 | J10 |
|---------------+---------------+---------------+------------|
| 3.3v | Closed | Open | Open |
|---------------+---------------+---------------+------------|
| 3.45v - 3.6v | Open | Closed | Open |
+------------------------------------------------------------+
