# SIEMENS NIXDORF INFORMATIONSSYSTEME AG
S26361-D808-A21
Processor Pentium
Processor Speed 60MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 192MB
Memory
Maximum Video None
Memory
Cache 256KB
BIOS Unidentified
Dimensions 330mm x 218mm
I/O Options 32-bit PCI slots (3), floppy drive interface,
IDE interfaces (2), parallel port, PS/2 mouse
port, serial ports (2)
NPU Options None

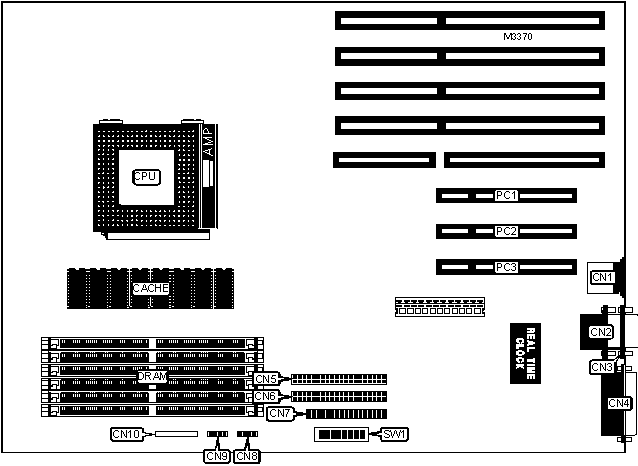

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------+----------+--------------------+----------|
| PS/2 mouse port | CN1 | Floppy drive | CN7 |
| | | interface | |
|-----------------+----------+--------------------+----------|
| Serial port | CN2 | Chassis fan power | CN8 |
|-----------------+----------+--------------------+----------|
| Serial port | CN3 | Speaker | CN9 |
|-----------------+----------+--------------------+----------|
| Parallel port | CN4 | Front panel | CN10 |
| | | connector | |
|-----------------+----------+--------------------+----------|
| IDE interface 2 | CN5 | 32-bit PCI slots | PC1 - |
| | | | PC3 |
|-----------------+----------+--------------------+----------|
| IDE interface 1 | CN6 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-----------------------------------------+-------+----------|
| » | Flash BIOS normal operation | SW1/1 | Off |
|---+-------------------------------------+-------+----------|
| | Flash BIOS recovery mode | SW1/1 | On |
|---+-------------------------------------+-------+----------|
| » | Password enabled | SW1/2 | Off |
|---+-------------------------------------+-------+----------|
| | Password disabled | SW1/2 | On |
|---+-------------------------------------+-------+----------|
| » | Port 0C91H bit select bit 2 set to | SW1/3 | Off |
| | 1 | | |
|---+-------------------------------------+-------+----------|
| | Port 0C91H bit select bit 2 set to | SW1/3 | On |
| | 0 | | |
|---+-------------------------------------+-------+----------|
| » | Port 0C91H bit select bit 3 set to | SW1/4 | Off |
| | 1 | | |
|---+-------------------------------------+-------+----------|
| | Port 0C91H bit select bit 3 set to | SW1/4 | On |
| | 0 | | |
|---+-------------------------------------+-------+----------|
| » | Flash BIOS write protect disabled | SW1/5 | Off |
|---+-------------------------------------+-------+----------|
| | Flash BIOS write protect enabled | SW1/5 | On |
|---+-------------------------------------+-------+----------|
| » | Floppy drive write protect disabled | SW1/6 | Off |
|---+-------------------------------------+-------+----------|
| | Floppy drive write protect enabled | SW1/6 | On |
|---+-------------------------------------+-------+----------|
| » | Factory configured - do not alter | SW1/7 | Off |
|---+-------------------------------------+-------+----------|
| » | System normal operation | SW1/8 | Off |
|---+-------------------------------------+-------+----------|
| | System runs loops of POST | SW1/8 | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 8MB | (2) 1M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 16MB | (2) 2M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 24MB | (2) 1M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 24MB | (2) 1M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 32MB | (2) 4M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 40MB | (2) 1M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 48MB | (2) 1M x 36 | (2) 4M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 48MB | (2) 1M x 36 | (2) 1M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 56MB | (2) 2M x 36 | (2) 4M x 36 | (2) 1M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 56MB | (2) 2M x 36 | (2) 1M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 56MB | (2) 4M x 36 | (2) 1M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 56MB | (2) 4M x 36 | (2) 2M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 56MB | (2) 1M x 36 | (2) 2M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 56MB | (2) 1M x 36 | (2) 4M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 64MB | (2) 8M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 64MB | (2) 4M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 64MB | (2) 2M x 36 | (2) 4M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 64MB | (2) 2M x 36 | (2) 2M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 80MB | (2) 2M x 36 | (2) 8M x 36 | None |
|------------+---------------+---------------+---------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 80MB | (2) 1M x 36 | (2) 8M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 80MB | (2) 1M x 36 | (2) 1M x 36 | (2) 8M x 36 |
|------------+---------------+---------------+---------------|
| 80MB | (2) 8M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 88MB | (2) 8M x 36 | (2) 2M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 88MB | (2) 1M x 36 | (2) 2M x 36 | (2) 8M x 36 |
|------------+---------------+---------------+---------------|
| 88MB | (2) 2M x 36 | (2) 8M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 88MB | (2) 2M x 36 | (2) 1M x 36 | (2) 8M x 36 |
|------------+---------------+---------------+---------------|
| 88MB | (2) 8M x 36 | (2) 1M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 96MB | (2) 4M x 36 | (2) 8M x 36 | None |
|------------+---------------+---------------+---------------|
| 96MB | (2) 4M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 96MB | (2) 8M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 96MB | (2) 2M x 36 | (2) 8M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 104MB | (2) 1M x 36 | (2) 4M x 36 | (2) 8M x 36 |
|------------+---------------+---------------+---------------|
| 104MB | (2) 4M x 36 | (2) 1M x 36 | (2) 8M x 36 |
|------------+---------------+---------------+---------------|
| 104MB | (2) 8M x 36 | (2) 1M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 104MB | (2) 8M x 36 | (2) 4M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 112MB | (2) 8M x 36 | (2) 2M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 112MB | (2) 4M x 36 | (2) 8M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 112MB | (2) 4M x 36 | (2) 2M x 36 | (2) 8M x 36 |
|------------+---------------+---------------+---------------|
| 112MB | (2) 2M x 36 | (2) 4M x 36 | (2) 8M x 36 |
|------------+---------------+---------------+---------------|
| 112MB | (2) 8M x 36 | (2) 4M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 112MB | (2) 2M x 36 | (2) 8M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 128MB | (2) 4M x 36 | (2) 4M x 36 | (2) 8M x 36 |
|------------+---------------+---------------+---------------|
| 128MB | (2) 4M x 36 | (2) 8M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 128MB | (2) 8M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 136MB | (2) 8M x 36 | (2) 1M x 36 | (2) 8M x 36 |
|------------+---------------+---------------+---------------|
| 136MB | (2) 1M x 36 | (2) 8M x 36 | (2) 8M x 36 |
|------------+---------------+---------------+---------------|
| 136MB | (2) 8M x 36 | (2) 8M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 192MB | (2) 8M x 36 | (2) 8M x 36 | (2) 8M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB cache is factory installed and is not |
| configurable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTE |
|------------------------------------------------------------|
| Note: The location of pin 1 on the connectors and switch |
| are unidentified. |
+------------------------------------------------------------+
