# SIEMENS NIXDORF INFORMATIONSSYSTEME AG
S26361-D858
Processor Pentium
Processor Speed 75/90/100/120/133/150/166MHz
Chip Set Unidentified
Video Chip Set None
Maximum Onboard 128MB (EDO supported)
Memory
Maximum Video None
Memory
Cache 256/512KB
BIOS Unidentified
Dimensions 254mm x 218mm
I/O Options Microphone connector, audio input connector,
game/MIDI port, parallel port, serial ports
(2), PS/2 mouse port, floppy drive interface,
IDE interfaces (2), wave table connector, PC
extension, soft off power supply connector,
CD audio input connector, CD-ROM connector,
front panel connector, soft on/off switch
connector, remote on connector, riser slot,
cache slot
NPU Options None

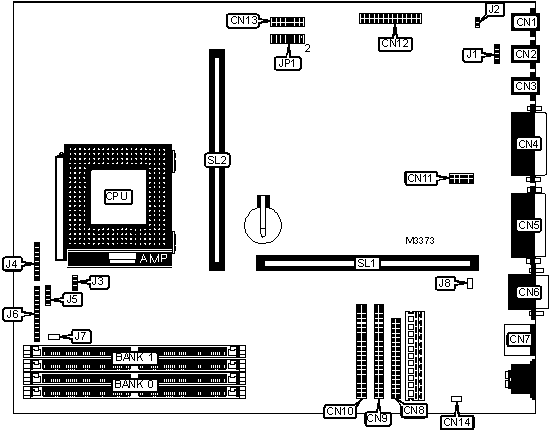

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| Microphone | CN1 | PC extension | CN13 |
| connector | | (optional) | |
| (optional) | | | |
|------------------+----------+-------------------+----------|
| Audio input | CN2 | Soft off power | CN14 |
| connector | | supply connector | |
| (optional) | | | |
|------------------+----------+-------------------+----------|
| Speaker | CN3 | CD audio input | J1 |
| (optional) | | connector | |
| | | (optional) | |
|------------------+----------+-------------------+----------|
| Game/MIDI port | CN4 | CD-ROM connector | J2 |
| | | (optional) | |
|------------------+----------+-------------------+----------|
| Parallel port | CN5 | Chassis fan power | J3 |
|------------------+----------+-------------------+----------|
| Serial port 1 | CN6 | Front panel | J4 |
| | | connector | |
|------------------+----------+-------------------+----------|
| PS/2 mouse port | CN7 | Speaker | J5 |
|------------------+----------+-------------------+----------|
| Floppy drive | CN8 | Front panel | J6 |
| interface | | connector | |
|------------------+----------+-------------------+----------|
| IDE interface | CN9 | Soft on/off | J7 |
| | | switch connector | |
|------------------+----------+-------------------+----------|
| IDE interface | CN10 | Remote on | J8 |
| | | connector | |
|------------------+----------+-------------------+----------|
| Serial port 2 | CN11 | Riser slot | SL1 |
|------------------+----------+-------------------+----------|
| Wave table | CN12 | Cache slot | SL2 |
| connector | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|--------------------------------------+----------+----------|
| » | Flash BIOS write protect | JP1 pins | Open |
| | disabled | 7 & 8 | |
|---+----------------------------------+----------+----------|
| | Flash BIOS write protect enabled | JP1 pins | Closed |
| | | 7 & 8 | |
|---+----------------------------------+----------+----------|
| » | Password enabled | JP1 pins | Open |
| | | 9 & 10 | |
|---+----------------------------------+----------+----------|
| | Password disabled | JP1 pins | Closed |
| | | 9 & 10 | |
|---+----------------------------------+----------+----------|
| » | BIOS normal operation | JP1 pins | Open |
| | | 11 & 12 | |
|---+----------------------------------+----------+----------|
| | BIOS recovery mode | JP1 pins | Closed |
| | | 11 & 12 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 1M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 1M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 2M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|---------------+-----------------------+--------------------|
| 72MB | (2) 1M x 36 | (2) 8M x 36 |
|---------------+-----------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|---------------+-----------------------+--------------------|
| 80MB | (2) 2M x 36 | (2) 8M x 36 |
|---------------+-----------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|---------------+-----------------------+--------------------|
| 96MB | (2) 4M x 36 | (2) 8M x 36 |
|---------------+-----------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. Board also accepts x 32 |
| SIMMs. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | SL2 |
|----------------------------+-------------------------------|
| 256KB | 256KB module installed |
|----------------------------+-------------------------------|
| 512KB | 512KB module installed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| Speed | JP1 pins 1 | JP1 pins 3 | JP1 pins 5 | JP1 pins |
| | & 2 | & 4 | & 6 | 13 & 14 |
|--------+------------+------------+------------+------------|
| 75MHz | Closed | Closed | Open | Open |
|--------+------------+------------+------------+------------|
| 90MHz | Closed | Open | Open | Open |
|--------+------------+------------+------------+------------|
| 100MHz | Open | Closed | Open | Open |
|--------+------------+------------+------------+------------|
| 120MHz | Closed | Open | Closed | Open |
|--------+------------+------------+------------+------------|
| 133MHz | Open | Closed | Closed | Open |
|--------+------------+------------+------------+------------|
| 150MHz | Closed | Open | Closed | Closed |
|--------+------------+------------+------------+------------|
| 166MHz | Open | Closed | Closed | Closed |
+------------------------------------------------------------+
