# SUPER MICRO
P5STE
Processor Pentium
Processor Speed 75/90/100/120/133/150/166/180/200MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 768MB (EDO supported)
Memory
Maximum Video None
Memory
Cache 256/512KB
BIOS Award
Dimensions 330mm x 218mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
IDE interfaces (2), parallel port, PS/2 mouse
interface, serial ports (2), IR connector,
USB connectors (2)
NPU Options None
IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Buzzer connector | J13 | Parallel port | J53 |
|-------------------+----------+------------------+----------|
| Chassis fan power | J14 | Floppy drive | J54 |
| | | interface | |
|-------------------+----------+------------------+----------|
| Overheat LED | J15 | IDE interface 1 | J70 |
|-------------------+----------+------------------+----------|
| Chassis fan power | J18 | IDE interface 2 | J71 |
|-------------------+----------+------------------+----------|
| Power LED & | J32 | Legacy connector | J85 |
| keylock | | | |
|-------------------+----------+------------------+----------|
| IDE interface LED | J34 | PS/2 mouse | J86 |
| | | interface | |
|-------------------+----------+------------------+----------|
| Reset switch | J35 | External battery | JP30 |
|-------------------+----------+------------------+----------|
| Speaker | J39 | Turbo LED | JP32 |
|-------------------+----------+------------------+----------|
| USB connector | J44 | IR connector | JP67 |
|-------------------+----------+------------------+----------|
| USB connector | J45 | IR connector | JP68 |
|-------------------+----------+------------------+----------|
| Serial port 2 | J51 | 32-bit PCI slots | PC1 - |
| | | | PC4 |
|-------------------+----------+------------------+----------|
| Serial port 1 | J52 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | J12 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J15 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J28 | Closed |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J36 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J37 | Pins 1 & 2 |
| | alter | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J38 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J41 | Open |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | CMOS memory normal operation | J42 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | CMOS memory clear | J42 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J43 | Open |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | ISA CLK = PCI CLK/4 | J67 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | ISA CLK = PCI CLK/3 | J67 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J75 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J76 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J77 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J113 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP15 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP62 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP63 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP64 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP65 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP66 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+

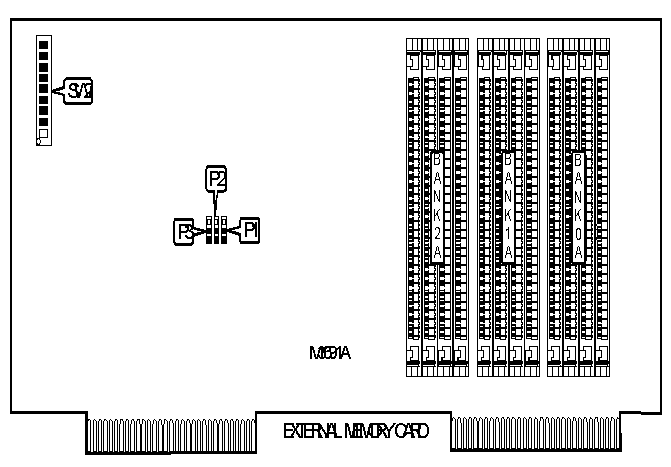

| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 16MB | (2) 2M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 24MB | (2) 1M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 32MB | (2) 4M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 56MB | (2) 4M x 36 | (2) 2M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 64MB | (2) 8M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 80MB | (2) 8M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 88MB | (2) 8M x 36 | (2) 2M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 96MB | (2) 4M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 96MB | (2) 8M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 104MB | (2) 8M x 36 | (2) 4M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 112MB | (2) 8M x 36 | (2) 4M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 128MB | (2) 8M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 128MB | (2) 16M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 | None |
|------------+---------------+---------------+---------------|
| 136MB | (2) 8M x 36 | (2) 8M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 144MB | (2) 16M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 152MB | (2) 16M x 36 | (2) 2M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 160MB | (2) 16M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 168MB | (2) 16M x 36 | (2) 4M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 176MB | (2) 16M x 36 | (2) 4M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 | None |
|------------+---------------+---------------+---------------|
| 192MB | (2) 16M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 200MB | (2) 16M x 36 | (2) 8M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 208MB | (2) 16M x 36 | (2) 8M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 224MB | (2) 16M x 36 | (2) 8M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 256MB | (2) 32M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 | None |
|------------+---------------+---------------+---------------|
| 256MB | (2) 16M x 36 | (2) 8M x 36 | (2) 8M x 36 |
|------------+---------------+---------------+---------------|
| 264MB | (2) 32M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 264MB | (2) 16M x 36 | (2) 16M x 36 | (2) 1M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|----------+----------------+----------------+---------------|
| 272MB | (2) 32M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|----------+----------------+----------------+---------------|
| 272MB | (2) 32M x 36 | (2) 2M x 36 | None |
|----------+----------------+----------------+---------------|
| 272MB | (2) 16M x 36 | (2) 16M x 36 | (2) 2M x 36 |
|----------+----------------+----------------+---------------|
| 288MB | (2) 32M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|----------+----------------+----------------+---------------|
| 288MB | (2) 32M x 36 | (2) 4M x 36 | None |
|----------+----------------+----------------+---------------|
| 288MB | (2) 16M x 36 | (2) 16M x 36 | (2) 4M x 36 |
|----------+----------------+----------------+---------------|
| 320MB | (2) 32M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|----------+----------------+----------------+---------------|
| 320MB | (2) 32M x 36 | (2) 8M x 36 | None |
|----------+----------------+----------------+---------------|
| 320MB | (2) 16M x 36 | (2) 16M x 36 | (2) 8M x 36 |
|----------+----------------+----------------+---------------|
| 384MB | (2) 32M x 36 | (2) 8M x 36 | (2) 8M x 36 |
|----------+----------------+----------------+---------------|
| 384MB | (2) 32M x 36 | (2) 16M x 36 | None |
|----------+----------------+----------------+---------------|
| 384MB | (2) 16M x 36 | (2) 16M x 36 | (2) 16M x 36 |
|----------+----------------+----------------+---------------|
| 512MB | (2) 32M x 36 | (2) 32M x 36 | None |
|----------+----------------+----------------+---------------|
| 512MB | (2) 32M x 36 | (2) 16M x 36 | (2) 16M x 36 |
|----------+----------------+----------------+---------------|
| 768MB | (2) 32M x 36 | (2) 32M x 36 | (2) 32M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. Board also accepts x 32 |
| SIMMs. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: Either 256KB or 512KB cache will be installed at the |
| factory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
|CPU speed|Clock speed|Multiplier| J27 | J29 | J31 | J40 |
|---------+-----------+----------+------+------+------+------|
| 75MHz | 50MHz | 1.5x | Open |Closed|Closed| Open |
|---------+-----------+----------+------+------+------+------|
| 90MHz | 60MHz | 1.5x | Open |Closed| Open | Open |
|---------+-----------+----------+------+------+------+------|
| 100MHz | 66MHz | 1.5x | Open | Open |Closed| Open |
|---------+-----------+----------+------+------+------+------|
| 120MHz | 60MHz | 2x |Closed|Closed| Open | Open |
|---------+-----------+----------+------+------+------+------|
| 133MHz | 66MHz | 2x |Closed| Open |Closed| Open |
|---------+-----------+----------+------+------+------+------|
| 150MHz | 60MHz | 2.5x |Closed|Closed| Open |Closed|
|---------+-----------+----------+------+------+------+------|
| 166MHz | 66MHz | 2.5x |Closed| Open |Closed|Closed|
|---------+-----------+----------+------+------+------+------|
| 180MHz | 60MHz | 3x | Open |Closed| Open |Closed|
|---------+-----------+----------+------+------+------+------|
| 200MHz | 66MHz | 3x | Open | Open |Closed|Closed|
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE SELECTION |
|------------------------------------------------------------|
| Voltage | JP11 |
|----------------------------+-------------------------------|
| | 2.5v | Pins 2 & 3 closed |
|---+------------------------+-------------------------------|
| | 2.9v | Open |
|---+------------------------+-------------------------------|
| » | 3.3v | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| THERMAL CONTROL SELECTION |
|------------------------------------------------------------|
| Turn on | Turn off | J1 |
| temperature | temperature | |
|--------------------+--------------------+------------------|
| 57 | 51 | Pins 1 & 2 |
| | | closed |
|--------------------+--------------------+------------------|
| 62 | 58 | Pins 2 & 3 |
| | | closed |
|--------------------+--------------------+------------------|
| 69 | 65 | Open |
|------------------------------------------------------------|
| Note: Temperature is in Celsius. |
+------------------------------------------------------------+
