# TYAN COMPUTER CORPORATION
S1563D (REV. 1.0)
Processor Pentium
Processor Speed 75/90/100/120/133/150/166/200MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 512MB (EDO supported)
Memory
Maximum Video None
Memory
Cache 512KB
BIOS AMI/Award
Dimensions 330mm x 218mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
IDE interfaces (2), parallel port, PS/2 mouse
interface, serial ports (2), IR connectors
(2), USB connectors (2)
NPU Options None

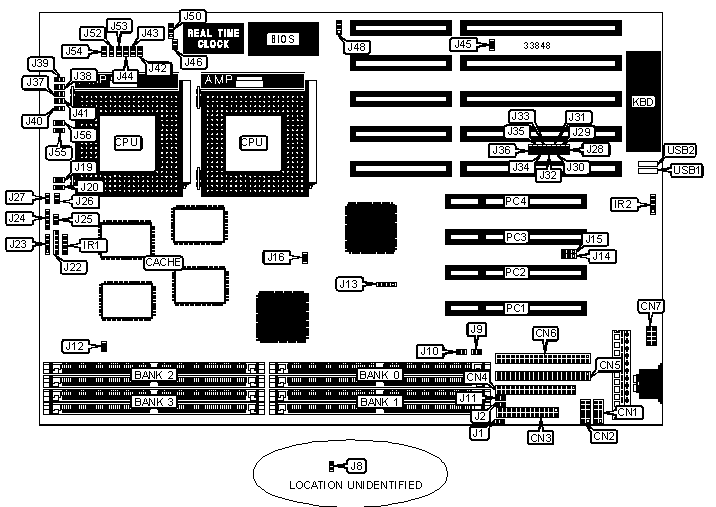

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Serial port 2 | CN1 | Power LED & | J22 |
| | | keylock | |
|-------------------+----------+------------------+----------|
| Serial port 1 | CN2 | Speaker | J23 |
|-------------------+----------+------------------+----------|
| Parallel port | CN3 | IDE interface | J24 |
| | | LED | |
|-------------------+----------+------------------+----------|
| Floppy drive | CN4 | Turbo LED | J25 |
| interface | | | |
|-------------------+----------+------------------+----------|
| IDE interface 1 | CN5 | Turbo switch | J26 |
|-------------------+----------+------------------+----------|
| IDE interface 2 | CN6 | Reset switch | J27 |
|-------------------+----------+------------------+----------|
| PS/2 mouse | CN7 | 32-bit PCI slots | PC1 - |
| interface | | | PC4 |
|-------------------+----------+------------------+----------|
| IR connector 1 | IR1 | USB connector 1 | USB1 |
|-------------------+----------+------------------+----------|
| IR connector 2 | IR2 | USB connector 2 | USB2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|---------------------------------------+-------+------------|
| » | Factory configured - do not alter | J16 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J28 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J29 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J30 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J31 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J32 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J33 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J34 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J35 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J36 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J45 | Open |
|---+-----------------------------------+-------+------------|
| » | CMOS memory normal operation | J46 | Open |
|---+-----------------------------------+-------+------------|
| | CMOS memory clear | J46 | Closed |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J48 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J55 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J56 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 8MB | (2) 1M x 32 | None | None | None |
|------+-------------+-------------+------------+------------|
| 8MB | (2) 512K x | (2) 256K x | (2) 256K x | None |
| | 32 | 32 | 32 | |
|------+-------------+-------------+------------+------------|
| 8MB | (2) 512K x | (2) 512K x | None | None |
| | 32 | 32 | | |
|------+-------------+-------------+------------+------------|
| 8MB | (2) 256K x | (2) 256K x | (2) 256K x | (2) 256K x |
| | 32 | 32 | 32 | 32 |
|------+-------------+-------------+------------+------------|
| 10MB | (2) 1M x 32 | (2) 256K x | None | None |
| | | 32 | | |
|------+-------------+-------------+------------+------------|
| 10MB | (2) 512K x | (2) 256K x | (2) 256K x | (2) 256K x |
| | 32 | 32 | 32 | 32 |
|------+-------------+-------------+------------+------------|
| 10MB | (2) 256K x | (2) 512K x | (2) 512K x | None |
| | 32 | 32 | 32 | |
|------+-------------+-------------+------------+------------|
| 10MB | (2) 256K x | (2) 1M x 32 | None | None |
| | 32 | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 12MB | (2) 1M x 32 | (2) 256K x | (2) 256K x | None |
| | | 32 | 32 | |
|------+-------------+-------------+------------+------------|
| 12MB | (2) 1M x 32 | (2) 512K x | None | None |
| | | 32 | | |
|------+-------------+-------------+------------+------------|
| 12MB | (2) 512K x | (2) 512K x | (2) 512K x | None |
| | 32 | 32 | 32 | |
|------+-------------+-------------+------------+------------|
| 12MB | (2) 512K x | (2) 1M x 32 | None | None |
| | 32 | | | |
|------+-------------+-------------+------------+------------|
| 14MB | (2) 1M x 32 | (2) 256K x | (2) 256K x | (2) 256K x |
| | | 32 | 32 | 32 |
|------+-------------+-------------+------------+------------|
| 14MB | (2) 256K x | (2) 512K x | (2) 512K x | (2) 512K x |
| | 32 | 32 | 32 | 32 |
|------+-------------+-------------+------------+------------|
| 16MB | (2) 2M x 32 | None | None | None |
|------+-------------+-------------+------------+------------|
| 16MB | (2) 1M x 32 | (2) 512K x | (2) 512K x | None |
| | | 32 | 32 | |
|------+-------------+-------------+------------+------------|
| 16MB | (2) 1M x 32 | (2) 1M x 32 | None | None |
|------+-------------+-------------+------------+------------|
| 16MB | (2) 512K x | (2) 512K x | (2) 512K x | (2) 512K x |
| | 32 | 32 | 32 | 32 |
|------+-------------+-------------+------------+------------|
| 18MB | (2) 2M x 32 | (2) 256K x | None | None |
| | | 32 | | |
|------+-------------+-------------+------------+------------|
| 18MB | (2) 256K x | (2) 1M x 32 | (2) 1M x | None |
| | 32 | | 32 | |
|------+-------------+-------------+------------+------------|
| 18MB | (2) 256K x | (2) 2M x 32 | None | None |
| | 32 | | | |
|------+-------------+-------------+------------+------------|
| 20MB | (2) 2M x 32 | (2) 256K x | (2) 256K x | None |
| | | 32 | 32 | |
|------+-------------+-------------+------------+------------|
| 20MB | (2) 2M x 32 | (2) 512K x | None | None |
| | | 32 | | |
|------+-------------+-------------+------------+------------|
| 20MB | (2) 1M x 32 | (2) 512K x | (2) 512K x | (2) 512K x |
| | | 32 | 32 | 32 |
|------+-------------+-------------+------------+------------|
| 20MB | (2) 512K x | (2) 1M x 32 | (2) 1M x | None |
| | 32 | | 32 | |
|------+-------------+-------------+------------+------------|
| 20MB | (2) 512K x | (2) 2M x 32 | None | None |
| | 32 | | | |
|------+-------------+-------------+------------+------------|
| 22MB | (2) 2M x 32 | (2) 256K x | (2) 256K x | (2) 256K x |
| | | 32 | 32 | 32 |
|------+-------------+-------------+------------+------------|
| 24MB | (2) 2M x 32 | (2) 512K x | (2) 512K x | None |
| | | 32 | 32 | |
|------+-------------+-------------+------------+------------|
| 24MB | (2) 2M x 32 | (2) 1M x 32 | None | None |
|------+-------------+-------------+------------+------------|
| 24MB | (2) 1M x 32 | (2) 1M x 32 | (2) 1M x | None |
| | | | 32 | |
|------+-------------+-------------+------------+------------|
| 24MB | (2) 1M x 32 | (2) 2M x 32 | None | None |
|------+-------------+-------------+------------+------------|
| 26MB | (2) 256K x | (2) 1M x 32 | (2) 1M x | (2) 1M x |
| | 32 | | 32 | 32 |
|------+-------------+-------------+------------+------------|
| 28MB | (2) 2M x 32 | (2) 512K x | (2) 512K x | (2) 512K x |
| | | 32 | 32 | 32 |
|------+-------------+-------------+------------+------------|
| 28MB | (2) 512K x | (2) 1M x 32 | (2) 1M x | (2) 1M x |
| | 32 | | 32 | 32 |
|------+-------------+-------------+------------+------------|
| 32MB | (2) 4M x 32 | None | None | None |
|------+-------------+-------------+------------+------------|
| 32MB | (2) 2M x 32 | (2) 1M x 32 | (2) 1M x | None |
| | | | 32 | |
|------+-------------+-------------+------------+------------|
| 32MB | (2) 2M x 32 | (2) 2M x 32 | None | None |
|------+-------------+-------------+------------+------------|
| 32MB | (2) 1M x 32 | (2) 1M x 32 | (2) 1M x | (2) 1M x |
| | | | 32 | 32 |
|------+-------------+-------------+------------+------------|
| 34MB | (2) 4M x 32 | (2) 256K x | None | None |
| | | 32 | | |
|------+-------------+-------------+------------+------------|
| 34MB | (2) 256K x | (2) 2M x 32 | (2) 2M x | None |
| | 32 | | 32 | |
|------+-------------+-------------+------------+------------|
| 34MB | (2) 256K x | (2) 4M x 32 | None | None |
| | 32 | | | |
|------+-------------+-------------+------------+------------|
| 36MB | (2) 4M x 32 | (2) 256K x | (2) 256K x | None |
| | | 32 | 32 | |
|------+-------------+-------------+------------+------------|
| 36MB | (2) 4M x 32 | (2) 512K x | None | None |
| | | 32 | | |
|------+-------------+-------------+------------+------------|
| 36MB | (2) 512K x | (2) 2M x 32 | (2) 2M x | None |
| | 32 | | 32 | |
|------+-------------+-------------+------------+------------|
| 36MB | (2) 512K x | (2) 4M x 32 | None | None |
| | 32 | | | |
|------+-------------+-------------+------------+------------|
| 38MB | (2) 4M x 32 | (2) 256K x | (2) 256K x | (2) 256K x |
| | | 32 | 32 | 32 |
|------+-------------+-------------+------------+------------|
| 40MB | (2) 4M x 32 | (2) 512K x | (2) 512K x | None |
| | | 32 | 32 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 40MB | (2) 4M x 32 | (2) 1M x | None | None |
| | | 32 | | |
|-------+-------------+------------+------------+------------|
| 40MB | (2) 2M x 32 | (2) 1M x | (2) 1M x | (2) 1M x |
| | | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 40MB | (2) 1M x 32 | (2) 2M x | (2) 2M x | None |
| | | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 40MB | (2) 1M x 32 | (2) 4M x | None | None |
| | | 32 | | |
|-------+-------------+------------+------------+------------|
| 44MB | (2) 4M x 32 | (2) 512K x | (2) 512K x | (2) 512K x |
| | | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 48MB | (2) 4M x 32 | (2) 1M x | (2) 1M x | None |
| | | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 48MB | (2) 4M x 32 | (2) 2M x | None | None |
| | | 32 | | |
|-------+-------------+------------+------------+------------|
| 48MB | (2) 2M x 32 | (2) 2M x | (2) 2M x | None |
| | | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 48MB | (2) 2M x 32 | (2) 4M x | None | None |
| | | 32 | | |
|-------+-------------+------------+------------+------------|
| 50MB | (2) 256K x | (2) 2M x | (2) 2M x | (2) 2M x |
| | 32 | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 52MB | (2) 512K x | (2) 2M x | (2) 2M x | (2) 2M x |
| | 32 | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 56MB | (2) 4M x 32 | (2) 1M x | (2) 1M x | (2) 1M x |
| | | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 56MB | (2) 1M x 32 | (2) 2M x | (2) 2M x | (2) 2M x |
| | | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 64MB | (2) 8M x 32 | None | None | None |
|-------+-------------+------------+------------+------------|
| 64MB | (2) 4M x 32 | (2) 2M x | (2) 2M x | None |
| | | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 64MB | (2) 4M x 32 | (2) 4M x | None | None |
| | | 32 | | |
|-------+-------------+------------+------------+------------|
| 64MB | (2) 2M x 32 | (2) 2M x | (2) 2M x | (2) 2M x |
| | | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 66MB | (2) 8M x 32 | (2) 256K x | None | None |
| | | 32 | | |
|-------+-------------+------------+------------+------------|
| 66MB | (2) 256K x | (2) 4M x | (2) 4M x | None |
| | 32 | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 66MB | (2) 256K x | (2) 8M x | None | None |
| | 32 | 32 | | |
|-------+-------------+------------+------------+------------|
| 68MB | (2) 8M x 32 | (2) 256K x | (2) 256K x | None |
| | | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 68MB | (2) 8M x 32 | (2) 512K x | None | None |
| | | 32 | | |
|-------+-------------+------------+------------+------------|
| 68MB | (2) 512K x | (2) 4M x | (2) 4M x | None |
| | 32 | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 68MB | (2) 512K x | (2) 8M x | None | None |
| | 32 | 32 | | |
|-------+-------------+------------+------------+------------|
| 70MB | (2) 8M x 32 | (2) 256K x | (2) 256K x | (2) 256K x |
| | | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 72MB | (2) 8M x 32 | (2) 512K x | (2) 512K x | None |
| | | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 72MB | (2) 8M x 32 | (2) 1M x | None | None |
| | | 32 | | |
|-------+-------------+------------+------------+------------|
| 72MB | (2) 1M x 32 | (2) 4M x | (2) 4M x | None |
| | | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 72MB | (2) 1M x 32 | (2) 8M x | None | None |
| | | 32 | | |
|-------+-------------+------------+------------+------------|
| 76MB | (2) 8M x 32 | (2) 512K x | (2) 512K x | (2) 512K x |
| | | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 80MB | (2) 8M x 32 | (2) 1M x | (2) 1M x | None |
| | | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 80MB | (2) 8M x 32 | (2) 2M x | None | None |
| | | 32 | | |
|-------+-------------+------------+------------+------------|
| 80MB | (2) 4M x 32 | (2) 2M x | (2) 2M x | (2) 2M x |
| | | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 80MB | (2) 2M x 32 | (2) 4M x | (2) 4M x | None |
| | | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 80MB | (2) 2M x 32 | (2) 8M x | None | None |
| | | 32 | | |
|-------+-------------+------------+------------+------------|
| 88MB | (2) 8M x 32 | (2) 1M x | (2) 1M x | (2) 1M x |
| | | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 96MB | (2) 8M x 32 | (2) 2M x | (2) 2M x | None |
| | | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 96MB | (2) 8M x 32 | (2) 4M x | None | None |
| | | 32 | | |
|-------+-------------+------------+------------+------------|
| 96MB | (2) 4M x 32 | (2) 4M x | (2) 4M x | None |
| | | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 96MB | (2) 4M x 32 | (2) 8M x | None | None |
| | | 32 | | |
|-------+-------------+------------+------------+------------|
| 98MB | (2) 256K x | (2) 4M x | (2) 4M x | (2) 4M x |
| | 32 | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 100MB | (2) 512K x | (2) 4M x | (2) 4M x | (2) 4M x |
| | 32 | 32 | 32 | 32 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 104MB | (2) 1M x 32 | (2) 4M x | (2) 4M x | (2) 4M x |
| | | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 112MB | (2) 8M x 32 | (2) 2M x | (2) 2M x | (2) 2M x |
| | | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 112MB | (2) 2M x 32 | (2) 4M x | (2) 4M x | (2) 4M x |
| | | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 128MB | (2) 16M x | None | None | None |
| | 32 | | | |
|-------+-------------+------------+------------+------------|
| 128MB | (2) 8M x 32 | (2) 4M x | (2) 4M x | None |
| | | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 128MB | (2) 8M x 32 | (2) 8M x | None | None |
| | | 32 | | |
|-------+-------------+------------+------------+------------|
| 128MB | (2) 4M x 32 | (2) 4M x | (2) 4M x | (2) 4M x |
| | | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 130MB | (2) 16M x | (2) 256K x | None | None |
| | 32 | 32 | | |
|-------+-------------+------------+------------+------------|
| 130MB | (2) 256K x | (2) 8M x | (2) 8M x | None |
| | 32 | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 130MB | (2) 256K x | (2) 16M x | None | None |
| | 32 | 32 | | |
|-------+-------------+------------+------------+------------|
| 132MB | (2) 16M x | (2) 256K x | (2) 256K x | None |
| | 32 | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 132MB | (2) 16M x | (2) 512K x | None | None |
| | 32 | 32 | | |
|-------+-------------+------------+------------+------------|
| 132MB | (2) 512K x | (2) 8M x | (2) 8M x | None |
| | 32 | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 132MB | (2) 512K x | (2) 16M x | None | None |
| | 32 | 32 | | |
|-------+-------------+------------+------------+------------|
| 134MB | (2) 16M x | (2) 256K x | (2) 256K x | (2) 256K x |
| | 32 | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 136MB | (2) 16M x | (2) 512K x | (2) 512K x | None |
| | 32 | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 136MB | (2) 16M x | (2) 1M x | None | None |
| | 32 | 32 | | |
|-------+-------------+------------+------------+------------|
| 136MB | (2) 1M x 32 | (2) 8M x | (2) 8M x | None |
| | | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 136MB | (2) 1M x 32 | (2) 16M x | None | None |
| | | 32 | | |
|-------+-------------+------------+------------+------------|
| 140MB | (2) 16M x | (2) 512K x | (2) 512K x | (2) 512K x |
| | 32 | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 144MB | (2) 16M x | (2) 1M x | (2) 1M x | None |
| | 32 | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 144MB | (2) 16M x | (2) 2M x | None | None |
| | 32 | 32 | | |
|-------+-------------+------------+------------+------------|
| 144MB | (2) 2M x 32 | (2) 8M x | (2) 8M x | None |
| | | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 144MB | (2) 2M x 32 | (2) 16M x | None | None |
| | | 32 | | |
|-------+-------------+------------+------------+------------|
| 152MB | (2) 16M x | (2) 1M x | (2) 1M x | (2) 1M x |
| | 32 | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 160MB | (2) 16M x | (2) 2M x | (2) 2M x | None |
| | 32 | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 160MB | (2) 16M x | (2) 4M x | None | None |
| | 32 | 32 | | |
|-------+-------------+------------+------------+------------|
| 160MB | (2) 8M x 32 | (2) 4M x | (2) 4M x | (2) 4M x |
| | | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 160MB | (2) 4M x 32 | (2) 8M x | (2) 8M x | None |
| | | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 160MB | (2) 4M x 32 | (2) 16M x | None | None |
| | | 32 | | |
|-------+-------------+------------+------------+------------|
| 176MB | (2) 16M x | (2) 2M x | (2) 2M x | (2) 2M x |
| | 32 | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 192MB | (2) 16M x | (2) 4M x | (2) 4M x | None |
| | 32 | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 192MB | (2) 16M x | (2) 8M x | None | None |
| | 32 | 32 | | |
|-------+-------------+------------+------------+------------|
| 192MB | (2) 8M x 32 | (2) 8M x | (2) 8M x | None |
| | | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 192MB | (2) 8M x 32 | (2) 16M x | None | None |
| | | 32 | | |
|-------+-------------+------------+------------+------------|
| 194MB | (2) 256K x | (2) 8M x | (2) 8M x | (2) 8M x |
| | 32 | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 196MB | (2) 512K x | (2) 8M x | (2) 8M x | (2) 8M x |
| | 32 | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 200MB | (2) 1M x 32 | (2) 8M x | (2) 8M x | (2) 8M x |
| | | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 208MB | (2) 2M x 32 | (2) 8M x | (2) 8M x | (2) 8M x |
| | | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 224MB | (2) 16M x | (2) 4M x | (2) 4M x | (2) 4M x |
| | 32 | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 224MB | (2) 4M x 32 | (2) 8M x | (2) 8M x | (2) 8M x |
| | | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 256MB | (2) 16M x | (2) 8M x | (2) 8M x | None |
| | 32 | 32 | 32 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 256MB | (2) 16M x | (2) 16M x | None | None |
| | 32 | 32 | | |
|-------+-------------+------------+------------+------------|
| 256MB | (2) 8M x 32 | (2) 8M x | (2) 8M x | (2) 8M x |
| | | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 258MB | (2) 256K x | (2) 16M x | (2) 16M x | None |
| | 32 | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 260MB | (2) 512K x | (2) 16M x | (2) 16M x | None |
| | 32 | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 264MB | (2) 1M x 32 | (2) 16M x | (2) 16M x | None |
| | | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 272MB | (2) 2M x 32 | (2) 16M x | (2) 16M x | None |
| | | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 288MB | (2) 4M x 32 | (2) 16M x | (2) 16M x | None |
| | | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 320MB | (2) 16M x | (2) 8M x | (2) 8M x | (2) 8M x |
| | 32 | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 320MB | (2) 8M x 32 | (2) 16M x | (2) 16M x | None |
| | | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 384MB | (2) 16M x | (2) 16M x | (2) 16M x | None |
| | 32 | 32 | 32 | |
|-------+-------------+------------+------------+------------|
| 386MB | (2) 256K x | (2) 16M x | (2) 16M x | (2) 16M x |
| | 32 | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 388MB | (2) 512K x | (2) 16M x | (2) 16M x | (2) 16M x |
| | 32 | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 392MB | (2) 1M x 32 | (2) 16M x | (2) 16M x | (2) 16M x |
| | | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 400MB | (2) 2M x 32 | (2) 16M x | (2) 16M x | (2) 16M x |
| | | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 416MB | (2) 4M x 32 | (2) 16M x | (2) 16M x | (2) 16M x |
| | | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 448MB | (2) 8M x 32 | (2) 16M x | (2) 16M x | (2) 16M x |
| | | 32 | 32 | 32 |
|-------+-------------+------------+------------+------------|
| 512MB | (2) 16M x | (2) 16M x | (2) 16M x | (2) 16M x |
| | 32 | 32 | 32 | 32 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. Board also accepts x 36 |
| SIMMs. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM VOLTAGE CONFIGURATION |
|------------------------------------------------------------|
|Voltage | J1 | J2 | J8 | J9 | J10 | J11 | J12 |
|--------+-------+-------+-------+------+------+------+------|
| |3.3v | Open | Open |Closed |Closed|Closed| Open | Open |
|--+-----+-------+-------+-------+------+------+------+------|
|» | 5v |Closed |Closed | Open | Open | Open |Closed|Closed|
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|---------------------------+--------------------------------|
| 512KB | (4) 32K x 32 |
|------------------------------------------------------------|
| Note: Bank 0 is factory installed and is not configurable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU | Clock | Multiplier | J13 | J19 | J20 |
| speed | speed | | | | |
|---------+--------+------------+----------+--------+--------|
| 75MHz | 50MHz | 1.5x | 1 & 2, 3 | Open | Open |
| | | | & 4 | | |
|---------+--------+------------+----------+--------+--------|
| 90MHz | 60MHz | 1.5x | 3 & 4 | Open | Open |
|---------+--------+------------+----------+--------+--------|
| 100MHz | 66MHz | 1.5x | 1 & 2 | Open | Open |
|---------+--------+------------+----------+--------+--------|
| 120MHz | 60MHz | 2x | 3 & 4 | Closed | Open |
|---------+--------+------------+----------+--------+--------|
| 133MHz | 66MHz | 2x | 1 & 2 | Closed | Open |
|---------+--------+------------+----------+--------+--------|
| 150MHz | 60MHz | 2.5x | 3 & 4 | Closed | Closed |
|---------+--------+------------+----------+--------+--------|
| 166MHz | 66MHz | 2.5x | 1 & 2 | Closed | Closed |
|---------+--------+------------+----------+--------+--------|
| 200MHz | 66MHz | 3x | 1 & 2 | Open | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE SELECTION |
|------------------------------------------------------------|
| Type | J50 |
|-------------------------------+----------------------------|
| Single CPU installed | Pins 1 & 2 closed |
|-------------------------------+----------------------------|
| Dual CPUs installed | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE SELECTION (P54C) |
|------------------------------------------------------------|
| Voltage | J37 | J38 | J39 | J40 | J41 |
|----------+---------+---------+---------+---------+---------|
| 3.3v | Closed | Open | Open | Closed | Closed |
|----------+---------+---------+---------+---------+---------|
| 3.5v | Open | Open | Closed | Closed | Closed |
|----------+---------+---------+---------+---------+---------|
| 3.6v | Open | Closed | Open | Closed | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE SELECTION (P54C, CON’T) |
|------------------------------------------------------------|
| Voltage | J42 | J43 | J44 | J52 | J53 | J54 |
|---------+--------+--------+-------+--------+-------+-------|
| 3.3v | Open | Open | Open | Closed | Open | Open |
|---------+--------+--------+-------+--------+-------+-------|
| 3.5v | Open | Open | Open | Closed | Open | Open |
|---------+--------+--------+-------+--------+-------+-------|
| 3.6v | Open | Open | Open | Closed | Open | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE SELECTION (P55C) |
|------------------------------------------------------------|
|Voltage| J40 | J41 | J42 | J43 | J44 | J52 | J53 | J54 |
|-------+-----+-----+------+------+------+-----+------+------|
| 2.65v |Open |Open | Open |Closed| Open |Open |Closed|Closed|
|-------+-----+-----+------+------+------+-----+------+------|
| 2.85v |Open |Open | Open | Open |Closed|Open |Closed|Closed|
|-------+-----+-----+------+------+------+-----+------+------|
| 3v |Open |Open |Closed| Open | Open |Open |Closed|Closed|
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT SELECTION |
|------------------------------------------------------------|
| Setting | J14 | J15 |
|----------------------------------+------------+------------|
| » | Serial port set as COM1 & | Pins 1 & 2 | Pins 1 & 2 |
| | COM2 | closed | closed |
|---+------------------------------+------------+------------|
| | IR connector | Pins 2 & 3 | Pins 2 & 3 |
| | | closed | closed |
+------------------------------------------------------------+
