# SOYO COMPUTER CO., LTD.
6FB
Processor Pentium Pro
Processor Speed 150/166/180/200MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 512MB (EDO supported)
Memory
Maximum Video None
Memory
Cache 256/512KB (located on Pentium Pro CPU)
BIOS Award
Dimensions 254mm x 218mm
I/O Options 32-bit PCI slots (5), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, PS/2 mouse port, serial ports
(2), IR connector, VRM connector, USB
connector
NPU Options None
IMG IMG 1
+------------------------------------------------------------+

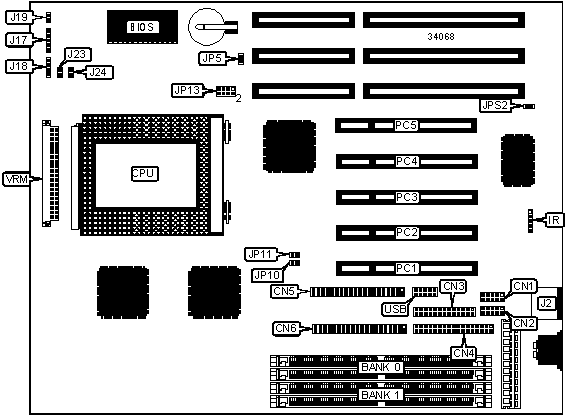

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Serial port 2 | CN1 | Power LED & | J17 |
| | | keylock | |
|-------------------+----------+------------------+----------|
| Serial port 1 | CN2 | Speaker | J18 |
|-------------------+----------+------------------+----------|
| Parallel port | CN3 | Reset switch | J19 |
|-------------------+----------+------------------+----------|
| Floppy drive | CN4 | Green PC | J23 |
| interface | | connector | |
|-------------------+----------+------------------+----------|
| IDE interface 1 | CN5 | IDE interface | J24 |
| | | LED | |
|-------------------+----------+------------------+----------|
| IDE interface 2 | CN6 | 32-bit PCI slots | PC1 – |
| | | | PC5 |
|-------------------+----------+------------------+----------|
| IR connector | IR | USB connector | USB |
|-------------------+----------+------------------+----------|
| PS/2 mouse port | J2 | VRM connector | VRM |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+---------+------------|
| » | CMOS memory normal operation | JP5 | Open |
|---+---------------------------------+---------+------------|
| | CMOS memory clear | JP5 | Closed |
|---+---------------------------------+---------+------------|
| » | PS/2 mouse disabled | JPS2 | Open |
|---+---------------------------------+---------+------------|
| | PS/2 mouse enabled | JPS2 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|--------------+------------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|--------------+------------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|--------------+------------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|--------------+------------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|--------------+------------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|--------------+------------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|--------------+------------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|--------------+------------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|--------------+------------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|--------------+------------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|--------------+------------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|--------------+------------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|--------------+------------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|--------------+------------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|--------------+------------------------+--------------------|
| 128MB | (2) 16M x 36 | None |
|--------------+------------------------+--------------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 |
|--------------+------------------------+--------------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 |
|--------------+------------------------+--------------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 |
|--------------+------------------------+--------------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 |
|--------------+------------------------+--------------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. Board also accepts x 32 |
| SIMMs. Banks are interchangeable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium Pro CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU | Clock | Multiplier | JP10 | JP11 | JP13 |
| speed | speed | | | | |
|---------+--------+------------+--------+--------+----------|
| 150MHz | 60MHz | 2.5x | Closed | Open | 3 & 4, 5 |
| | | | | | & 6, 7 & |
| | | | | | 8 |
|---------+--------+------------+--------+--------+----------|
| 166MHz | 66MHz | 2.5x | Open | Closed | 3 & 4, 5 |
| | | | | | & 6, 7 & |
| | | | | | 8 |
|---------+--------+------------+--------+--------+----------|
| 180MHz | 60MHz | 3x | Closed | Open | 1 & 2, 5 |
| | | | | | & 6, 7 & |
| | | | | | 8 |
|---------+--------+------------+--------+--------+----------|
| 200MHz | 66MHz | 3x | Open | Closed | 1 & 2, 5 |
| | | | | | & 6, 7 & |
| | | | | | 8 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
