# TEXAS MICROSYSTEMS, INC.
PV5000HX
Processor Pentium
Processor Speed 75/90/100/120/133/150/166/180/200MHz
Chip Set Unidentified
Video Chip Set Unidentified
Maximum Onboard 256MB (EDO supported)
Memory
Maximum Video Unidentified
Memory
Cache 256/512KB
BIOS Unidentified
Dimensions 305mm x 244mm
I/O Options (CPU) Floppy drive interface, IDE interface, SCSI
interface, parallel port, PS/2 mouse
interface, serial ports (2), cache slot
I/O Options 32-bit PCI slots (6), CPU slot
(Backplane)
NPU Options None

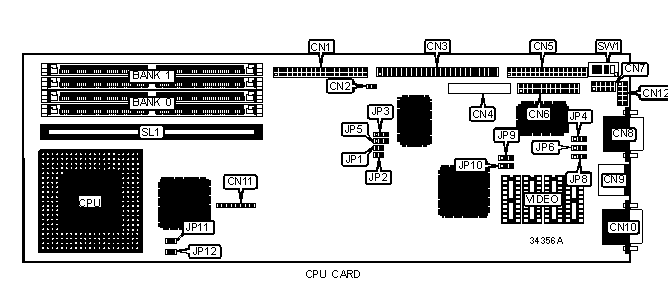

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| IDE interface | CN1 | VGA port | CN8 |
|-------------------+----------+------------------+----------|
| IDE/SCSI | CN2 | PS/2 mouse port | CN9 |
| interface LED | | | |
|-------------------+----------+------------------+----------|
| SCSI interface | CN3 | Serial port 1 | CN10 |
|-------------------+----------+------------------+----------|
| Flat panel | CN4 | AT keyboard | CN11 |
| connector | | connector | |
|-------------------+----------+------------------+----------|
| Floppy drive | CN5 | VGA interface | CN12 |
| interface | | | |
|-------------------+----------+------------------+----------|
| Parallel port | CN6 | Cache slot | SL1 |
|-------------------+----------+------------------+----------|
| Serial port 2 | CN7 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|---------------------------------------+-------+------------|
| » | Shift clock panel select normal | JP3 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Shift clock panel select inverted | JP3 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | PS/2 IRQ 12 enabled | JP5 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Next Step OS used | JP5 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | LCD bias select negative | JP9 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | LCD bias select positive | JP9 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Panel interface voltage select 5v | JP10 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Panel interface voltage select | JP10 | Pins 2 & 3 |
| | 3.3v | | closed |
|---+-----------------------------------+-------+------------|
| » | Monitor type select color | SW1/1 | On |
|---+-----------------------------------+-------+------------|
| | Monitor type select monochrome | SW1/1 | Off |
|---+-----------------------------------+-------+------------|
| » | Flash BIOS enabled | SW1/2 | Off |
|---+-----------------------------------+-------+------------|
| | Flash BIOS disabled | SW1/2 | On |
|---+-----------------------------------+-------+------------|
| » | CMOS memory normal operation | SW1/3 | Off |
|---+-----------------------------------+-------+------------|
| | CMOS memory clear | SW1/3 | On |
|---+-----------------------------------+-------+------------|
| » | I/O address select 270H | SW1/4 | Off |
|---+-----------------------------------+-------+------------|
| | I/O address select 370H | SW1/4 | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (EDO MEMORY) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 32 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 32 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 32 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 32 | (2) 2M x 32 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 32 | (2) 2M x 32 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 32 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 32 | (2) 4M x 32 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 32 | (2) 2M x 32 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 32 | (2) 4M x 32 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 32 | (2) 8M x 32 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (FPM MEMORY) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (FPM MEMORY CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 16M x 36 | None |
|------------------+--------------------+--------------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | SL1 |
|----------------------------+-------------------------------|
| 256KB | 256KB module installed |
|----------------------------+-------------------------------|
| 512KB | 512KB module installed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Note: The size of the video memory is unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
|CPU speed|Clock speed|Multiplier| JP1 | JP2 | JP11 | JP12 |
|---------+-----------+----------+------+------+------+------|
| 75MHz | 50MHz | 1.5x |Closed|Closed| N/A | N/A |
|---------+-----------+----------+------+------+------+------|
| 90MHz | 60MHz | 1.5x |Closed| Open | N/A | N/A |
|---------+-----------+----------+------+------+------+------|
| 100MHz | 66MHz | 1.5x | Open |Closed| Open | Open |
|---------+-----------+----------+------+------+------+------|
| 120MHz | 60MHz | 2x |Closed| Open | N/A | N/A |
|---------+-----------+----------+------+------+------+------|
| 133MHz | 66MHz | 2x | Open |Closed| Open |Closed|
|---------+-----------+----------+------+------+------+------|
| 150MHz | 60MHz | 2.5x |Closed| Open | N/A | N/A |
|---------+-----------+----------+------+------+------+------|
| 166MHz | 66MHz | 2.5x | Open |Closed|Closed|Closed|
|---------+-----------+----------+------+------+------+------|
| 180MHz | 60MHz | 3x |Closed| Open | N/A | N/A |
|---------+-----------+----------+------+------+------+------|
| 200MHz | 66MHz | 3x | Open |Closed|Closed| Open |
|------------------------------------------------------------|
|Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 2 SELECTION |
|------------------------------------------------------------|
| Setting | JP4 | JP6 | JP8 |
|-----------+----------------+---------------+---------------|
| » | RS232 | Pins 2 & 3 | Pins 2 & 3 | Pins 2 & 3 |
| | | closed | closed | closed |
|---+-------+----------------+---------------+---------------|
| | RS422 | Pins 1 & 2 | Pins 1 & 2 | Pins 1 & 2 |
| | | closed | closed | closed |
|---+-------+----------------+---------------+---------------|
| | RS485 | Pins 1 & 2 | Pins 1 & 2 | Pins 1 & 2 |
| | | closed | closed | closed |
+------------------------------------------------------------+
IMG IMG 2
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------------+----------+-------------+----------|
| Front keyboard | JP4 | Front panel | JP8 |
| connector | | connector | |
|------------------------+----------+-------------+----------|
| Rear keyboard | JP5 | CPU slot | SL1 |
| connector | | | |
|------------------------+----------+-------------+----------|
| CPU interface | JP6 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | JP1 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP2 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP3 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP7 | Unidentified |
| | alter (PCI J tag) | | |
+------------------------------------------------------------+
