# TMC RESEARCH CORPORATION
AI5TT (VER. 1.1)
Processor CX 6X86L/CX 686MX/AM K5/AM K6/Pentium
Processor Speed 90/100/120/133/150/166/200/233MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 256MB (EDO supported)
Memory
Maximum Video None
Memory
Cache 512KB
BIOS Unidentified
Dimensions 254mm x 218mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
IDE interfaces (2), parallel port, PS/2 mouse
port, serial ports (2), IR connector, USB
connectors (2), ATX power connector
NPU Options None

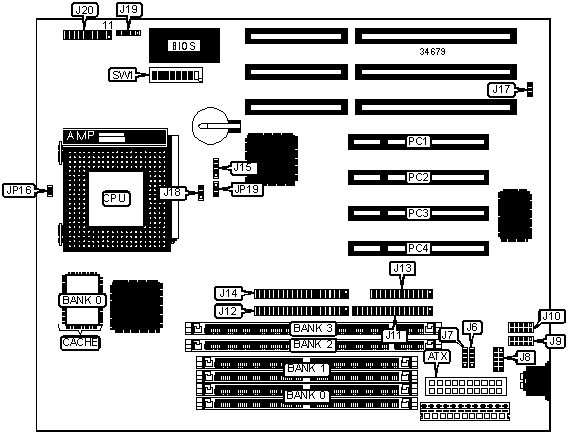

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+----------------+-------------|
| ATX power | ATX | Chassis fan | J17 |
| connector | | power | |
|------------------+----------+----------------+-------------|
| USB connector | J6 | CPU fan power | J18 |
|------------------+----------+----------------+-------------|
| USB connector | J7 | IR connector | J19 |
|------------------+----------+----------------+-------------|
| PS/2 mouse port | J8 | Speaker | J20/pins 1 |
| | | | - 4 |
|------------------+----------+----------------+-------------|
| Serial port 1 | J9 | Green PC | J20/pins 6 |
| | | connector | & 16 |
|------------------+----------+----------------+-------------|
| Serial port 2 | J10 | Turbo LED | J20/pins 8 |
| | | | & 18 |
|------------------+----------+----------------+-------------|
| Floppy drive | J11 | Reset switch | J20/pins 9 |
| interface | | | & 19 |
|------------------+----------+----------------+-------------|
| IDE interface 1 | J12 | IDE interface | J20/pins 10 |
| | | LED | & 20 |
|------------------+----------+----------------+-------------|
| Parallel port | J13 | Power LED & | J20/pins 11 |
| | | keylock | - 15 |
|------------------+----------+----------------+-------------|
| IDE interface 2 | J14 | 32-bit PCI | PC1 – PC4 |
| | | slots | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| | Battery type select internal | J15 | Pins 3 & 4 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Battery type select external | J15 | Open |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP16 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | CMOS memory normal operation | JP19 | Open |
|---+---------------------------------+-------+--------------|
| | CMOS memory clear | JP19 | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 16M x 36 | None |
|------------------+--------------------+--------------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 2 | Bank 3 |
|------------------+--------------------+--------------------|
| 8MB | (1) 1M x 64 | None |
|------------------+--------------------+--------------------|
| 16MB | (1) 2M x 64 | None |
|------------------+--------------------+--------------------|
| 16MB | (1) 1M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 24MB | (1) 2M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 32MB | (1) 4M x 64 | None |
|------------------+--------------------+--------------------|
| 32MB | (1) 2M x 64 | (1) 2M x 64 |
|------------------+--------------------+--------------------|
| 40MB | (1) 4M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 48MB | (1) 4M x 64 | (1) 2M x 64 |
|------------------+--------------------+--------------------|
| 64MB | (1) 8M x 64 | None |
|------------------+--------------------+--------------------|
| 64MB | (1) 4M x 64 | (1) 4M x 64 |
|------------------+--------------------+--------------------|
| 72MB | (1) 8M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 80MB | (1) 8M x 64 | (1) 2M x 64 |
|------------------+--------------------+--------------------|
| 96MB | (1) 8M x 64 | (1) 4M x 64 |
|------------------+--------------------+--------------------|
| 128MB | (1) 8M x 64 | (1) 8M x 64 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|----------------------------+-------------------------------|
| 512KB | (1) 64K x 64 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (CX 6X86L) |
|------------------------------------------------------------|
|CPU speed|Clock speed|Multiplier|SW1/1 |SW1/2 |SW1/3 |SW1/4 |
|---------+-----------+----------+------+------+------+------|
| 150MHz | 60MHz | 2x | On | On | On | Off |
|---------+-----------+----------+------+------+------+------|
| 166MHz | 66MHz | 2x | Off | Off | On | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (CX 6X86MX) |
|------------------------------------------------------------|
|CPU speed|Clock speed|Multiplier|SW1/1 |SW1/2 |SW1/3 |SW1/4 |
|---------+-----------+----------+------+------+------+------|
| 166MHz | 60MHz | 2.5x | On | On | On | On |
|---------+-----------+----------+------+------+------+------|
| 200MHz | 66MHz | 2.5x | Off | Off | On | On |
|---------+-----------+----------+------+------+------+------|
| 233MHz | 66MHz | 3x | Off | Off | Off | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (AM K5) |
|------------------------------------------------------------|
|CPU speed|Clock speed|Multiplier|SW1/1 |SW1/2 |SW1/3 |SW1/4 |
|---------+-----------+----------+------+------+------+------|
| 100MHz | 66MHz | 1.5x | Off | Off | Off | Off |
|---------+-----------+----------+------+------+------+------|
| 133MHz | 66MHz | 1.5x | Off | Off | On | Off |
|---------+-----------+----------+------+------+------+------|
| 166MHz | 66MHz | 1.75x | Off | Off | On | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (AM K6) |
|------------------------------------------------------------|
|CPU speed|Clock speed|Multiplier|SW1/1 |SW1/2 |SW1/3 |SW1/4 |
|---------+-----------+----------+------+------+------+------|
| 166MHz | 66MHz | 1.75x | Off | Off | On | On |
|---------+-----------+----------+------+------+------+------|
| 200MHz | 66MHz | 3x | Off | Off | Off | On |
|---------+-----------+----------+------+------+------+------|
| 233MHz | 66MHz | 3.5x | Off | Off | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (INTEL) |
|------------------------------------------------------------|
|CPU speed|Clock speed|Multiplier|SW1/1 |SW1/2 |SW1/3 |SW1/4 |
|---------+-----------+----------+------+------+------+------|
| 90MHz | 60MHz | 1.5x | On | On | Off | Off |
|---------+-----------+----------+------+------+------+------|
| 100MHz | 66MHz | 1.5x | Off | Off | Off | Off |
|---------+-----------+----------+------+------+------+------|
| 120MHz | 60MHz | 2x | On | On | On | Off |
|---------+-----------+----------+------+------+------+------|
| 133MHz | 66MHz | 2x | Off | Off | On | Off |
|---------+-----------+----------+------+------+------+------|
| 150MHz | 60MHz | 2.5x | On | On | On | On |
|---------+-----------+----------+------+------+------+------|
| 166MHz | 66MHz | 2.5x | Off | Off | On | On |
|---------+-----------+----------+------+------+------+------|
| 200MHz | 66MHz | 3x | Off | Off | Off | On |
|---------+-----------+----------+------+------+------+------|
| 233MHz | 66MHz | 3.5x | Off | Off | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE SELECTION (SINGLE) |
|------------------------------------------------------------|
| Voltage | SW1/5 | SW1/6 | SW1/7 | SW1/8 |
|------------+-----------+-----------+-----------+-----------|
| 3.5v | On | On | On | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE SELECTION (DUAL) |
|------------------------------------------------------------|
| Voltage | V core | SW1/5 | SW1/6 | SW1/7 | SW1/8 |
|----------+----------+---------+---------+---------+--------|
| 3.3v | 2.1v | On | Off | Off | Off |
|----------+----------+---------+---------+---------+--------|
| 3.3v | 2.6v | Off | On | On | Off |
|----------+----------+---------+---------+---------+--------|
| 3.3v | 2.7v | On | On | On | Off |
|----------+----------+---------+---------+---------+--------|
| 3.3v | 2.8v | Off | Off | Off | On |
|----------+----------+---------+---------+---------+--------|
| 3.3v | 2.9v | On | Off | Off | On |
|----------+----------+---------+---------+---------+--------|
| 3.3v | 3.0v | Off | On | Off | On |
|----------+----------+---------+---------+---------+--------|
| 3.3v | 3.2v | Off | Off | On | On |
|----------+----------+---------+---------+---------+--------|
| 3.3v | 3.5v | On | On | On | On |
+------------------------------------------------------------+
