# SHUTTLE COMPUTER INTERNATIONAL, INC.
HOT-635
Device Type Mainboard
Processor Pentium II
Processor Speed 233/266/300/333MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 512MB (EDO & SDRAM supported)
Memory
Maximum Video None
Memory
Cache 256/512KB (located on Pentium II CPU)
BIOS Award
Dimensions 305mm x 244mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
IDE interfaces (2), SCSI-2 interface, Ultra
SCSI Wide interface, parallel port, PS/2
mouse port, serial ports (2), IR connector,
USB connectors (2), ATX power connector, AGP
slot
NPU Options None

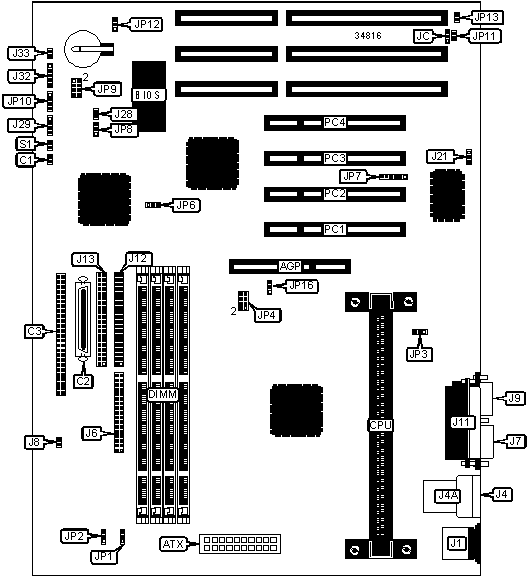

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| AGP slot | AGP | IDE interface 2 | J12 |
|-------------------+----------+------------------+----------|
| ATX power | ATX | IDE interface 1 | J13 |
| connector | | | |
|-------------------+----------+------------------+----------|
| SCSI interface | C1 | IDE interface | J29 |
| LED | | LED | |
|-------------------+----------+------------------+----------|
| Ultra SCSI Wide | C2 | Power LED & | J32 |
| interface | | keylock | |
|-------------------+----------+------------------+----------|
| SCSI-2 interface | C3 | Reset switch | J33 |
|-------------------+----------+------------------+----------|
| PS/2 mouse port | J1 | CPU fan power | JP1 |
|-------------------+----------+------------------+----------|
| USB connector 1 | J4 | Chassis fan | JP2 |
| | | power | |
|-------------------+----------+------------------+----------|
| USB connector 2 | J4A | IR connector | JP7 |
|-------------------+----------+------------------+----------|
| Floppy drive | J6 | Speaker | JP10 |
| interface | | | |
|-------------------+----------+------------------+----------|
| Serial port 2 | J7 | AGP fan power | JP16 |
|-------------------+----------+------------------+----------|
| Serial port 1 | J9 | 32-bit PCI slots | PC1 – |
| | | | PC4 |
|-------------------+----------+------------------+----------|
| Parallel port | J11 | Soft off power | S1 |
| | | supply | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Termination enabled | J8 | Open |
|---+---------------------------------+-------+--------------|
| | Termination disabled | J8 | Closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J21 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J28 | Pins 2 & 3 |
| | alter | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JC | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP3 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Seagate hard drive not | JP6 | Pins 1 & 2 |
| | installed | | closed |
|---+---------------------------------+-------+--------------|
| | Seagate hard drive installed | JP6 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP8 | Open |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP11 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | CMOS memory normal operation | JP12 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | CMOS memory clear | JP12 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP13 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 8MB | (1) 1M x 64 | None | None | None |
|-------+-------------+------------+------------+------------|
| 16MB | (1) 2M x 64 | None | None | None |
|-------+-------------+------------+------------+------------|
| 16MB | (1) 1M x 64 | (1) 1M x | None | None |
| | | 64 | | |
|-------+-------------+------------+------------+------------|
| 24MB | (1) 2M x 64 | (1) 1M x | None | None |
| | | 64 | | |
|-------+-------------+------------+------------+------------|
| 24MB | (1) 1M x 64 | (1) 1M x | (1) 1M x | None |
| | | 64 | 64 | |
|-------+-------------+------------+------------+------------|
| 32MB | (1) 4M x 64 | None | None | None |
|-------+-------------+------------+------------+------------|
| 32MB | (1) 2M x 64 | (1) 2M x | None | None |
| | | 64 | | |
|-------+-------------+------------+------------+------------|
| 32MB | (1) 1M x 64 | (1) 1M x | (1) 1M x | (1) 1M x |
| | | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 40MB | (1) 4M x 64 | (1) 1M x | None | None |
| | | 64 | | |
|-------+-------------+------------+------------+------------|
| 48MB | (1) 4M x 64 | (1) 2M x | None | None |
| | | 64 | | |
|-------+-------------+------------+------------+------------|
| 48MB | (1) 2M x 64 | (1) 2M x | (1) 2M x | None |
| | | 64 | 64 | |
|-------+-------------+------------+------------+------------|
| 64MB | (1) 2M x 64 | (1) 2M x | (1) 2M x | (1) 2M x |
| | | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 64MB | (1) 8M x 64 | None | None | None |
|-------+-------------+------------+------------+------------|
| 64MB | (1) 4M x 64 | (1) 4M x | None | None |
| | | 64 | | |
|-------+-------------+------------+------------+------------|
| 72MB | (1) 8M x 64 | (1) 1M x | None | None |
| | | 64 | | |
|-------+-------------+------------+------------+------------|
| 80MB | (1) 8M x 64 | (1) 2M x | None | None |
| | | 64 | | |
|-------+-------------+------------+------------+------------|
| 96MB | (1) 8M x 64 | (1) 4M x | None | None |
| | | 64 | | |
|-------+-------------+------------+------------+------------|
| 96MB | (1) 4M x 64 | (1) 4M x | (1) 4M x | None |
| | | 64 | 64 | |
|-------+-------------+------------+------------+------------|
| 128MB | (1) 16M x | None | None | None |
| | 64 | | | |
|-------+-------------+------------+------------+------------|
| 128MB | (1) 8M x 64 | (1) 8M x | None | None |
| | | 64 | | |
|-------+-------------+------------+------------+------------|
| 128MB | (1) 4M x 64 | (1) 4M x | (1) 4M x | (1) 4M x |
| | | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 136MB | (1) 16M x | (1) 1M x | None | None |
| | 64 | 64 | | |
|-------+-------------+------------+------------+------------|
| 144MB | (1) 16M x | (1) 2M x | None | None |
| | 64 | 64 | | |
|-------+-------------+------------+------------+------------|
| 152MB | (1) 16M x | (1) 1M x | (1) 1M x | (1) 1M x |
| | 64 | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 160MB | (1) 16M x | (1) 4M x | None | None |
| | 64 | 64 | | |
|-------+-------------+------------+------------+------------|
| 176MB | (1) 16M x | (1) 2M x | (1) 2M x | (1) 2M x |
| | 64 | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 192MB | (1) 16M x | (1) 8M x | None | None |
| | 64 | 64 | | |
|-------+-------------+------------+------------+------------|
| 192MB | (1) 8M x 64 | (1) 8M x | (1) 8M x | None |
| | | 64 | 64 | |
|-------+-------------+------------+------------+------------|
| 224MB | (1) 16M x | (1) 4M x | (1) 4M x | (1) 4M x |
| | 64 | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 256MB | (1) 16M x | (1) 16M x | None | None |
| | 64 | 64 | | |
|-------+-------------+------------+------------+------------|
| 256MB | (1) 8M x 64 | (1) 8M x | (1) 8M x | (1) 8M x |
| | | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 272MB | (1) 16M x | (1) 16M x | (1) 1M x | (1) 1M x |
| | 64 | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 288MB | (1) 16M x | (1) 16M x | (1) 2M x | (1) 2M x |
| | 64 | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 320MB | (1) 16M x | (1) 16M x | (1) 4M x | (1) 4M x |
| | 64 | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 320MB | (1) 16M x | (1) 8M x | (1) 8M x | (1) 8M x |
| | 64 | 64 | 64 | 64 |
|-------+-------------+------------+------------+------------|
| 384MB | (1) 16M x | (1) 16M x | (1) 16M x | None |
| | 64 | 64 | 64 | |
|-------+-------------+------------+------------+------------|
| 512MB | (1) 16M x | (1) 16M x | (1) 16M x | (1) 16M x |
| | 64 | 64 | 64 | 64 |
|------------------------------------------------------------|
| Note: Board accepts EDO & SDRAM memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium II CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU speed | Clock speed | Multiplier | JP4 | JP9 |
|-----------+-------------+------------+------+--------------|
| 233MHz | 66MHz | 3.5x | Open | 1 & 2, 5 & 6 |
|-----------+-------------+------------+------+--------------|
| 266MHz | 66MHz | 4x | Open | 3 & 4, 5 & |
| | | | | 6, 7 & 8 |
|-----------+-------------+------------+------+--------------|
| 300MHz | 66MHz | 4.5x | Open | 3 & 4, 5 & 6 |
|-----------+-------------+------------+------+--------------|
| 333MHz | 66MHz | 5x | Open | 5 & 6, 7 & 8 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
