# TECHNOLAND, INC.
PEAK 610SR
Device Type Single board computer
Processor Pentium Pro
Processor Speed 150/166/180/200MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 256MB (EDO supported)
Memory
Maximum Video None
Memory
Cache 256/512KB (located on Pentium Pro CPU)
BIOS Award
Dimensions 338mm x 122mm
I/O Options Floppy drive interface, IDE interfaces (2),
SCSI interface, SCSI adapter connector,
parallel port, PS/2 mouse interface, serial
ports (3), VRM connector, USB connector
NPU Options None

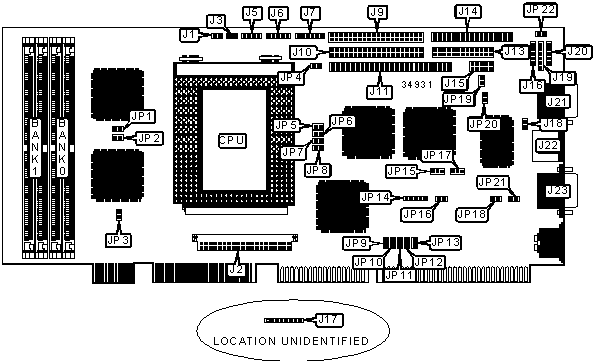

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| IDE interface LED | J1 | F3/F4 connector | J16 |
|-------------------+----------+------------------+----------|
| VRM connector | J2 | Serial port 2 | J17 |
| | | internal | |
|-------------------+----------+------------------+----------|
| Reset switch | J3 | Switching card | J18 |
| | | mouse connector | |
|-------------------+----------+------------------+----------|
| Speaker | J5 | USB connector | J19 |
|-------------------+----------+------------------+----------|
| Power LED & | J6 | Auxiliary | J20 |
| keylock | | keyboard | |
| | | connector | |
|-------------------+----------+------------------+----------|
| 3.3v power | J7 | Serial port 2 | J21 |
| | | external | |
|-------------------+----------+------------------+----------|
| IDE interface 1 | J9 | PS/2 mouse | J22 |
| | | interface | |
|-------------------+----------+------------------+----------|
| IDE interface 2 | J10 | Serial port 1 | J23 |
|-------------------+----------+------------------+----------|
| SCSI interface | J11 | Green PC | JP3 |
| | | connector | |
|-------------------+----------+------------------+----------|
| Parallel port | J13 | CPU fan power | JP4 |
|-------------------+----------+------------------+----------|
| Floppy drive | J14 | SCSI interface | JP22 |
| interface | | LED | |
|-------------------+----------+------------------+----------|
| SCSI adapter | J15 | | |
| connector | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | SCSI bus select 8-bit | JP5 | Open |
|---+---------------------------------+-------+--------------|
| | SCSI bus select 16-bit | JP5 | Closed |
|---+---------------------------------+-------+--------------|
| » | ISA CLK vs PCI /4 | JP13 | Closed |
|---+---------------------------------+-------+--------------|
| | ISA CLK vs PCI /3 | JP13 | Open |
|---+---------------------------------+-------+--------------|
| » | BIOS type select EPROM | JP14 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | BIOS type select flash | JP14 | Pins 1 & 2, |
| | | | 4 & 5 closed |
|---+---------------------------------+-------+--------------|
| » | Monitor type select color | JP16 | Closed |
|---+---------------------------------+-------+--------------|
| | Monitor type select monochrome | JP16 | Open |
|---+---------------------------------+-------+--------------|
| » | CMOS memory normal operation | JP18 | Open |
|---+---------------------------------+-------+--------------|
| | CMOS memory clear | JP18 | Closed |
|---+---------------------------------+-------+--------------|
| » | SCSI termination enabled | JP19 | Closed |
|---+---------------------------------+-------+--------------|
| | SCSI termination diabled | JP19 | Open |
|---+---------------------------------+-------+--------------|
| » | On board I/O enabled | JP20 | Open |
|---+---------------------------------+-------+--------------|
| | On board I/O disabled | JP20 | Closed |
|---+---------------------------------+-------+--------------|
| » | Watchdog timer port select port | JP21 | Open |
| | F2 | | |
|---+---------------------------------+-------+--------------|
| | Watchdog timer port select port | JP21 | Closed |
| | F6 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 16M x 36 | None |
|------------------+--------------------+--------------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium Pro CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU |Clock |Multiplier| JP1 | JP2 | JP6 | JP7 | JP8 |
| speed |speed | | | | | | |
|-------+------+----------+------+------+------+------+------|
|150MHz |60MHz | 2.5x |Closed| Open |Closed| Open |Closed|
|-------+------+----------+------+------+------+------+------|
|166MHz |66MHz | 2.5x | Open |Closed|Closed|Closed|Closed|
|-------+------+----------+------+------+------+------+------|
|180MHz |60MHz | 3x |Closed| Open |Closed| Open |Closed|
|-------+------+----------+------+------+------+------+------|
|200MHz |66MHz | 3x | Open |Closed|Closed|Closed|Closed|
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION (CON’T) |
|------------------------------------------------------------|
|CPU speed|Clock speed|Multiplier| JP9 | JP10 | JP11 | JP12 |
|---------+-----------+----------+------+------+------+------|
| 150MHz | 60MHz | 2.5x |Closed|Closed|Closed| Open |
|---------+-----------+----------+------+------+------+------|
| 166MHz | 66MHz | 2.5x |Closed|Closed|Closed| Open |
|---------+-----------+----------+------+------+------+------|
| 180MHz | 60MHz | 3x |Closed|Closed| Open |Closed|
|---------+-----------+----------+------+------+------+------|
| 200MHz | 66MHz | 3x |Closed|Closed| Open |Closed|
+------------------------------------------------------------+
+------------------------------------------------------------+
| RAID DRAM SELECTION |
|------------------------------------------------------------|
| Setting | JP15 | JP17 |
|------------------+--------------------+--------------------|
| 1MB | Pins 1 & 2 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 4MB | Pins 2 & 3 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
