# ABIT COMPUTER CORPORATION
FA3 MAINBOARD
Processor 80386DX
Processor Speed 33/40MHz
Chip Set Unidentified
Max. Onboard DRAM 32MB
Cache 64/128/256KB
BIOS AMI/Award
Dimensions 254mm x 218mm
I/O Options None
NPU Options 80387DX/3167

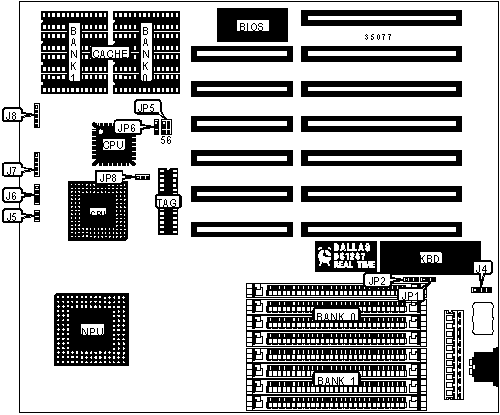

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| External battery | J4 | Turbo switch | J7 pins |
| | | | 1 & 2 |
|------------------+----------+-------------------+----------|
| Reset switch | J5 | Turbo LED | J7 pins |
| | | | 4 & 5 |
|------------------+----------+-------------------+----------|
| Speaker | J6 | Power LED & | J8 |
| | | keylock | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Factory configured - do not | JP1 | pins 1 & 2 |
| | alter | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP1 | pins 2 & 3 |
| | alter | | closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select monochrome | JP2 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select CGA/EGA/VGA | JP8 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG |
|------------+---------------+---------------+---------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | (1) 8K x 8 |
|------------+---------------+---------------+---------------|
| 128KB | (4) 32K x 8 | NONE | (1) 8K x 8 |
|------------+---------------+---------------+---------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 | (1) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP5 | JP6 |
|-------+--------------------------------+-------------------|
| 64KB | Open | pins 1 & 2 closed |
|-------+--------------------------------+-------------------|
| 128KB | pins 1 & 2, 3 & 4 closed | pins 2 & 3 closed |
|-------+--------------------------------+-------------------|
| 256KB | pins 1 & 2, 3 & 4, 5 & 6 | pins 1 & 2 closed |
| | closed | |
+------------------------------------------------------------+
