# SOYO COMPUTER CO., LTD.
SY-6KE
Device Type Mainboard
Processor Pentium II
Processor Speed 233/266/300/333MHz
Chip Set Intel 440BX
Video Chip Set None
Maximum Onboard 384MB (EDO & SDRAM supported)
Memory
Maximum Video None
Memory
Cache 256/512KB (located on Pentium II CPU)
BIOS Unidentified
Dimensions 305mm x 244mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
IDE interfaces (2), parallel port, PS/2 mouse
port, serial ports (2), IR connector, USB
connectors (2), ATX power connector, AGP
slot, SB-link connector, wake on LAN
connector
IMG IMG 1
+------------------------------------------------------------+

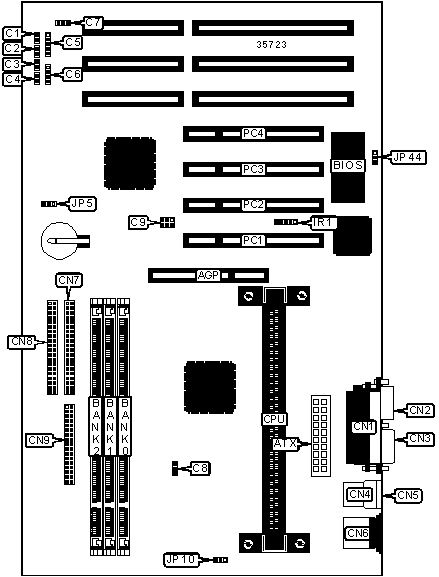

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| AGP slot | AGP | Serial port 2 | CN2 |
|-------------------+----------+------------------+----------|
| ATX power | ATX | Serial port 1 | CN3 |
| connector | | | |
|-------------------+----------+------------------+----------|
| Reset switch | C1 | USB connector 1 | CN4 |
|-------------------+----------+------------------+----------|
| Soft off power | C2 | USB connector 2 | CN5 |
| supply | | | |
|-------------------+----------+------------------+----------|
| Turbo LED | C3 | PS/2 mouse port | CN6 |
|-------------------+----------+------------------+----------|
| IDE interface LED | C4 | IDE interface 2 | CN7 |
|-------------------+----------+------------------+----------|
| Power LED & | C5 | IDE interface 1 | CN8 |
| keylock | | | |
|-------------------+----------+------------------+----------|
| Speaker | C6 | Floppy drive | CN9 |
| | | interface | |
|-------------------+----------+------------------+----------|
| Chassis fan power | C7 | IR connector | IR1 |
|-------------------+----------+------------------+----------|
| CPU fan power | C8 | Wake on LAN | JP44 |
| | | connector | |
|-------------------+----------+------------------+----------|
| SB-link connector | C9 | 32-bit PCI slots | PC1 - PC |
|-------------------+----------+------------------+----------|
| Parallel port | CN1 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------+-------+-----------------|
| » | CMOS memory normal operation | JP5 | Pins 1 & 2 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| | CMOS memory clear | JP5 | Pins 2 & 3 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| » | Keyboard wake up disabled | JP10 | Pins 2 & 3 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| | Keyboard wake up enabled | JP10 | Pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 8MB | (1) 1M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 16MB | (1) 2M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 16MB | (1) 1M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 24MB | (1) 2M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 24MB | (1) 1M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 32MB | (1) 4M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 32MB | (1) 2M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 32MB | (1) 2M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 40MB | (1) 4M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 40MB | (1) 2M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 48MB | (1) 4M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 48MB | (1) 4M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 48MB | (1) 2M x 64 | (1) 2M x 64 | (1) 2M x 64 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 56MB | (1) 4M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 64MB | (1) 8M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 64MB | (1) 4M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 64MB | (1) 4M x 64 | (1) 4M x 64 | None |
|------------+---------------+---------------+---------------|
| 72MB | (1) 8M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 72MB | (1) 4M x 64 | (1) 4M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 80MB | (1) 8M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 80MB | (1) 8M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 80MB | (1) 4M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 88MB | (1) 8M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 96MB | (1) 8M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 96MB | (1) 8M x 64 | (1) 4M x 64 | None |
|------------+---------------+---------------+---------------|
| 96MB | (1) 4M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 104MB | (1) 8M x 64 | (1) 4M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 112MB | (1) 8M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 128MB | (1) 16M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 128MB | (1) 8M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 128MB | (1) 8M x 64 | (1) 8M x 64 | None |
|------------+---------------+---------------+---------------|
| 136MB | (1) 16M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 136MB | (1) 8M x 64 | (1) 8M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 144MB | (1) 16M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 144MB | (1) 16M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 144MB | (1) 8M x 64 | (1) 8M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 152MB | (1) 16M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 160MB | (1) 16M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 160MB | (1) 16M x 64 | (1) 4M x 64 | None |
|------------+---------------+---------------+---------------|
| 160MB | (1) 8M x 64 | (1) 8M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 168MB | (1) 16M x 64 | (1) 4M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 176MB | (1) 16M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 192MB | (1) 16M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 192MB | (1) 16M x 64 | (1) 8M x 64 | None |
|------------+---------------+---------------+---------------|
| 192MB | (1) 8M x 64 | (1) 8M x 64 | (1) 8M x 64 |
|------------+---------------+---------------+---------------|
| 200MB | (1) 16M x 64 | (1) 8M x 64 | (1) 1M x 64 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 208MB | (1) 16M x 64 | (1) 8M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 224MB | (1) 16M x 64 | (1) 8M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 256MB | (1) 16M x 64 | (1) 8M x 64 | (1) 8M x 64 |
|------------+---------------+---------------+---------------|
| 384MB | (1) 16M x 64 | (1) 16M x 64 | (1) 16M x 64 |
|------------------------------------------------------------|
| Note: Board accepts EDO & SDRAM memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium II CPU. |
+------------------------------------------------------------+
