# TEXAS MICRO, INC.
P5000HX WMB
Device Type Mainboard
Processor Pentium
Processor Speed 166MHz
Chip Set Intel 430HX
Maximum Onboard 128MB
Memory
Cache 256/512KB
BIOS Unidentified
Dimensions 330mm x 218mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
IDE interfaces (2), parallel port, PS/2 mouse
port, serial ports (2), cache slot

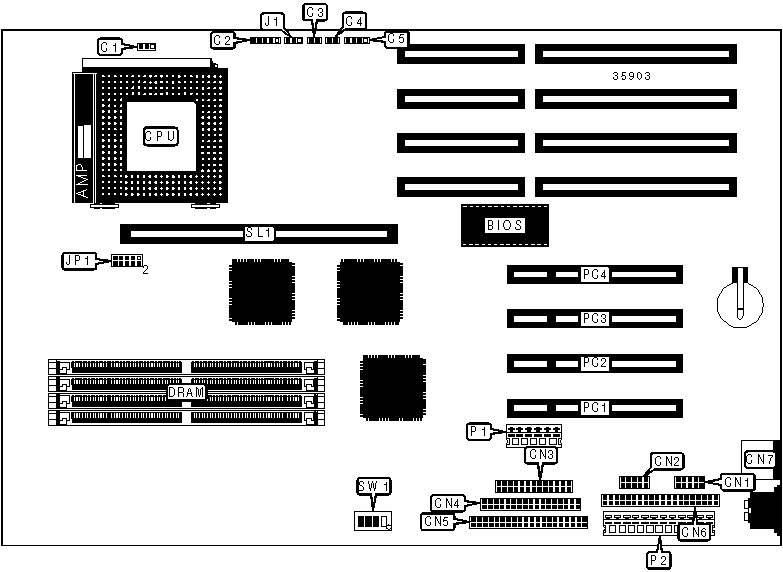

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Chassis fan power | C1 | Floppy drive | CN4 |
| | | interface | |
|-------------------+----------+------------------+----------|
| Power LED & | C2 | IDE interface 1 | CN5 |
| keylock | | | |
|-------------------+----------+------------------+----------|
| Reset switch | C3 | IDE interface 2 | CN6 |
|-------------------+----------+------------------+----------|
| IDE interface LED | C4 | PS/2 mouse port | CN7 |
|-------------------+----------+------------------+----------|
| Speaker | C5 | 3.3v power | P1 |
|-------------------+----------+------------------+----------|
| Serial port 1 | CN1 | 5v power | P2 |
|-------------------+----------+------------------+----------|
| Serial port 2 | CN2 | 32-bit PCI slots | PC1 – |
| | | | PC4 |
|-------------------+----------+------------------+----------|
| Parallel port | CN3 | Cache slot | SL1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | J1 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Monitor type select color | SW1/1 | On |
|---+---------------------------------+-------+--------------|
| | Monitor type select monochrome | SW1/1 | Off |
|---+---------------------------------+-------+--------------|
| » | Flash BIOS enabled; crisis | SW1/2 | Off |
| | recovery mode disabled | | |
|---+---------------------------------+-------+--------------|
| | Flash BIOS disabled; crisis | SW1/2 | On |
| | recovery mode enabled | | |
|---+---------------------------------+-------+--------------|
| » | CMOS memory normal operation | SW1/3 | Off |
|---+---------------------------------+-------+--------------|
| | CMOS memory clear | SW1/3 | On |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | SW1/4 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | SL1 |
|----------------------------+-------------------------------|
| 256KB | 256KB module installed |
|----------------------------+-------------------------------|
| 512KB | 512KB module installed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU speed | Clock speed | Multiplier | JP1 |
|-----------+-------------+------------+---------------------|
| 166MHz | 66MHz | 2.5x | Pins 1 & 3, 5 & 7, |
| | | | 6 & 8 closed |
+------------------------------------------------------------+
