# TEXAS MICRO, INC.
P5000HX-M SBC
Device Type Single board computer
Processor Pentium MMX
Processor Speed 166/200/233MHz
Chip Set Intel 430HX
Maximum Onboard 256MB (EDO supported)
Memory
Cache 256/512KB
BIOS Unidentified
Dimensions 338mm x 122mm
I/O Options Floppy drive interface, IDE interface, SCSI
interface, parallel port, PS/2 mouse
interface, serial ports (2), cache slot, USB
connectors (2)

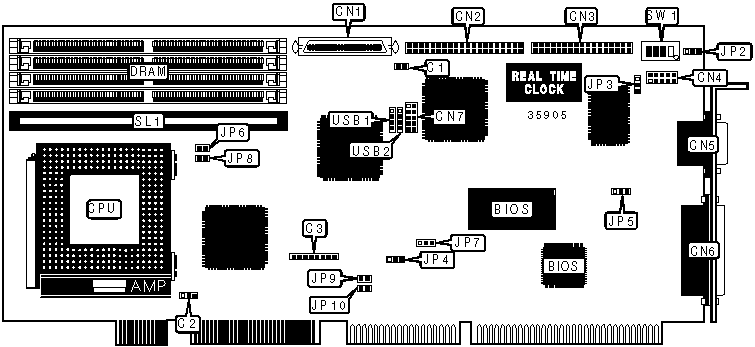

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| SCSI/IDE | C1 | Serial port 1 | CN5 |
| interface LED | | | |
|-------------------+----------+------------------+----------|
| CPU fan power | C2 | Parallel port | CN6 |
|-------------------+----------+------------------+----------|
| Keyboard | C3 | PS/2 mouse | CN7 |
| connector | | interface | |
|-------------------+----------+------------------+----------|
| SCSI interface | CN1 | Cache slot | SL1 |
|-------------------+----------+------------------+----------|
| IDE interface | CN2 | USB connector 1 | USB1 |
|-------------------+----------+------------------+----------|
| Floppy drive | CN3 | USB connector 2 | USB2 |
| interface | | | |
|-------------------+----------+------------------+----------|
| Serial port 2 | CN4 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|---------------------------------------+-------+------------|
| » | Watchdog timer disabled | JP4 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Watchdog timer enabled | JP4 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Next Step OS select normal | JP7 | Pins 2 & 3 |
| | operation | | closed |
|---+-----------------------------------+-------+------------|
| | Next Step OS select running Next | JP7 | Pins 1 & 2 |
| | Step & having PS/2 problems | | closed |
|---+-----------------------------------+-------+------------|
| » | Monitor type select color | SW1/1 | On |
|---+-----------------------------------+-------+------------|
| | Monitor type select monochrome | SW1/1 | Off |
|---+-----------------------------------+-------+------------|
| » | Flash BIOS enabled; auxiliary ROM | SW1/2 | Off |
| | disabled | | |
|---+-----------------------------------+-------+------------|
| | Flash BIOS disabled; auxiliary | SW1/2 | On |
| | ROM enabled | | |
|---+-----------------------------------+-------+------------|
| » | CMOS memory normal operation | SW1/3 | Off |
|---+-----------------------------------+-------+------------|
| | CMOS memory clear | SW1/3 | On |
|---+-----------------------------------+-------+------------|
| » | I/O port address select 270/271 | SW1/4 | Off |
|---+-----------------------------------+-------+------------|
| | I/O port address select 370/371 | SW1/4 | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 16M x 36 | None |
|------------------+--------------------+--------------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | SL1 |
|----------------------------+-------------------------------|
| 256KB | 256KB module installed |
|----------------------------+-------------------------------|
| 512KB | 512KB module installed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
|CPU speed|Clock speed|Multiplier| JP6 | JP8 |JP9 | JP10 |
|---------+-----------+----------+-------+-------+----+------|
| 166MHz | 66MHz | 2.5x |Closed |Closed |Open|Closed|
|---------+-----------+----------+-------+-------+----+------|
| 200MHz | 66MHz | 3x |Closed | Open |Open|Closed|
|---------+-----------+----------+-------+-------+----+------|
| 233MHz | 66MHz | 3.5x | Open | Open |Open|Closed|
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 2 SELECTION |
|------------------------------------------------------------|
| Setting | JP2 | JP3 | JP5 |
|------------+---------------+---------------+---------------|
| » | RS-232 | Pins 2 & 3 | Pins 2 & 3 | Pins 2 & 3 |
| | | closed | closed | closed |
|---+--------+---------------+---------------+---------------|
| | RS-422 | Pins 1 & 2 | Pins 1 & 2 | Pins 1 & 2 |
| | | closed | closed | closed |
+------------------------------------------------------------+
