# TOTEM TECHNOLOGY CO., LTD.
TM-P2EX
Device Type Mainboard
Processor Pentium II
Processor Speed 233/266/300/333/366MHz
Chip Set Intel 440EX
Maximum Onboard 256MB (EDO & SDRAM supported)
Memory
Cache 256/512KB (located on Pentium II CPU)
BIOS Award
Dimensions 300mm x 190mm
I/O Options 32-bit PCI slots (3), floppy drive interface,
IDE interfaces (2), parallel port, PS/2 mouse
port, serial ports (2), IR connectors (2), USB
connectors (2), ATX power connector, AGP slot,
SB-link connector
IMG IMG 1
+------------------------------------------------------------+

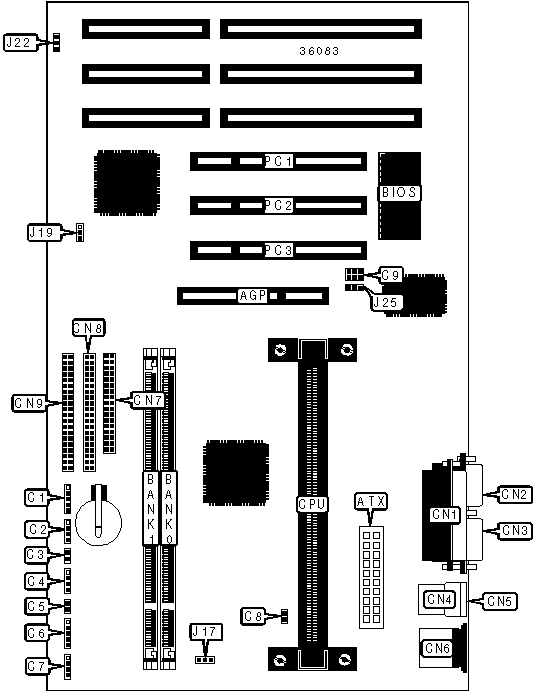

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|--------------------+----------+-----------------+----------|
| AGP slot | AGP | Serial port 2 | CN2 |
|--------------------+----------+-----------------+----------|
| ATX power | ATX | Serial port 1 | CN3 |
| connector | | | |
|--------------------+----------+-----------------+----------|
| IR connector | C1 | USB connector 1 | CN4 |
|--------------------+----------+-----------------+----------|
| IR connector | C2 | USB connector 2 | CN5 |
|--------------------+----------+-----------------+----------|
| Soft off power | C3 | PS/2 mouse port | CN6 |
| supply | | | |
|--------------------+----------+-----------------+----------|
| IDE interface LED | C4 | Floppy drive | CN7 |
| | | interface | |
|--------------------+----------+-----------------+----------|
| Reset switch | C5 | IDE interface 1 | CN8 |
|--------------------+----------+-----------------+----------|
| Power LED & | C6 | IDE interface 2 | CN9 |
| keylock | | | |
|--------------------+----------+-----------------+----------|
| Speaker | C7 | CPU fan power | J17 |
|--------------------+----------+-----------------+----------|
| Temperature sensor | C8 | Chassis fan | J22 |
| connector | | power | |
|--------------------+----------+-----------------+----------|
| SB-link connector | C9 | 32-bit PCI | PC1 - |
| | | slots | PC3 |
|--------------------+----------+-----------------+----------|
| Parallel port | CN1 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | CMOS memory normal operation | J19 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | CMOS memory clear | J19 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | J25 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (1) 1M x 64 | None |
|------------------+--------------------+--------------------|
| 16MB | (1) 2M x 64 | None |
|------------------+--------------------+--------------------|
| 16MB | (1) 1M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 24MB | (1) 2M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 32MB | (1) 4M x 64 | None |
|------------------+--------------------+--------------------|
| 32MB | (1) 2M x 64 | (1) 2M x 64 |
|------------------+--------------------+--------------------|
| 40MB | (1) 4M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 48MB | (1) 4M x 64 | (1) 2M x 64 |
|------------------+--------------------+--------------------|
| 64MB | (1) 8M x 64 | None |
|------------------+--------------------+--------------------|
| 64MB | (1) 4M x 64 | (1) 4M x 64 |
|------------------+--------------------+--------------------|
| 72MB | (1) 8M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 80MB | (1) 8M x 64 | (1) 2M x 64 |
|------------------+--------------------+--------------------|
| 96MB | (1) 8M x 64 | (1) 4M x 64 |
|------------------+--------------------+--------------------|
| 128MB | (1) 16M x 64 | None |
|------------------+--------------------+--------------------|
| 128MB | (1) 8M x 64 | (1) 8M x 64 |
|------------------+--------------------+--------------------|
| 136MB | (1) 16M x 64 | (1) 1M x 64 |
|------------------+--------------------+--------------------|
| 144MB | (1) 16M x 64 | (1) 2M x 64 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION (CON'T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 160MB | (1) 16M x 64 | (1) 4M x 64 |
|------------------+--------------------+--------------------|
| 192MB | (1) 16M x 64 | (1) 8M x 64 |
|------------------+--------------------+--------------------|
| 256MB | (1) 16M x 64 | (1) 16M x 64 |
|------------------------------------------------------------|
| Note: Board accepts EDO & SDRAM memory. |
+------------------------------------------------------------+
+-----------------------------------------------------------+
| CACHE CONFIGURATION |
|-----------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium II CPU. |
+-----------------------------------------------------------+
