# CALIBER COMPUTER
386-25B
Processor 80386DX
Processor Speed 25MHz
Chip Set OPTI
Max. Onboard DRAM 8MB
Cache None
BIOS AMI
Dimensions 360mm x 240mm
I/O Options 32-bit external memory card slot
NPU Options 80387/3167

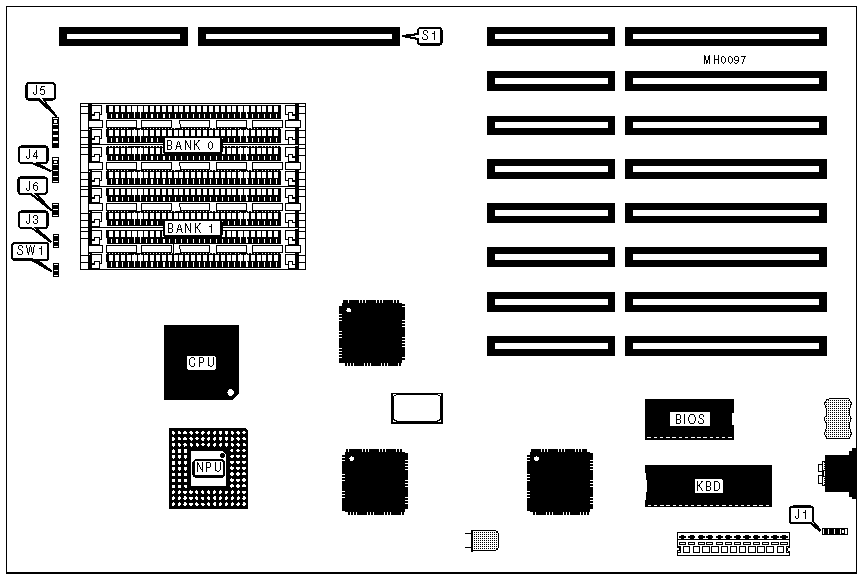

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| External battery | J1 | Turbo LED | J6 |
|-------------------+----------+------------------+----------|
| Speaker | J4 | 32-bit external | S1 |
| | | memory card | |
|-------------------+----------+------------------+----------|
| Power LED & | J5 | Reset switch | SW1 |
| keylock | | | |
+------------------------------------------------------------+
.
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| ยป | Monitor type select color | J2 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select monochrome | J2 | pins 1 & 2 |
| | | | open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|----------------+---------------------+---------------------|
| 1MB | (4) 256K x 9 | NONE |
|----------------+---------------------+---------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|----------------+---------------------+---------------------|
| 4MB | (4) 1M x 9 | NONE |
|----------------+---------------------+---------------------|
| 5MB | (4) 256K x 9 | (4) 1M x 9 |
|----------------+---------------------+---------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
+------------------------------------------------------------+
