# WISEWARE COMPUTER, INC.
CM-252
Processor 80286
Processor Speed 12/16MHz
Chip Set C & T
Max. Onboard DRAM 4MB
Cache None
BIOS AMI
Dimensions 243mm x 218mm
I/O Options None
NPU Options 80287

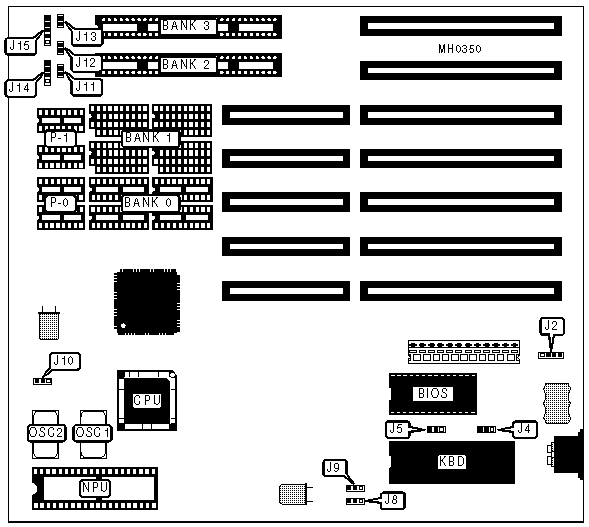

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------+----------+---------------------+----------|
| Turbo LED | J11 | Speaker | J14 |
|----------------+----------+---------------------+----------|
| Turbo switch | J12 | Power LED & keylock | J15 |
|----------------+----------+---------------------+----------|
| Reset switch | J13 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Power good signal detect from | J2 | pins 2 & 3 |
| | power supply | | closed |
|---+----------------------------------+--------+------------|
| | Power good signal detect from | J2 | pins 1 & 2 |
| | board | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | J4 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | J5 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | J5 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | J8 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | J9 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | NPU clock select iOSC | J10 | Closed |
|---+----------------------------------+--------+------------|
| | NPU clock select external OSC | J10 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | P-0 | Bank 1 | P-1 | Bank | Bank |
| | | | | | 2 | 3 |
|-------+---------+--------+--------+--------+-------+-------|
| 512KB | (4) | (2) | NONE | NONE | NONE | NONE |
| | 44256 | 41256 | | | | |
|-------+---------+--------+--------+--------+-------+-------|
| 512KB | NONE | NONE | NONE | NONE | (2) | NONE |
| | | | | | 256K | |
| | | | | | x 9 | |
|-------+---------+--------+--------+--------+-------+-------|
| 640KB | (4) | (2) | (4) | (2) | NONE | NONE |
| | 44256 | 41256 | 4464 | 4164 | | |
|-------+---------+--------+--------+--------+-------+-------|
| 1MB | (4) | (2) | (4) | (2) | NONE | NONE |
| | 44256 | 41256 | 44256 | 41256 | | |
|-------+---------+--------+--------+--------+-------+-------|
| 1MB | NONE | NONE | NONE | NONE | (2) | (2) |
| | | | | | 256K | 256K |
| | | | | | x 9 | x 9 |
|-------+---------+--------+--------+--------+-------+-------|
| 2MB | NONE | NONE | NONE | NONE | (2) | NONE |
| | | | | | 1M x | |
| | | | | | 9 | |
|-------+---------+--------+--------+--------+-------+-------|
| 4MB | NONE | NONE | NONE | NONE | (2) | (2) |
| | | | | | 1M x | 1M x |
| | | | | | 9 | 9 |
+------------------------------------------------------------+
