# WYSE TECHNOLOGY, INC.
WYSE DECISION 386/40
Processor 80386DX
Processor Speed 16/20MHz
Chip Set WYSE
Max. Onboard DRAM 16MB
Cache 128/256KB
BIOS WYSE
Dimensions 330mm x 218mm
I/O Options None
NPU Options 80387

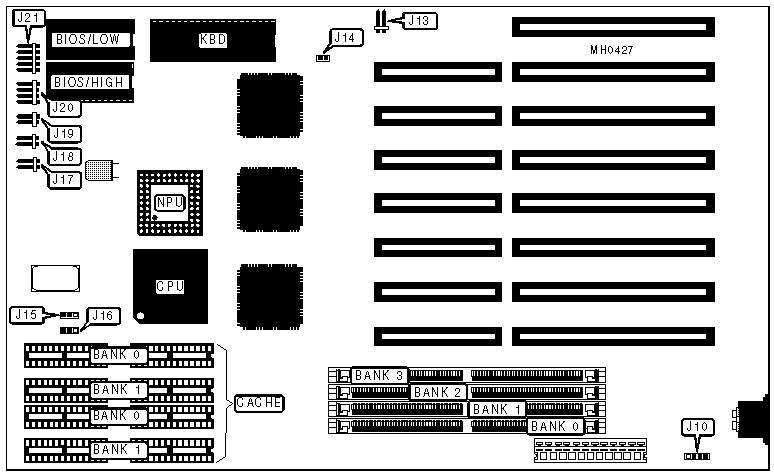

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| External battery | J10 | Turbo LED | J19 |
|------------------+----------+-------------------+----------|
| Reset switch | J17 | Speaker | J20 |
|------------------+----------+-------------------+----------|
| Turbo switch | J18 | Power LED & | J21 |
| | | keylock | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+---------+-----------|
| » | Factory test disabled | J13 | Open |
|---+----------------------------------+---------+-----------|
| | Factory test enabled | J13 | Closed |
|---+----------------------------------+---------+-----------|
| » | Monitor type select color | J14 | Closed |
|---+----------------------------------+---------+-----------|
| | Monitor type select monochrome | J14 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+---------------+-------------+------------+----------|
| 4MB | (1) 1M x 36 | NONE | NONE | NONE |
|------+---------------+-------------+------------+----------|
| 5MB | (1) 256K x 36 | (1) 1M x 36 | NONE | NONE |
|------+---------------+-------------+------------+----------|
| 6MB | (1) 1M x 36 | (1) 256K x | (1) 256K x | NONE |
| | | 36 | 36 | |
|------+---------------+-------------+------------+----------|
| 8MB | (1) 1M x 36 | (1) 1M x 36 | NONE | NONE |
|------+---------------+-------------+------------+----------|
| 12MB | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x | NONE |
| | | | 36 | |
|------+---------------+-------------+------------+----------|
| 16MB | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 128KB | (4) 32K x 8 | NONE |
|------------------+--------------------+--------------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | J15 | J16 |
|------------------+--------------------+--------------------|
| 128KB | pins 2 & 3 closed | pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 256KB | pins 1 & 2 closed | pins 2 & 3 closed |
+------------------------------------------------------------+
