# UNIDENTIFIED
C-3169/C-3209
Processor 80386SX
Processor Speed 16/20MHz
Chip Set SARC
Max. Onboard DRAM 16MB
Cache None
BIOS AMI
Dimensions 220mm x 220mm
I/O Options None
NPU Options 80387SX

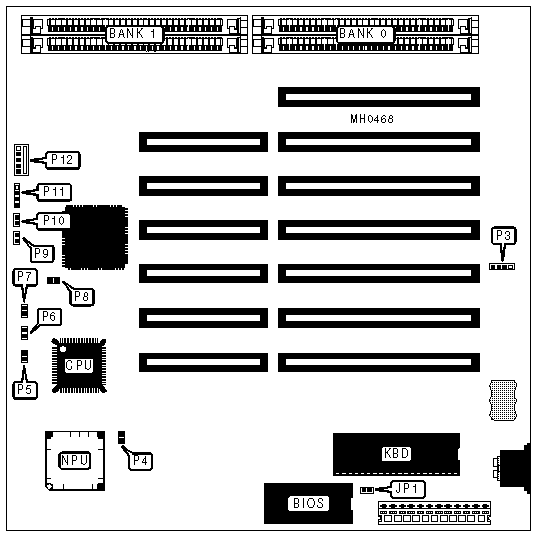

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| External battery | P3 | Reset switch | P10 |
|------------------+----------+-------------------+----------|
| Turbo LED | P8 | Speaker | P11 |
|------------------+----------+-------------------+----------|
| Turbo switch | P9 | Power LED & | P12 |
| | | keylock | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|----------------------------------------+--------+----------|
| » | Monitor type select color | JP1 | Closed |
|---+------------------------------------+--------+----------|
| | Monitor type select monochrome | JP1 | Open |
|---+------------------------------------+--------+----------|
| » | NPU disabled | P4 | Closed |
|---+------------------------------------+--------+----------|
| | NPU enabled | P4 | Open |
|---+------------------------------------+--------+----------|
| » | DRAM mode select row/column | P5 | Closed |
|---+------------------------------------+--------+----------|
| | DRAM mode select page | P5 | Open |
|---+------------------------------------+--------+----------|
| » | Parity disabled | P6 | Closed |
|---+------------------------------------+--------+----------|
| | Parity enabled | P6 | Open |
|---+------------------------------------+--------+----------|
| » | DRAM wait state select 0 wait | P7 | Open |
| | states | | |
|---+------------------------------------+--------+----------|
| | DRAM wait state select 1 wait | P7 | Closed |
| | state | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (2) 256K x 9 | (2) 256K x 9 |
|------------------+--------------------+--------------------|
| 2MB | (2) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (2) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 16MB | (2) 4M x 9 | (2) 4M x 9 |
+------------------------------------------------------------+
