# UNIDENTIFIED
X'GOLDEN 386 (BABY-AT SIZE)
Processor 80386DX
Processor Speed 16/20/25MHz
Chip Set Unknown
Max. Onboard DRAM 8MB
Cache None
BIOS AMI
Dimensions 330mm x 218mm
I/O Options 32-bit external memory card slots (2)
NPU Options 80287/80387

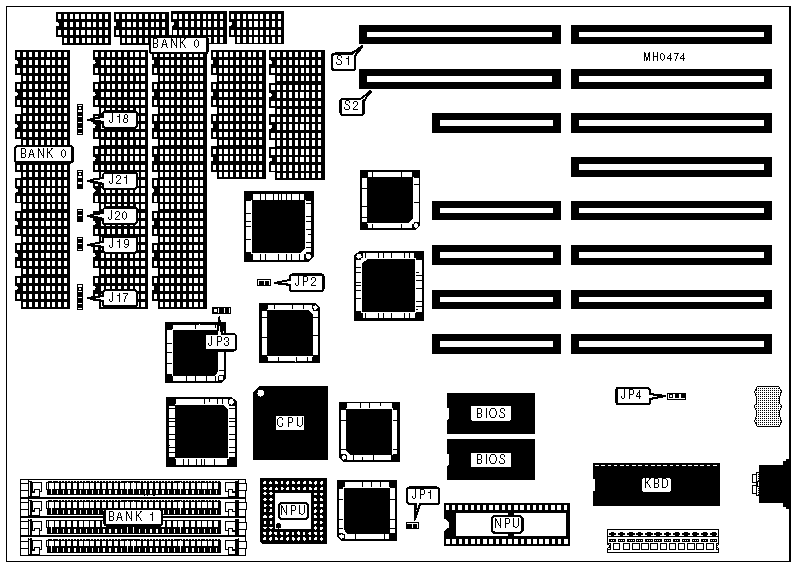

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------+----------+----------------------+----------|
| Speaker | J17 | Turbo LED | J20 |
|---------------+----------+----------------------+----------|
| Power LED & | J18 | Turbo switch | J21 |
| keylock | | | |
|---------------+----------+----------------------+----------|
| Reset switch | J19 | 32-bit external | S1 & S2 |
| | | memory card slots | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| ยป | Monitor type select monochrome | JP4 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select color | JP4 | pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 2MB | (36) 41256 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 8MB | (36) 411000 | (4) 1M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| NPU CONFIGURATION |
|------------------------------------------------------------|
| Type | JP1 | JP2 | JP3 |
|--------------+---------------+--------------+--------------|
| None | Open | Open | Open |
|--------------+---------------+--------------+--------------|
| 80287 | Open | Open | Closed |
|--------------+---------------+--------------+--------------|
| 80387 | Closed | Closed | Closed |
+------------------------------------------------------------+
