# UNIDENTIFIED
ELT 286B (model 160B, 120B)
Processor 80286
Processor Speed 10/16MHz
Chip Set C & T NEAT
Max. Onboard DRAM 4MB
Cache None
BIOS AMI/Award/Phoenix
Dimensions 332mm x 216mm
I/O Options None
NPU Options 80287

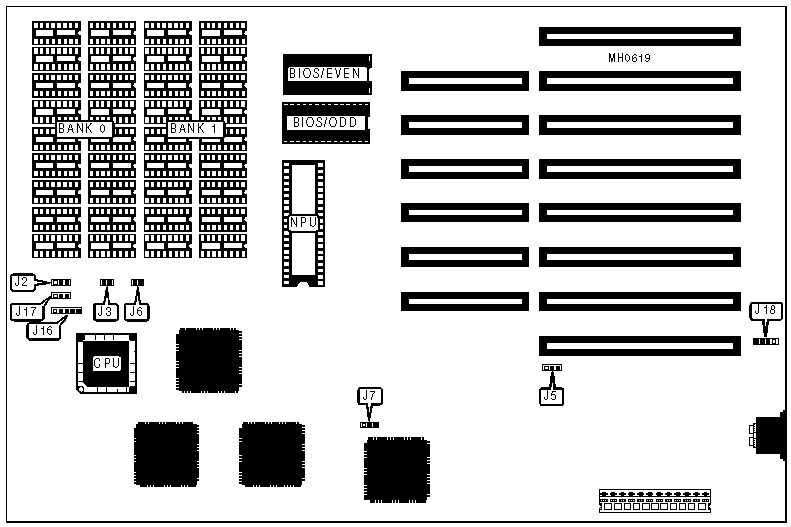

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Turbo LED | J3 | Speaker | J17 |
|-------------------+----------+------------------+----------|
| Reset switch | J6 | External battery | J18 |
|-------------------+----------+------------------+----------|
| Power LED & | J16 | | |
| keylock | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | CPU speed select switchable at | J2 | pins 1 & 2 |
| | keyboard | | closed |
|---+----------------------------------+--------+------------|
| | CPU speed select forced high | J2 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | J5 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | J5 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Reset select normal | J7 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Reset select for chip register | J7 | pins 2 & 3 |
| | setup | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | EMS range | Bank 0 | Bank 1 |
|----------+---------------+----------------+----------------|
| 512KB | NONE | (18) 41256 | NONE |
|----------+---------------+----------------+----------------|
| 640KB | NONE | (18) 41256 | (18) 4164 |
|----------+---------------+----------------+----------------|
| 1MB | 1MBto 1.384MB | (18) 41256 | (18) 41256 |
|----------+---------------+----------------+----------------|
| 2MB | 1MBto 2MB | (18) 411000 | NONE |
|----------+---------------+----------------+----------------|
| 4MB | 1MBto 4MB | (18) 411000 | (18) 411000 |
+------------------------------------------------------------+
