# UNIDENTIFIED
486WB CACHE
Processor 80486SX/80487SX/80486DX
Processor Speed 25/33MHz
Chip Set OPTI
Max. Onboard DRAM 64MB
Cache 64/128/256/512KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options None
NPU Options 4167

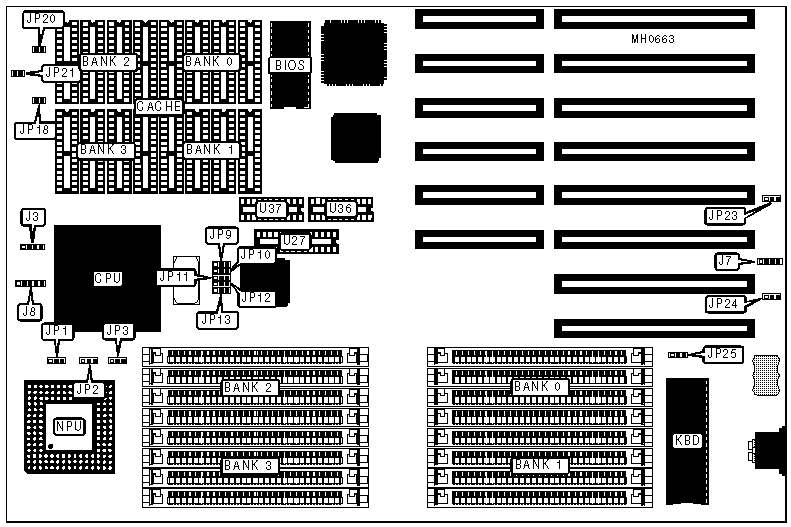

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| Speaker | J3 | Turbo switch | JP18 |
|---------------------+----------+----------------+----------|
| External battery | J7 | Turbo LED | JP20 |
|---------------------+----------+----------------+----------|
| Power LED & keylock | J8 | Reset switch | JP21 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | CPU speed select forced high | JP18 | Closed |
|---+----------------------------------+--------+------------|
| | CPU speed select switchable at | JP18 | Open |
| | keyboard | | |
|---+----------------------------------+--------+------------|
| » | Power good signal detect from | JP23 | pins 1 & 2 |
| | power supply | | closed |
|---+----------------------------------+--------+------------|
| | Power good signal detect from | JP23 | pins 2 & 3 |
| | board | | closed |
|---+----------------------------------+--------+------------|
| » | CMOS memory normal operation | JP24 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | JP24 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | JP25 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | JP25 | pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 1MB | (4) 256K x | NONE | NONE | NONE |
| | 9 | | | |
|------+-------------+-------------+------------+------------|
| 2MB | (4) 256K x | (4) 256K x | NONE | NONE |
| | 9 | 9 | | |
|------+-------------+-------------+------------+------------|
| 4MB | (4) 1M x 9 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 5MB | (4) 256K x | (4) 1 M x 9 | NONE | NONE |
| | 9 | | | |
|------+-------------+-------------+------------+------------|
| 6MB | (4) 256K x | (4) 256K x | (4) 1M x 9 | NONE |
| | 9 | 9 | | |
|------+-------------+-------------+------------+------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 9MB | (4) 256K x | (4) 1M x 9 | (4) 1M x 9 | NONE |
| | 9 | | | |
|------+-------------+-------------+------------+------------|
| 10MB | (4) 256K x | (4) 256K x | (4) 1M x 9 | (4) 1M x 9 |
| | 9 | 9 | | |
|------+-------------+-------------+------------+------------|
| 12MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 13MB | (4) 256K x | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 |
| | 9 | | | |
|------+-------------+-------------+------------+------------|
| 16MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 |
|------+-------------+-------------+------------+------------|
| 16-B | (4) 4M x 9 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 20MB | (4) 1M x 9 | (4) 4M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 24MB | (4) 1M x 9 | (4) 1M x 9 | (4) 4M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 28MB | (4) 1M x 9 | (4) 1M x 9 | (4) 4M x 9 | (4) 1M x 9 |
|------+-------------+-------------+------------+------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 36MB | (4) 1M x 9 | (4) 4M x 9 | (4) 4M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 40MB | (4) 1M x 9 | (4) 4M x 9 | (4) 4M x 9 | (4) 1M x 9 |
|------+-------------+-------------+------------+------------|
| 48MB | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 52MB | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 | (4) 1M x 9 |
|------+-------------+-------------+------------+------------|
| 64MB | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 128KB | (4) 8K x 8 | (4) 8K x 8 | (4) 8K x 8 | (4) 8K x 8 |
|-------+-------------+------------+------------+------------|
| 256KB | (4) 32K x 8 | (4) 32K x | NONE | NONE |
| | | 8 | | |
|-------+-------------+------------+------------+------------|
| 512KB | (4) 32K x 8 | (4) 32K x | (4) 32K x | (4) 32K x |
| | | 8 | 8 | 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE TAG CONFIGURATION |
|------------------------------------------------------------|
| Size | U27 | U36 | U37 |
|------------+---------------+---------------+---------------|
| 64KB | (1) 8K x 8 | (1) 16K x 8 | NONE |
|------------+---------------+---------------+---------------|
| 128KB | (1) 8K x 8 | (1) 16K x 8 | NONE |
|------------+---------------+---------------+---------------|
| 256KB | (1) 32K x 8 | NONE | (1) 64K x 8 |
|------------+---------------+---------------+---------------|
| 512KB | (1) 32K x 8 | NONE | (1) 64K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP9 | JP10 | JP11 | JP12 | JP13 |
|----------+----------+----------+---------+--------+--------|
| 64KB | 2 & 3 | 2 & 3 | 2 & 3 | 2 & 3 | 2 & 3 |
|----------+----------+----------+---------+--------+--------|
| 128KB | 1 & 2 | 1 & 2 | 2 & 3 | 2 & 3 | 2 & 3 |
|----------+----------+----------+---------+--------+--------|
| 256KB | 1 & 2 | 1 & 2 | 1 & 2 | 2 & 3 | 2 & 3 |
|----------+----------+----------+---------+--------+--------|
| 512KB | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | JP1 | JP2 | JP3 |
|---------+----------------+----------------+----------------|
| 80486SX | pins 2 & 3 | pins 2 & 3 | Open |
| | closed | closed | |
|---------+----------------+----------------+----------------|
| 80487SX | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 |
| | closed | closed | closed |
|---------+----------------+----------------+----------------|
| 80486DX | pins 1 & 2 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed |
+------------------------------------------------------------+
