# UNIDENTIFIED
HT 12 286
Processor 80286
Processor Speed 12/16MHz
Chip Set Headland
Max. Onboard DRAM 4MB
Cache None
BIOS AMI
Dimensions 220mm x 220mm
I/O Options None
NPU Options 80287

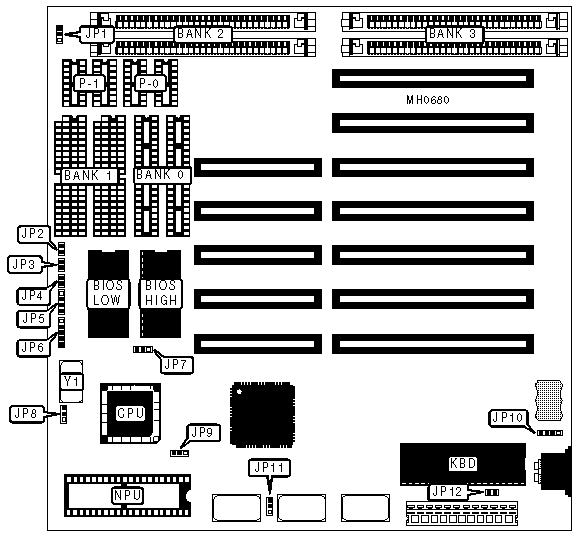

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------+----------+---------------------+----------|
| Turbo switch | JP2 | Speaker | JP5 |
|----------------+----------+---------------------+----------|
| Turbo LED | JP3 | Power LED & keylock | JP6 |
|----------------+----------+---------------------+----------|
| Reset switch | JP4 | External battery | JP10 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Factory configured - do not | JP1 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | BIOS type select 27512 | JP7 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | BIOS type select 27256 | JP7 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | NPU mode select synchronous with | JP8 | pins 2 & 3 |
| | CPU | | closed |
|---+----------------------------------+--------+------------|
| | NPU mode select synchronous with | JP8 | pins 1 & 2 |
| | oscillator installed at Y1 | | closed |
|---+----------------------------------+--------+------------|
| » | NPU speed select source/1 | JP9 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | NPU speed select source/3 | JP9 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | CPU speed select 16MHz | JP11 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CPU speed select 12MHz | JP11 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | JP12 | Closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | JP12 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | P-0 | Bank 1 | P-1 | Bank 2 | Bank |
| | | | | | | 3 |
|-------+--------+--------+--------+--------+--------+-------|
| 512KB | (4) | (2) | NONE | NONE | NONE | NONE |
| | 44256 | 41256 | | | | |
|-------+--------+--------+--------+--------+--------+-------|
| 640KB | (4) | (2) | (4) | (2) | NONE | NONE |
| | 44256 | 41256 | 4464 | 41256 | | |
|-------+--------+--------+--------+--------+--------+-------|
| 1MB | (4) | (2) | (4) | (2) | NONE | NONE |
| | 44256 | 41256 | 44256 | 41256 | | |
|-------+--------+--------+--------+--------+--------+-------|
| 2MB | NONE | NONE | NONE | NONE | (2) 1M | NONE |
| | | | | | x 9 | |
|-------+--------+--------+--------+--------+--------+-------|
| 4MB | NONE | NONE | NONE | NONE | (2) 1M | (2) |
| | | | | | x 9 | 1M x |
| | | | | | | 9 |
+------------------------------------------------------------+
