# UNIDENTIFED
OPTI-386
Processor 80386DX
Processor Speed 25/33MHz
Chip Set OPTI
Max. Onboard DRAM 8MB
Cache 64KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options 32-bit external memory card slot
NPU Options 80387/3167

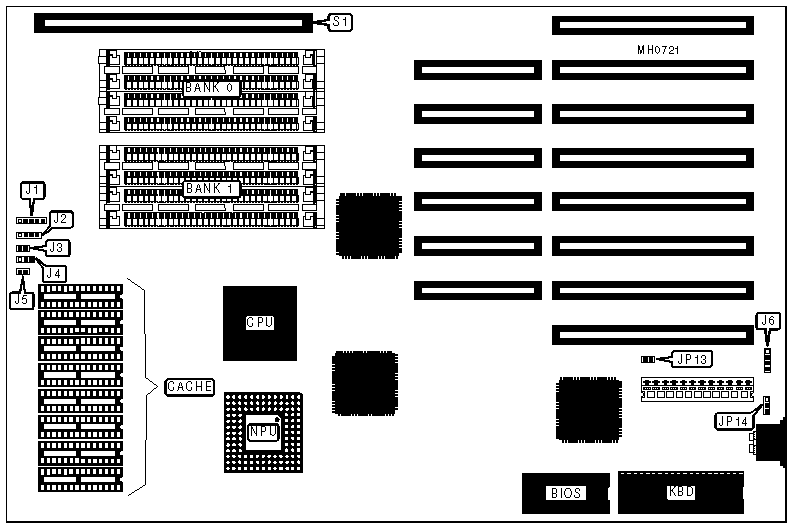

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------+----------+----------------------+----------|
| Power LED & | J1 | Turbo LED | J5 |
| keylock | | | |
|---------------+----------+----------------------+----------|
| Speaker | J2 | External battery | J6 |
|---------------+----------+----------------------+----------|
| Reset switch | J3 | 32-bit external | S1 |
| | | memory card | |
|---------------+----------+----------------------+----------|
| Turbo switch | J4 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | CPU speed select fast | J4 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CPU speed select slow | J4 | pins 1 & 2 |
| | | | open |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | JP13 | Closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | JP13 | Open |
|---+----------------------------------+--------+------------|
| » | Power good signal detect from | JP14 | pins 2 & 3 |
| | power supply | | closed |
|---+----------------------------------+--------+------------|
| | Power good signal detect from | JP14 | pins 1 & 2 |
| | board | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 256K x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
+------------------------------------------------------------+
