# UNIDENTIFIED
386/40
Processor 80386DX
Processor Speed 33/40MHz
Chip Set C & T
Max. Onboard DRAM 32MB
Cache 32/64/128/256KB
BIOS AMI/C & T
Dimensions 330mm x 218mm
I/O Options None
NPU Options 80387/3167

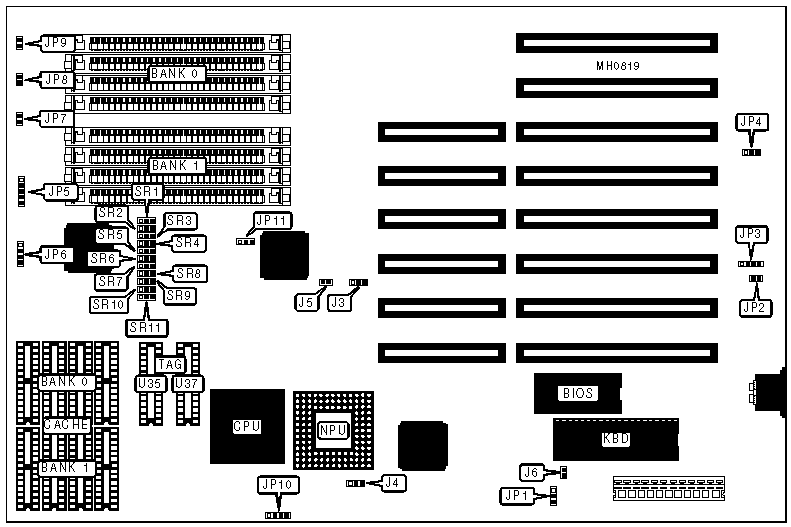

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| External battery | JP3 | Reset switch | JP7 |
|---------------------+----------+----------------+----------|
| Power LED & keylock | JP5 | Turbo LED | JP8 |
|---------------------+----------+----------------+----------|
| Speaker | JP6 | Turbo switch | JP9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Factory configured - do not | J3 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | J4 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | NPU mode select synchronous with | J5 | Open |
| | CPU | | |
|---+----------------------------------+--------+------------|
| | NPU mode select synchronous with | J5 | Closed |
| | OSC1 | | |
|---+----------------------------------+--------+------------|
| » | Factory test disabled | J6 | Open |
|---+----------------------------------+--------+------------|
| | Factory test enabled | J6 | Closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | JP1 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | JP1 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Battery select internal | JP2 | Closed |
|---+----------------------------------+--------+------------|
| | Battery select external | JP2 | Open |
|---+----------------------------------+--------+------------|
| » | CMOS memory normal operation | JP4 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | JP4 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP10 | N/A |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 1M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 17MB | (4) 4M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 20MB | (4) 4M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP11 |
|----------------------------+-------------------------------|
| 1MB | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 2MB | pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 4MB | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 5MB | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 8MB | pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 16MB | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 17MB | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 20MB | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 32MB | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG (U35) | TAG (U37) |
|-------+-------------+------------+------------+------------|
| 32KB | (4) 8K x 8 | NONE | (1) 8K x 8 | NONE |
|-------+-------------+------------+------------+------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | (1) 8K x 8 | (1) 8K x 8 |
|-------+-------------+------------+------------+------------|
| 128KB | (4) 32K x 8 | NONE | (1) 8K x 8 | NONE |
|-------+-------------+------------+------------+------------|
| 256KB | (4) 32K x 8 | (4) 32K x | (1) 8K x 8 | (1) 8K x 8 |
| | | 8 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | SR1 | SR2 | SR3 | SR4 | SR5 |
|----------+----------+----------+---------+--------+--------|
| 32KB | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 |
|----------+----------+----------+---------+--------+--------|
| 64KB | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 |
|----------+----------+----------+---------+--------+--------|
| 128KB | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 | 2 & 3 |
|----------+----------+----------+---------+--------+--------|
| 256KB | 2 & 3 | 2 & 3 | 2 & 3 | 2 & 3 | 2 & 3 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | SR6 | SR7 | SR8 | SR9 | SR10 | SR11 |
|--------+--------+--------+--------+--------+-------+-------|
| 32KB | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 |
|--------+--------+--------+--------+--------+-------+-------|
| 64KB | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 |
|--------+--------+--------+--------+--------+-------+-------|
| 128KB | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 |
|--------+--------+--------+--------+--------+-------+-------|
| 256KB | 2 & 3 | 1 & 2 | 2 & 3 | 2 & 3 | 2 & 3 | 2 & 3 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
