# UNITRON COMPUTER, INC.
486SX-25
Processor 80486SX
Processor Speed 25MHz
Chip Set UMC
Max. Onboard DRAM 32MB
Cache None
BIOS Phoenix
Dimensions 330mm x 218mm
I/O Options None
NPU Options None

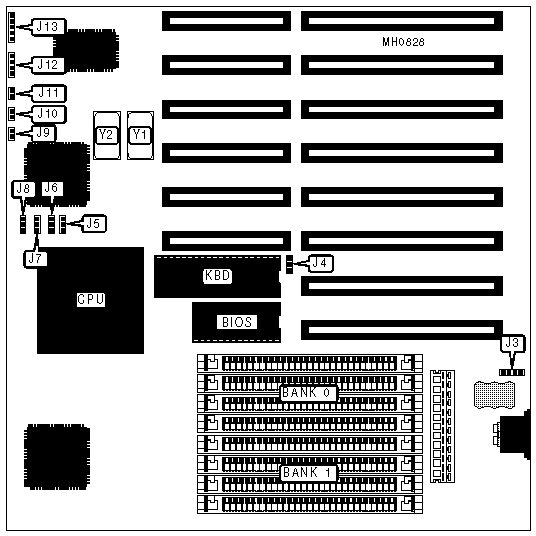

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| External battery | J3 | Turbo LED | J11 |
|------------------+----------+-------------------+----------|
| Reset switch | J9 | Speaker | J12 |
|------------------+----------+-------------------+----------|
| Turbo switch | J10 | Power LED & | J13 |
| | | keylock | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Monitor type select color | J4 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | J4 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | J8 | N/A |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 1M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 17MB | (4) 4M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 20MB | (4) 4M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | J5 | J6 | J7 |
|---------+----------------+----------------+----------------|
| 80486SX | pins 2 & 3 | pins 2 & 3 | Open |
| | closed | closed | |
|---------+----------------+----------------+----------------|
| 80487SX | pins 1 & 2 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed |
|---------+----------------+----------------+----------------|
| 80486DX | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 |
| | closed | closed | closed |
+------------------------------------------------------------+
