# UNITRON COMPUTER, INC.
80486DX-33/50
Processor 80486DX
Processor Speed 33/50MHz
Chip Set UMC
Max. Onboard DRAM 32MB
Cache 64/128/256KB
BIOS Phoenix
Dimensions 330mm x 218mm
I/O Options None
NPU Options 4167

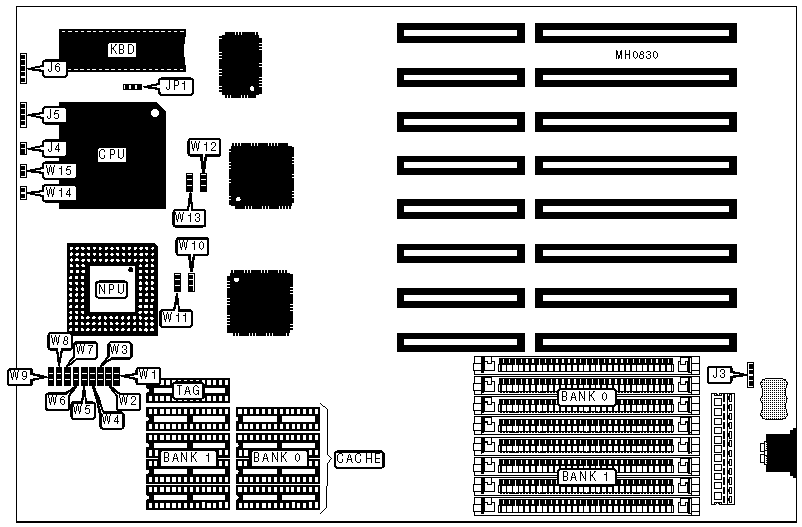

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| External battery | J3 | Power LED & | J6 |
| | | keylock | |
|------------------+----------+-------------------+----------|
| Turbo switch | J4 | Reset switch | W14 |
|------------------+----------+-------------------+----------|
| Speaker | J5 | Turbo LED | W15 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| » | Monitor type select color | JP1 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select monochrome | JP1 | pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 1M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 17MB | (4) 4M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 20MB | (4) 4M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG |
|------------+---------------+---------------+---------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | (1) 8K x 8 |
|------------+---------------+---------------+---------------|
| 128KB | (4) 32K x 8 | Bank 0 | (1) 8K x 8 |
|------------+---------------+---------------+---------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 | (1) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | W1 | W2 | W3 | W4 | W5 |
|----------+----------+----------+---------+--------+--------|
| 64KB | Open | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 |
|----------+----------+----------+---------+--------+--------|
| 128KB | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 | 1 & 2 |
|----------+----------+----------+---------+--------+--------|
| 256KB | 2 & 3 | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | W6 | W7 | W8 | W9 |
|-------+-------------+------------+------------+------------|
| 64KB | Open | Open | Open | Open |
|-------+-------------+------------+------------+------------|
| 128KB | pins 1 & 2 | Open | pins 2 & 3 | Open |
| | closed | | closed | |
|-------+-------------+------------+------------+------------|
| 256KB | pins 1 & 2 | pins 1 & 2 | pins 2 & 3 | pins 2 & 3 |
| | closed | closed | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | W10 | W11 | W12 | W13 |
|---------+------------+------------+------------+-----------|
| 80486SX | pins 2 & 3 | pins 2 & 3 | pins 2 & 3 | pins 2 & |
| | closed | closed | closed | 3 closed |
|---------+------------+------------+------------+-----------|
| 80487SX | pins 2 & 3 | pins 2 & 3 | pins 1 & 2 | pins 1 & |
| | closed | closed | closed | 2 closed |
|---------+------------+------------+------------+-----------|
| 80486DX | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 | pins 1 & |
| | closed | closed | closed | 2 closed |
+------------------------------------------------------------+
