       # UNITRON COMPUTER, INC.

          486SX SYSTEM

          Processor        80486SX/80486DX
          Processor Speed  25/33MHz
          Chip Set         UMC
          Max. Onboard     32MB
          DRAM
          SRAM Cache       32/128KB
          BIOS             Phoenix
          Dimensions       346mm x 218mm
          I/O Options      Floppy drive interface, game port, IDE
                           interface, modem interface, parallel port,
                           serial port (2), VGA port
          NPU Options      4167 (location unverified)

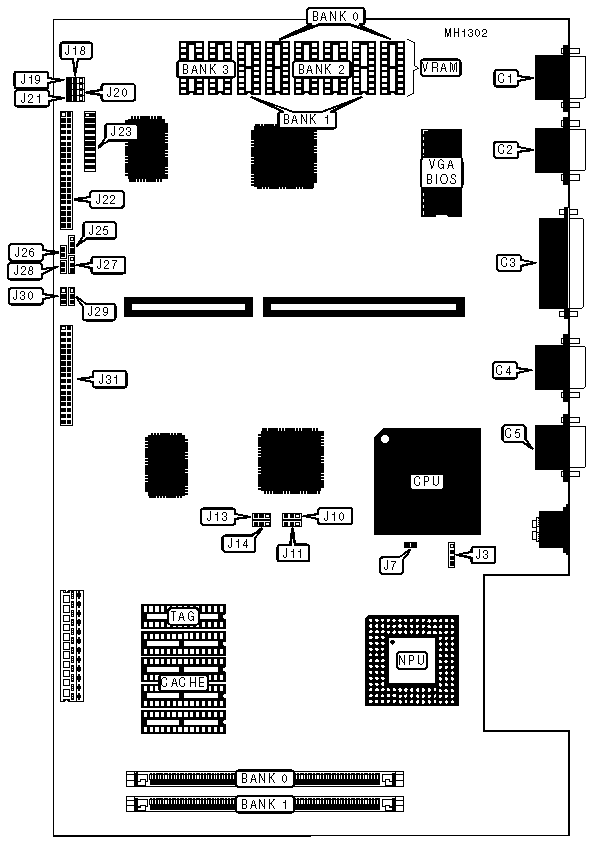

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose       | Location | Purpose              | Location |
          |---------------+----------+----------------------+----------|
          | Game port     |    C1    | IDE interface        |   J22    |
          |---------------+----------+----------------------+----------|
          | VGA port      |    C2    | Modem interface      |   J23    |
          |---------------+----------+----------------------+----------|
          | Parallel port |    C3    | Turbo LED            |   J26    |
          |---------------+----------+----------------------+----------|
          | Serial port 2 |    C4    | Power LED            |   J28    |
          |---------------+----------+----------------------+----------|
          | Serial port 1 |    C5    | Floppy drive         |   J31    |
          |               |          | interface            |          |
          |---------------+----------+----------------------+----------|
          | Fan power     |    J3    |                      |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Function               | Jumper |  Position  |
          |--------------------------------------+--------+------------|
          | » | Serial port 1 (CN5) enabled      |  J18   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | Serial port 1 (CN5) disabled     |  J18   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Serial port 1 (CN5) select COM1  |  J19   | pins 1 & 2 |
          |   | (I/O address 3F8-3FFh)           |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | Serial port 1 (CN5) select COM3  |  J19   | pins 2 & 3 |
          |   | (I/O address 3E8-3EFh)           |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Parallel port (C3) select LPT1   |  J20   | pins 1 & 2 |
          |   | interrupt IRQ7 at 378-37F        |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | Parallel port (C3) select LPT2   |  J20   | pins 2 & 3 |
          |   | interrupt IRQ5 at 278-27F        |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Parallel port (CN3) enabled      |  J21   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | Parallel port (CN3) disabled     |  J21   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | IDE interface (J22) enabled      |  J25   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | IDE interface (J22) disabled     |  J25   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Floppy drive interface (J31)     |  J27   | pins 1 & 2 |
          |   | enabled                          |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | Floppy drive interface (J31)     |  J27   | pins 2 & 3 |
          |   | disabled                         |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Serial port 2 (CN4) select COM2  |  J29   | pins 1 & 2 |
          |   | (I/O address 2F8-2FFh)           |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | Serial port 2 (CN4) select COM4  |  J29   | pins 2 & 3 |
          |   | (I/O address 2E8-2EFh)           |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Serial port 2 (CN4) enabled      |  J30   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | Serial port 2 (CN4) disabled     |  J30   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       1MB        |   (1) 256K x 36    |        NONE        |
          |------------------+--------------------+--------------------|
          |       2MB        |   (1) 256K x 36    |   (1) 256K x 36    |
          |------------------+--------------------+--------------------|
          |       3MB        |   (1) 512K x 36    |   (1) 256K x 36    |
          |------------------+--------------------+--------------------|
          |       4MB        |    (1) 1M x 36     |        NONE        |
          |------------------+--------------------+--------------------|
          |       5MB        |   (1) 256K x 36    |    (1) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       8MB        |    (1) 1M x 36     |    (1) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       12MB       |    (1) 2M x 36     |    (1) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       16MB       |    (1) 2M x 36     |    (1) 2M x 36     |
          |------------------+--------------------+--------------------|
          |       32MB       |    (1) 4M x 36     |    (1) 4M x 36     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   CPU TYPE CONFIGURATION                   |
          |------------------------------------------------------------|
          |   CPU    |        JP1        |             JP2             |
          |----------+-------------------+-----------------------------|
          | 80486DX  | pins 1 & 2 closed | pins 1 & 2 and 3 & 4 closed |
          |----------+-------------------+-----------------------------|
          | 80486SX  |       open        |      pins 2 & 3 closed      |
          |------------------------------------------------------------|
          | Note:The location of jumpers JP1 and JP2 is unknown.       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 SRAM JUMPER CONFIGURATION                  |
          |------------------------------------------------------------|
          | Size  |   J7   |   J10    |   J11    |   J13    |   J14    |
          |-------+--------+----------+----------+----------+----------|
          | 32KB  |  open  | pins 1 & | pins 1 & | pins 1 & | pins 1 & |
          |       |        |    2     |    2     |    2     |    2     |
          |-------+--------+----------+----------+----------+----------|
          | 128KB | closed | pins 2 & | pins 2 & | pins 2 & | pins 2 & |
          |       |        |    3     |    3     |    3     |    3     |
          |------------------------------------------------------------|
          | Note:Pins designated should be in the closed postion.      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     SRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |    Size    |  Cache SRAM   |   Location    |      TAG      |
          |------------+---------------+---------------+---------------|
          |    32KB    |  (4) 8K x 8   |     CACHE     |  (1) 8K x 8   |
          |------------+---------------+---------------+---------------|
          |   128KB    |  (4) 32K x 8  |     CACHE     |  (1) 32K x 8  |
          |------------------------------------------------------------|
          | Note:This configuartion is unverified.                     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     VRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |      Size       |        VRAM        |      Location       |
          |-----------------+--------------------+---------------------|
          |      256KB      |     (2) 44256      |       Bank 0        |
          |-----------------+--------------------+---------------------|
          |      512KB      |     (4) 44256      |     Banks 0 & 1     |
          |-----------------+--------------------+---------------------|
          |       1MB       |     (8) 44256      | Banks 0, 1, 2 and 3 |
          +------------------------------------------------------------+
