GMB-386SAL
Processor 80386SX/CX486SLC
Processor Speed 25/33MHz
Chip Set ALI
Max. Onboard DRAM 16MB
Cache None
BIOS AMI
Dimensions 220mm x 170mm
I/O Options None
NPU Options 80387SX/CX83S87/3167

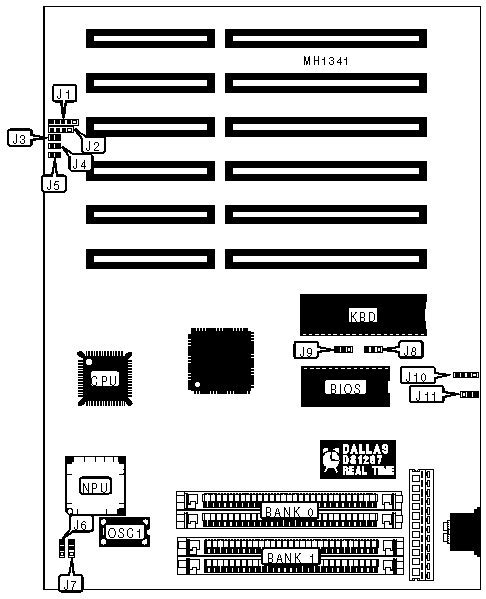

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Power LED & | J1 | Turbo switch | J4 |
| keylock | | | |
|-------------------+----------+------------------+----------|
| Speaker | J2 | Reset switch | J5 |
|-------------------+----------+------------------+----------|
| Turbo LED | J3 | External battery | J10 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | NPU mode select synchronous with | J6 | pins 1 & 2 |
| | CPU | | closed |
|---+----------------------------------+--------+------------|
| | NPU mode select synchronous with | J6 | pins 2 & 3 |
| | oscillator installed at OSC1 | | closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | J8 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | J8 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Battery type select internal | J11 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Battery type select external | J11 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 51KB | (2) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 1MB | (2) 256K x 9 | (2) 256K x 9 |
|------------------+--------------------+--------------------|
| 2MB | (2) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (2) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 16MB | (2) 4M x 9 | (2) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | J7 | J9 |
|------------------+--------------------+--------------------|
| 25MHz | pins 1 & 2 closed | pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 33MHz | pins 2 & 3 closed | pins 2 & 3 closed |
+------------------------------------------------------------+
