# UNIDENTIFIED
ELT 386B-200B
Processor 80386DX
Processor Speed 16MHz
Chip Set C & T
Max. onboard DRAM 16MB
SRAM Cache None
BIOS AMI
Dimensions 330mm x 218mm
I/O Options 32-bit proprietary memory card
NPU Options 80287/80387DX
IMG IMG 1
+------------------------------------------------------------+

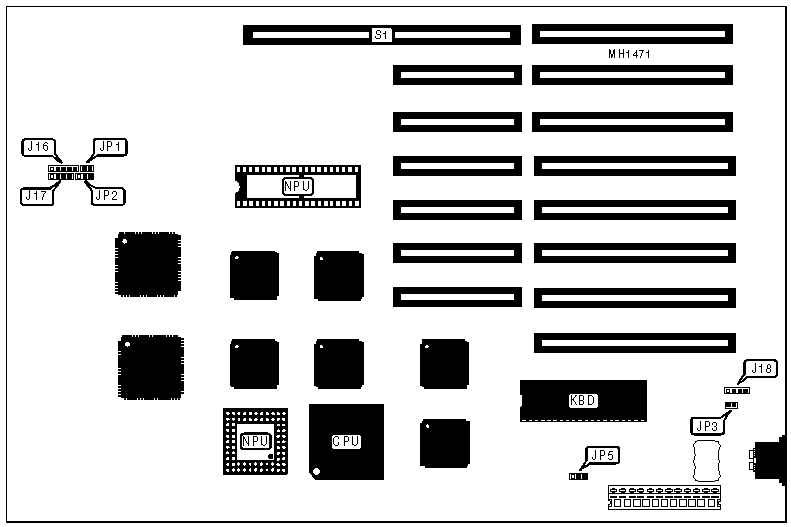

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------+----------+----------------------+----------|
| Reset switch | JP1 | External battery | J18 |
|---------------+----------+----------------------+----------|
| Power LED & | J16 | 32-bit proprietary | S1 |
| keylock | | memory card | |
|---------------+----------+----------------------+----------|
| Speaker | J17 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper/Switch | Position |
|-------------------------------+---------------+------------|
| » | NPU select 80387 | JP2 | pins 2 & 3 |
| | | | closed |
|---+---------------------------+---------------+------------|
| | NPU select 80287 | JP2 | pins 1 & 2 |
| | | | closed |
|---+---------------------------+---------------+------------|
| » | Monitor type select color | JP3 | Closed |
|---+---------------------------+---------------+------------|
| | Monitor type select | JP3 | Open |
| | monochrome | | |
|---+---------------------------+---------------+------------|
| » | CMOS memory normal | JP5 | pins 1 & 2 |
| | operation | | closed |
|---+---------------------------+---------------+------------|
| | CMOS memory clear | JP5 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
IMG IMG 2
IMG IMG 3
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 1MB | (36) 41256 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 2MB | (36) 41256 | (36) 41256 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 4MB | (36) 41256 | (36) 41256 | (36) 41256 | (36) 41256 |
|------+-------------+-------------+------------+------------|
| 4MB | (36) 411000 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 8MB | (36) 411000 | (36) 411000 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 10MB | (36) 411000 | (36) 411000 | (36) 41256 | (36) 41256 |
|------+-------------+-------------+------------+------------|
| 16MB | (36) 411000 | (36) 411000 | (36) | (36) |
| | | | 411000 | 411000 |
+------------------------------------------------------------+
