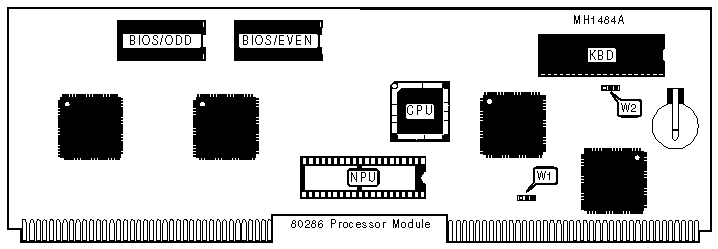

# WELLS AMERICAN CORPORATION
COMPUSTAR II
Processor 80286
Processor Speed 20MHz
Chip Set C & T
Max. Onboard DRAM 8MB
SRAM Cache None
BIOS Award/Wells American
Dimensions 330mm x 127mm
I/O Options Processor Interface Slot
NPU Options 80287
IMG IMG 1
+------------------------------------------------------------+

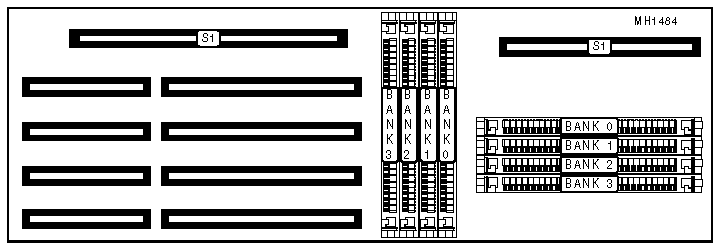

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location |
|-----------------------------------------+------------------|
| Processor Interface Slot | S1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 512KB | (2) 256K x | NONE | NONE | NONE |
| | 9 | | | |
|-------+-------------+------------+------------+------------|
| 1MB | (2) 256K x | (2) 256K x | NONE | NONE |
| | 9 | 9 | | |
|-------+-------------+------------+------------+------------|
| 1.5MB | (2) 256K x | (2) 256K x | (2) 256K x | NONE |
| | 9 | 9 | 9 | |
|-------+-------------+------------+------------+------------|
| 2MB | (2) 256K x | (2) 256K x | (2) 256K x | (2) 256K x |
| | 9 | 9 | 9 | 9 |
|-------+-------------+------------+------------+------------|
| 2MB | (2) 1M x9 | NONE | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 3MB | (2) 1M x 9 | (2) 256K | (2) 256K x | NONE |
| | | x9 | 9 | |
|-------+-------------+------------+------------+------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 5MB | (2) 1M x9 | (2) 1M x9 | (2) 256K x | (2) 256K x |
| | | | 9 | 9 |
|-------+-------------+------------+------------+------------|
| 6MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | NONE |
|-------+-------------+------------+------------+------------|
| 8MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
+------------------------------------------------------------+
IMG IMG 2
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper/Switch | Position |
|-------------------------------+---------------+------------|
| » | IRQ12 select I/O channel | W1 | pins 2 & 3 |
| | | | closed |
|---+---------------------------+---------------+------------|
| | IRQ12 select mouse port | W1 | pins 1 & 2 |
| | | | closed |
|---+---------------------------+---------------+------------|
| » | Monitor type select color | W2 | pins 2 & 3 |
| | | | closed |
|---+---------------------------+---------------+------------|
| | Monitor type select | W2 | pins 1 & 2 |
| | monochrome | | closed |
+------------------------------------------------------------+
