# UNIDENTIFIED
386/32
Processor 80386DX
Processor Speed 16/20MHz
Chip Set C & T
Max. onboard DRAM 8MB
Cache None
BIOS AMI
Dimensions 330mm x 218mm
I/O Options 32-bit external memory card
NPU Options 80387DX

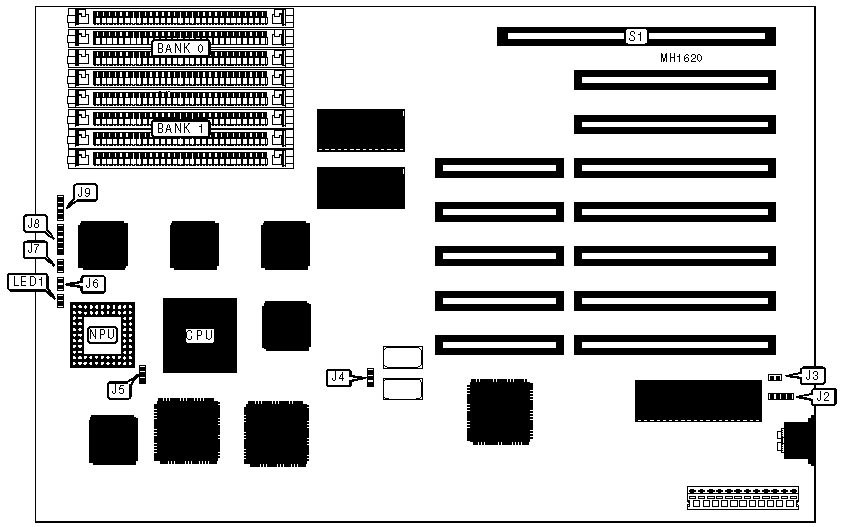

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| External battery | J2 | Speaker | J9 |
|-------------------+----------+------------------+----------|
| Turbo switch | J6 | Turbo LED | LED1 |
|-------------------+----------+------------------+----------|
| Reset switch | J7 | 32-bit external | S1 |
| | | memory card | |
|-------------------+----------+------------------+----------|
| Power LED & | J8 | | |
| keylock | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| » | Monitor type select monochrome | J3 | Closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select color | J3 | Open |
|---+--------------------------------+--------+--------------|
| » | CPU speed select 16MHz | J4 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | CPU speed select 20MHz | J4 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| » | NPU disabled | J5 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | NPU enabled | J5 | pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 256K x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
+------------------------------------------------------------+
