# UNIDENTIFIED
10MHz BABY AT
Processor 80286 (Exact location unknown)
Processor Speed 6/10MHz
Chip Set C & T
Max. Onboard DRAM 1MB
Cache None
BIOS Unknown
Dimensions 330mm x 218mm
I/O Options None
NPU Options None

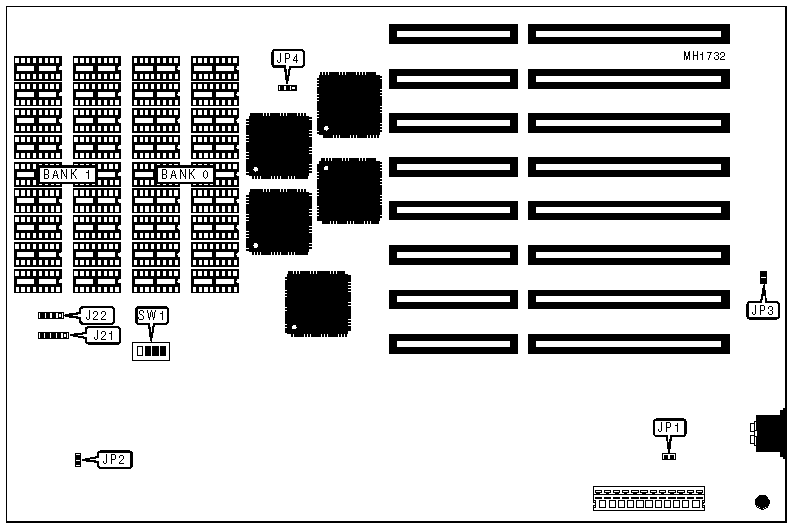

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| Power LED & keylock | J21 | Reset switch | JP1 |
|---------------------+----------+----------------+----------|
| Speaker | J22 | Turbo switch | JP3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper/Switch | Position |
|-------------------------------+---------------+------------|
| » | Factory configured - do | JP2 | N/A |
| | not alter | | |
|---+---------------------------+---------------+------------|
| » | BIOS type select 27128 | JP4 | pins 2 & 3 |
| | | | closed |
|---+---------------------------+---------------+------------|
| | BIOS type select 27256 | JP4 | pins 1 & 2 |
| | | | closed |
|---+---------------------------+---------------+------------|
| » | Factory configured - do | SW1/1 | N/A |
| | not alter | | |
|---+---------------------------+---------------+------------|
| » | Monitor type select color | SW1/2 | On |
|---+---------------------------+---------------+------------|
| | Monitor type select | SW1/2 | Off |
| | monochrome | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 256KB | (9) 4164, 41256 | (9) 4164, 41256 |
|------------------+--------------------+--------------------|
| 512KB | (9) 41256 | NONE |
|------------------+--------------------+--------------------|
| 640KB | (9) 41256 | (9) 4164, 41256 |
|------------------+--------------------+--------------------|
| 1MB | (9) 41256 | (9) 41256 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | SW1/3 | SW1/4 |
|--------------------+-------------------+-------------------|
| 256KB | On | On |
|--------------------+-------------------+-------------------|
| 512KB | Off | On |
|--------------------+-------------------+-------------------|
| 640KB | On | Off |
|--------------------+-------------------+-------------------|
| 1MB | Off | Off |
+------------------------------------------------------------+
