# UNIDENTIFIED
SPRING COMPACT 2000
Processor 80286
Processor Speed 10/12MHz
Chip Set SUNTAC
Max. Onboard DRAM 4MB
Cache None
BIOS Award/Phoenix
Dimensions 330mm x 218mm
I/O Options None
NPU Options None

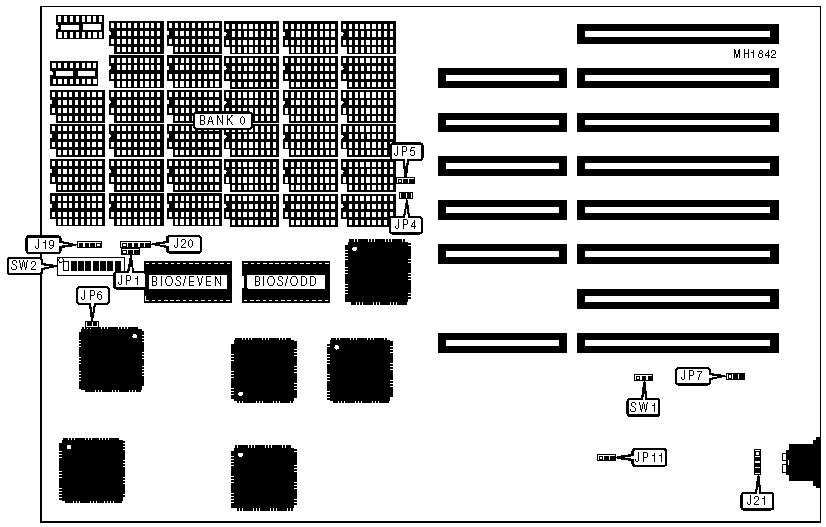

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| Speaker | J19 | Turbo switch | JP4 |
|---------------------+----------+----------------+----------|
| Power LED & keylock | J20 | Turbo LED | JP5 |
|---------------------+----------+----------------+----------|
| External battery | J21 | Reset | JP6 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper/Switch | Position |
|-------------------------------+---------------+------------|
| | Turbo switch select | JP1 | Open |
| | software | | |
|----+--------------------------+---------------+------------|
| | Turbo switch select | JP1 | Closed |
| | hardware | | |
|----+--------------------------+---------------+------------|
| | Phoenix BIOS installed | JP7 | pins 1 & 2 |
| | | | closed |
|----+--------------------------+---------------+------------|
| | Award BIOS installed | JP7 | pins 2 & 3 |
| | | | closed |
|----+--------------------------+---------------+------------|
| » | Monitor type select | SW1 | pins 2 & 3 |
| | color | | closed |
|----+--------------------------+---------------+------------|
| | Monitor type select | SW1 | pins 1 & 2 |
| | monochrome | | closed |
|----+--------------------------+---------------+------------|
| » | Factory configured - do | SW2/1 | N/A |
| | not alter | | |
|----+--------------------------+---------------+------------|
| » | Factory configured - do | SW2/2 | N/A |
| | not alter | | |
|----+--------------------------+---------------+------------|
| | I/O bus speed select 4 | SW2/3 | On |
| | wait states | | |
|----+--------------------------+---------------+------------|
| | I/O bus speed select 6 | SW2/3 | Off |
| | wait states | | |
|----+--------------------------+---------------+------------|
| | EMS port address | SW2/4 | On |
| | OE8-OEFH | | |
|----+--------------------------+---------------+------------|
| | EMS port address | SW2/4 | Off |
| | 098-09FH | | |
|----+--------------------------+---------------+------------|
| » | Factory configured - do | SW2/5 | N/A |
| | not alter | | |
|------------------------------------------------------------|
| Note: When turbo switch is set to software, use keys |
| <CTRL> <ALT> <1> or <CTRL> <ALT> <->pressed simultaneously |
| for high speed and <CTRL> <ALT> <2> or <CTRL> <ALT> <+> to |
| set to low speed. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | SW2/6 | SW2/7 | SW2/8 |
|--------+-------------+-------------+-------+-------+-------|
| 512KB | (18) 41256 | NONE | On | On | On |
|--------+-------------+-------------+-------+-------+-------|
| 640KB | (18) 41256 | (18) 4164 | On | On | Off |
|--------+-------------+-------------+-------+-------+-------|
| 1MB | (18) 41256 | (18) 41256 | On | Off | On |
|--------+-------------+-------------+-------+-------+-------|
| 2MB | (18) 411000 | NONE | Off | On | On |
|--------+-------------+-------------+-------+-------+-------|
| 4MB | (18) 411000 | (18) 411000 | Off | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VESA WAIT STATE/BUS SPEED CONFIGURATION |
|------------------------------------------------------------|
| CPU speed | Wait states | JP11 |
|--------------------+--------------------+------------------|
| £ 33MHz | 0 wait states | Closed |
|--------------------+--------------------+------------------|
| > 33MHz | 1 wait state | Open |
+------------------------------------------------------------+
