# UNIDENTIFIED
CGS 386
Processor 80386DX(exact location unknown)
Processor Speed 25/33/40MHz
Chip Set Unidentified
Max. Onboard DRAM 32MB
Cache None
BIOS AMI
Dimensions 330mm x 218mm
I/O Options None
NPU Options 3167

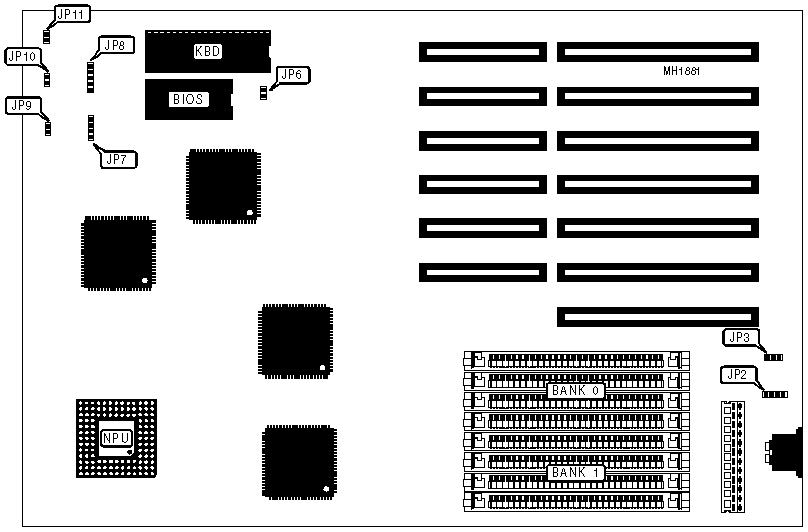

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| External battery | JP2 | Reset switch | JP9 |
|---------------------+----------+----------------+----------|
| Speaker | JP7 | Turbo switch | JP10 |
|---------------------+----------+----------------+----------|
| Keylock & power LED | JP8 | Turbo LED | JP11 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|-------------------------------+--------+-------------------|
| » | Monitor type select | JP6 | Open |
| | monochrome | | |
|---+---------------------------+--------+-------------------|
| | Monitor type select color | JP6 | Closed |
|---+---------------------------+--------+-------------------|
| » | CMOS memory normal | JP3 | pins 1 & 2 closed |
| | operation | | |
|---+---------------------------+--------+-------------------|
| | CMOS memory clear | JP3 | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 256K x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 17MB | (4) 256K x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 20MB | (4) 1M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
