# UNIDENTIFIED
386DX CACHE MAINBOARD
Processor 80386DX
Processor Speed 33/40MHz
Chip Set OPTI
Max. Onboard DRAM 32MB
Cache 128KB
BIOS AMI
Dimensions 220mm x 170mm
I/O Options None
NPU Options 80387DX

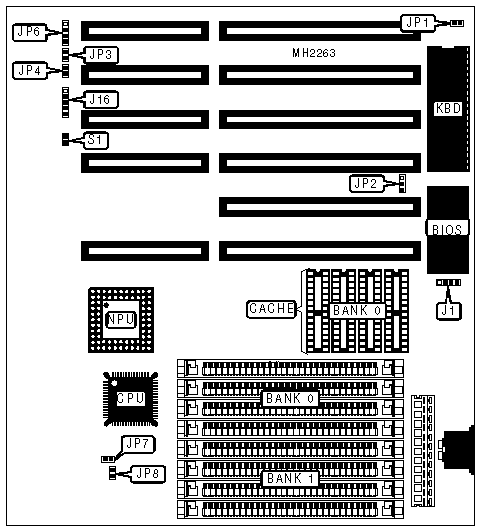

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| External battery | J1 | Turbo switch | JP4 |
|---------------------+----------+----------------+----------|
| Power LED & keylock | J16 | Speaker | JP6 |
|---------------------+----------+----------------+----------|
| Turbo LED | JP3 | Reset switch | S1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| » | Monitor type select monochrome | JP1 | Open |
|---+--------------------------------+--------+--------------|
| | Monitor type select color | JP1 | Closed |
|---+--------------------------------+--------+--------------|
| » | CMOS memory normal operation | JP2 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | CMOS memory clear | JP2 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|----------------------------+-------------------------------|
| 128KB | (4) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | JP7 | JP8 |
|-------------------+--------------------+-------------------|
| 50MHz | Closed | Open |
|-------------------+--------------------+-------------------|
| 66MHz | Open | Closed |
|-------------------+--------------------+-------------------|
| 80MHz | Open | Open |
+------------------------------------------------------------+
