# UNIDENTIFIED
MAT 286
Processor 80286
Processor Speed 12/16MHz
Chip Set Unidentified
Max. Onboard DRAM 4MB
Cache None
BIOS Quadtel
Dimensions 220mm x 220mm
I/O Options None
NPU Options 80287

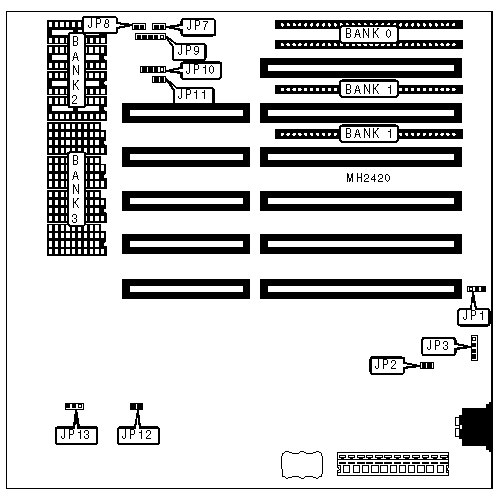

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| External battery | JP3 | Power LED & | JP9 |
| | | keylock | |
|------------------+----------+-------------------+----------|
| Turbo switch | JP7 | Speaker | JP10 |
|------------------+----------+-------------------+----------|
| Reset switch | JP8 | Turbo LED | JP11 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| » | Turbo switch enabled | JP1 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | Turbo switch disabled | JP1 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| » | Monitor type select color | JP2 | Closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select monochrome | JP2 | Open |
|---+--------------------------------+--------+--------------|
| » | AT bus clock speed select Y3/4 | JP12 | Closed |
|---+--------------------------------+--------+--------------|
| | AT bus clock speed select Y2/4 | JP12 | Open |
|---+--------------------------------+--------+--------------|
| » | NPU speed select Y3/3 | JP13 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | NPU speed select Y4/3 | JP13 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 512KB | NONE | NONE | (4) 44256 | NONE |
|-------+-------------+------------+------------+------------|
| 512KB | (2) 256K x | NONE | NONE | NONE |
| | 9 | | | |
|-------+-------------+------------+------------+------------|
| 640KB | NONE | NONE | (4) 44256 | (4) 4464 |
|-------+-------------+------------+------------+------------|
| 1MB | NONE | NONE | (4) 44256 | (4) 44256 |
|-------+-------------+------------+------------+------------|
| 2MB | (2) 1M x 9 | NONE | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 2MB | NONE | NONE | (4) 441000 | NONE |
|-------+-------------+------------+------------+------------|
| 2.5MB | NONE | NONE | (4) 44256 | (4) 441000 |
|-------+-------------+------------+------------+------------|
| 2.5MB | NONE | (2) 1M x 9 | (4) 44256 | NONE |
|-------+-------------+------------+------------+------------|
| 4MB | NONE | NONE | (4) 441000 | (4) 441000 |
|-------+-------------+------------+------------+------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 | NONE | NONE |
+------------------------------------------------------------+
