# UNIDENTIFIED
PANTHER 386SX
Processor 80386SX
Processor Speed 16/20MHz
Chip Set Unidentified
Max. Onboard DRAM 32MB
Cache None
BIOS AMI
Dimensions 330mm x 218mm
I/O Options None
NPU Options 80387SX

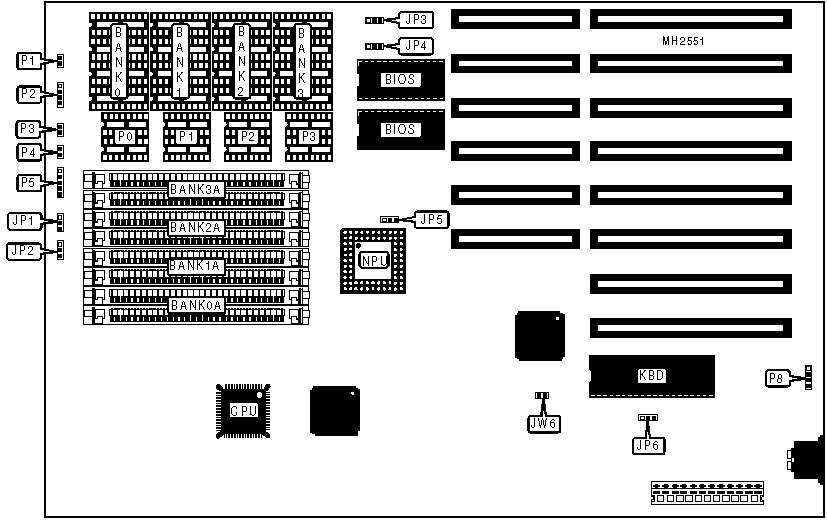

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------+----------+---------------------+----------|
| Reset switch | P1 | Turbo LED | P4 |
|----------------+----------+---------------------+----------|
| Speaker | P2 | Power LED & keylock | P5 |
|----------------+----------+---------------------+----------|
| Turbo switch | P3 | External battery | P8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Factory configured - do not | JP1 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Parity check enabled | JP2 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Parity check disabled | JP2 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP5 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Monitor type select monochrome | JP6 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select CGA/EGA/VGA | JP6 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | CMOS memory normal operation | JW6 | Open |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | JW6 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (SIMM) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|--------+------------+------------+------------+------------|
| 2MB | (2) 1M x 9 | NONE | NONE | NONE |
|--------+------------+------------+------------+------------|
| 3MB | (2) 256K x | (2) 256K x | (2) 1M x 9 | NONE |
| | 9 | 9 | | |
|--------+------------+------------+------------+------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 | NONE | NONE |
|--------+------------+------------+------------+------------|
| 4.5MB | (2) 1M x 9 | (2) 1M x 9 | (2) 256K x | NONE |
| | | | 9 | |
|--------+------------+------------+------------+------------|
| 5MB | (2) 256K x | (2) 256K x | (2) 1M x 9 | (2) 1M x 9 |
| | 9 | 9 | | |
|--------+------------+------------+------------+------------|
| 6MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | NONE |
|--------+------------+------------+------------+------------|
| 8MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
|--------+------------+------------+------------+------------|
| 8MB | (2) 4M x 9 | NONE | NONE | NONE |
|--------+------------+------------+------------+------------|
| 9MB | (2) 256K x | (2) 256K x | (2) 4M x 9 | NONE |
| | 9 | 9 | | |
|--------+------------+------------+------------+------------|
| 10MB | (2) 1M x 9 | (2) 4M x 9 | NONE | NONE |
|--------+------------+------------+------------+------------|
| 12MB | (2) 1M x 9 | (2) 1M x 9 | (2) 4M x 9 | NONE |
|--------+------------+------------+------------+------------|
| 16MB | (2) 4M x 9 | (2) 4M x 9 | NONE | NONE |
|--------+------------+------------+------------+------------|
| 16.5MB | (2) 4M x 9 | (2) 4M x 9 | (2) 256K x | NONE |
| | | | 9 | |
|--------+------------+------------+------------+------------|
| 17MB | (2) 256K x | (2) 256K x | (2) 4M x 9 | (2) 4M x 9 |
| | 9 | 9 | | |
|--------+------------+------------+------------+------------|
| 18MB | (2) 4M x 9 | (2) 4M x 9 | (2) 1M x 9 | NONE |
|--------+------------+------------+------------+------------|
| 20MB | (2) 1M x 9 | (2) 1M x 9 | (2) 4M x 9 | (2) 4M x 9 |
|--------+------------+------------+------------+------------|
| 24MB | (2) 4M x 9 | (2) 4M x 9 | (2) 4M x 9 | NONE |
|--------+------------+------------+------------+------------|
| 32MB | (2) 4M x 9 | (2) 4M x 9 | (2) 4M x 9 | (2) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (DIP) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|--------+------------+------------+------------+------------|
| 512KB | (4) 44256 | NONE | NONE | NONE |
|--------+------------+------------+------------+------------|
| 1MB | (4) 44256 | (4) 44256 | NONE | NONE |
|--------+------------+------------+------------+------------|
| 1.5MB | (4) 44256 | (4) 44256 | (4) 44256 | NONE |
|--------+------------+------------+------------+------------|
| 2MB | (4) 44256 | (4) 44256 | (4) 44256 | (4) 44256 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM PARITY CONFIGURATION (DIP) |
|------------------------------------------------------------|
| Size | Parity 0 | Parity 1 | Parity 2 | Parity 3 |
|--------+------------+------------+------------+------------|
| 512KB | (2) 41256 | NONE | NONE | NONE |
|--------+------------+------------+------------+------------|
| 1MB | (2) 41256 | (2) 41256 | NONE | NONE |
|--------+------------+------------+------------+------------|
| 1.5MB | (2) 41256 | (2) 41256 | (2) 41256 | NONE |
|--------+------------+------------+------------+------------|
| 2MB | (2) 41256 | (2) 41256 | (2) 41256 | (2) 41256 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIOS CONFIGURATION |
|------------------------------------------------------------|
| Size | JP3 | JP4 |
|------------------+--------------------+--------------------|
| » | 27128 | pins 1 & 2 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| » | 27256 | pins 2 & 3 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| » | 27512 | pins 2 & 3 closed | pins 2 & 3 closed |
+------------------------------------------------------------+
