# UNIDENTIFIED
CMC-386
Processor 80386SX
Processor Speed 16MHz
Chip Set Unidentified
Max. Onboard DRAM 8MB
Cache None
BIOS Unidentified
Dimensions 330mm x 218mm
I/O Options None
NPU Options 80287

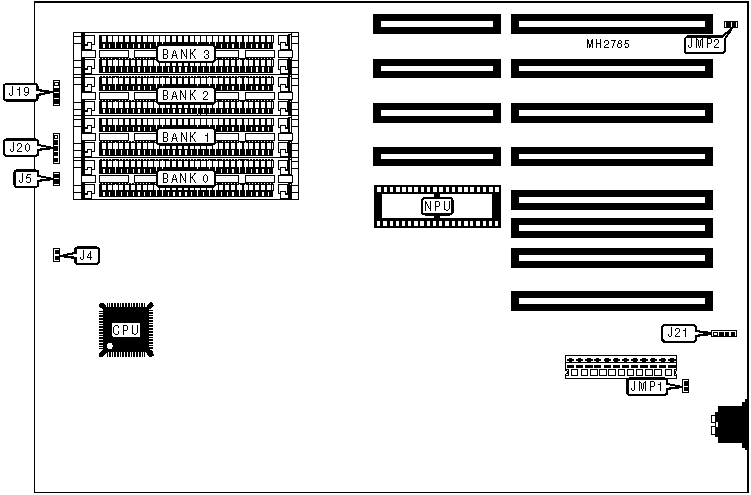

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------+----------+---------------------+----------|
| Reset switch | J5 | Power LED & keylock | J20 |
|----------------+----------+---------------------+----------|
| Speaker | J19 | External battery | J21 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+---------+-----------|
| » | AF32 enabled | J4 | Closed |
|---+----------------------------------+---------+-----------|
| | AF32 disabled | J4 | Open |
|---+----------------------------------+---------+-----------|
| » | Monitor type select color | JMP1 | Closed |
|---+----------------------------------+---------+-----------|
| | Monitor type select monochrome | JMP1 | Open |
|---+----------------------------------+---------+-----------|
| » | NPU disabled | JMP2 | Open |
|---+----------------------------------+---------+-----------|
| | NPU enabled | JMP2 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 512KB | (2) 256K x | NONE | NONE | NONE |
| | 9 | | | |
|-------+-------------+------------+------------+------------|
| 1MB | (2) 256K x | (2) 256K x | NONE | NONE |
| | 9 | 9 | | |
|-------+-------------+------------+------------+------------|
| 1.5MB | (2) 256K x | (2) 256K x | (2) 256K x | NONE |
| | 9 | 9 | 9 | |
|-------+-------------+------------+------------+------------|
| 2MB | (2) 256K x | (2) 256K x | (2) 256K x | (2) 256K x |
| | 9 | 9 | 9 | 9 |
|-------+-------------+------------+------------+------------|
| 2MB | (2) 1M x 9 | NONE | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 2.5MB | (2) 1M x 9 | (2) 256K x | NONE | NONE |
| | | 9 | | |
|-------+-------------+------------+------------+------------|
| 3MB | (2) 1M x 9 | (2) 256K x | (2) 256K x | NONE |
| | | 9 | 9 | |
|-------+-------------+------------+------------+------------|
| 3.5MB | (2) 1M x 9 | (2) 256K x | (2) 256K x | (2) 256K x |
| | | 9 | 9 | 9 |
|-------+-------------+------------+------------+------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 6MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | NONE |
|-------+-------------+------------+------------+------------|
| 8MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
+------------------------------------------------------------+
