# UNIDENTIFIED
LM403
Processor 80286
Processor Speed 16/20MHz
Chip Set Acer
Max. Onboard DRAM 4MB
Cache None
BIOS AMI
Dimensions 240mm x 218mm
I/O Options None
NPU Options 80287
IMG IMG 1
+------------------------------------------------------------+

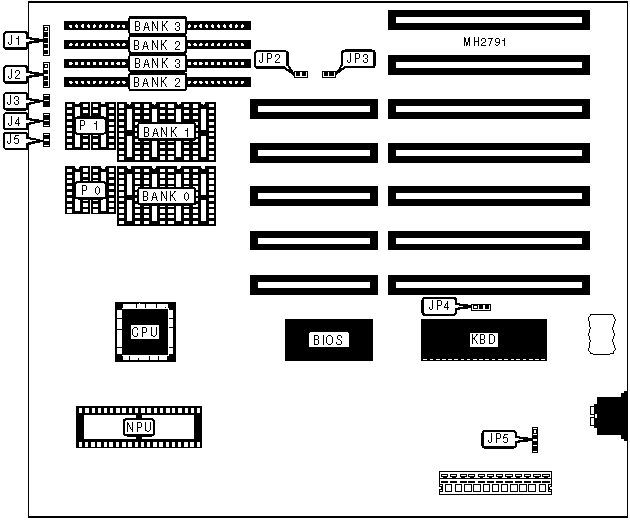

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Power LED & | J1 | Reset switch | J4 |
| keylock | | | |
|-------------------+----------+------------------+----------|
| Speaker | J2 | Turbo switch | J5 |
|-------------------+----------+------------------+----------|
| Turbo LED | J3 | External battery | JP5 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| » | I/O bus speed select ATCLK/4 | JP2 | Open |
|---+--------------------------------+--------+--------------|
| | I/O bus speed select ATCLK/2 | JP2 | Closed |
|---+--------------------------------+--------+--------------|
| » | Parity disabled | JP3 | Closed |
|---+--------------------------------+--------+--------------|
| | Parity enabled | JP3 | Open |
|---+--------------------------------+--------+--------------|
| » | Monitor type select monochrome | JP4 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select color | JP4 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Parity | Bank 1 | Parity | Bank 2 | Bank |
| | | 0 | | 1 | | 3 |
|-------+--------+--------+--------+--------+--------+-------|
| 512KB | (4) | (2) | NONE | NONE | NONE | NONE |
| | 44256 | 41256 | | | | |
|-------+--------+--------+--------+--------+--------+-------|
| 512KB | NONE | NONE | NONE | NONE | (2) | NONE |
| | | | | | 256K x | |
| | | | | | 9 | |
|-------+--------+--------+--------+--------+--------+-------|
| 1MB | (4) | (2) | (4) | (2) | NONE | NONE |
| | 44256 | 41256 | 44256 | 41256 | | |
|-------+--------+--------+--------+--------+--------+-------|
| 1MB | NONE | NONE | NONE | NONE | (2) | (2) |
| | | | | | 256K x | 256K |
| | | | | | 9 | x 9 |
|-------+--------+--------+--------+--------+--------+-------|
| 2MB | NONE | NONE | NONE | NONE | (2) 1M | NONE |
| | | | | | x 9 | |
|-------+--------+--------+--------+--------+--------+-------|
| 4MB | NONE | NONE | NONE | NONE | (2) 1M | (2) |
| | | | | | x 9 | 1M x |
| | | | | | | 9 |
+------------------------------------------------------------+
