# WYSE TECHNOLOGY, INC.
WYSE SERIES 6000I (MODEL 640)
Processor 80486SX
Processor Speed 33MHz
Chip Set Unidentified
Max. Onboard DRAM 16MB
Cache 128KB
BIOS Unidentified
Dimensions 330mm x 218mm
I/O Options None
NPU Options 4167

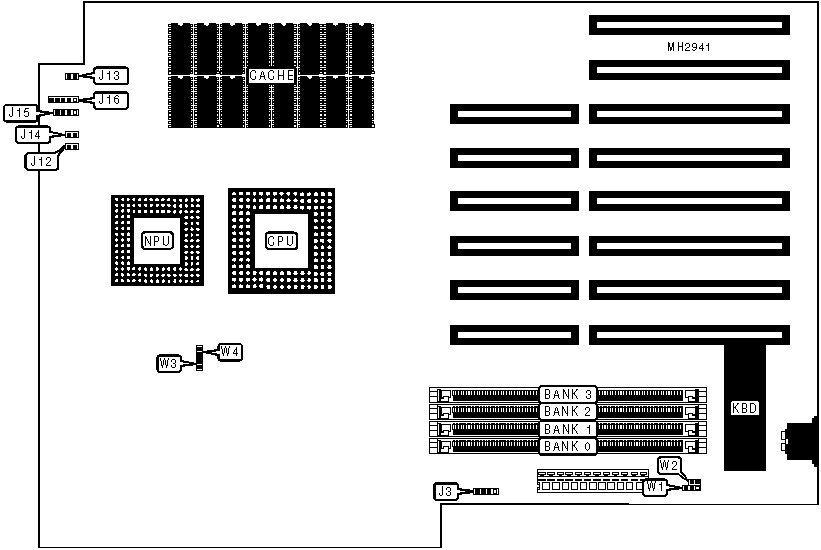

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| External battery | J3 | Turbo LED | J14 |
|------------------+----------+-------------------+----------|
| Reset switch | J12 | Speaker | J15 |
|------------------+----------+-------------------+----------|
| Turbo switch | J13 | Power LED & | J16 |
| | | keylock | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Monitor type select color | W1 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | W1 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | W2 | Open |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | W3 | Open |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | W4 | Open |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 1MB | (1) 256K x | NONE | NONE | NONE |
| | 36 | | | |
|------+-------------+-------------+------------+------------|
| 2MB | (1) 256K x | (1) 256K x | NONE | NONE |
| | 36 | 36 | | |
|------+-------------+-------------+------------+------------|
| 3MB | (1) 256K x | (1) 256K x | (1) 256K x | NONE |
| | 36 | 36 | 36 | |
|------+-------------+-------------+------------+------------|
| 4MB | (1) 256K x | (1) 256K x | (1) 256K x | (1) 256K x |
| | 36 | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 4MB | (1) 1M x 36 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 5MB | (1) 1M x 36 | (1) 256K x | NONE | NONE |
| | | 36 | | |
|------+-------------+-------------+------------+------------|
| 6MB | (1) 1M x 36 | (1) 256K x | (1) 256K x | NONE |
| | | 36 | 36 | |
|------+-------------+-------------+------------+------------|
| 7MB | (1) 1M x 36 | (1) 256K x | (1) 256K x | (1) 256K x |
| | | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 1M x 36 | (1) 1M x 36 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 9MB | (1) 1M x 36 | (1) 1M x 36 | (1) 256K x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 10MB | (1) 1M x 36 | (1) 1M x 36 | (1) 256K x | (1) 256K x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 12MB | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| 128KB cache is factory installed and is not configurable. |
+------------------------------------------------------------+
