# UNIDENTIFIED
OPTI396 MODEL 2
Processor AM386DXL/80386DX
Processor Speed 25MHz
Chip Set OPTI
Max. Onboard DRAM 32MB
Cache None
BIOS AMI
Dimensions 230mm x 220mm
I/O Options None
NPU Options 80387DX/3167

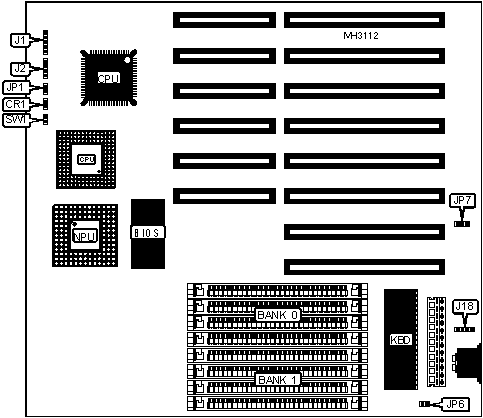

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Turbo LED | CR1 | External battery | J18 |
|-------------------+----------+------------------+----------|
| Power LED & | J1 | Turbo switch | JP1 |
| keylock | | | |
|-------------------+----------+------------------+----------|
| Speaker | J2 | Reset switch | SW1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Factory configured - do not | JP3 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP4 | pins 2 & 3 |
| | alter | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP5 | pins 2 & 3 |
| | alter | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | JP6 | Open |
|---+----------------------------------+--------+------------|
| | Monitor type select color | JP6 | Closed |
|---+----------------------------------+--------+------------|
| » | CMOS memory normal operation | JP7 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | JP7 | pins 1 & 2 |
| | | | closed |
|------------------------------------------------------------|
| Note: The location of jumpers JP3, JP4 and JP5 are |
| unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 256K x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 5MB | (4) 1M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTE |
|------------------------------------------------------------|
| Note: The location of pin 1 is unidentified. |
+------------------------------------------------------------+
