# UNIDENTIFIED
386-25 BOARD
Processor 80386SX
Processor Speed 25MHz
Chip Set OPTI
Max. Onboard DRAM 16MB (8MB on external memory card)
Cache None
BIOS AMI
Dimensions 330mm x 218mm
I/O Options 32-bit external memory card
NPU Options 80387SX/3167

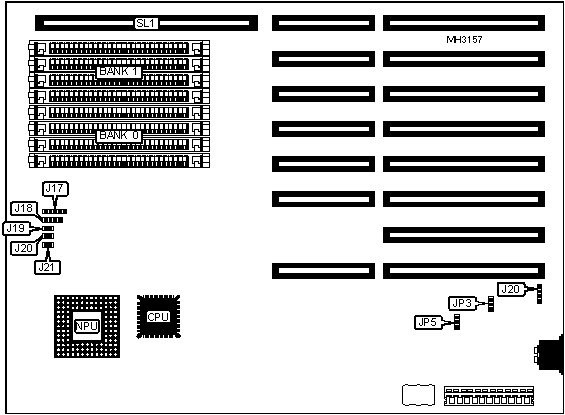

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Power LED & | J17 | Turbo switch | J21 |
| keylock | | | |
|-------------------+----------+------------------+----------|
| Speaker | J18 | Turbo LED | J22 |
|-------------------+----------+------------------+----------|
| Reset switch | J19 | 32-bit external | SL1 |
| | | memory card | |
|-------------------+----------+------------------+----------|
| External battery | J20 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| » | Battery type select internal | J20 | Open |
|---+--------------------------------+--------+--------------|
| | Battery type select external | J20 | Closed |
|---+--------------------------------+--------+--------------|
| » | Monitor type select monochrome | JP3 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select color/EGA | JP3 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| » | CMOS memory normal operation | JP5 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | CMOS memory clear | JP5 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 1MB | (4) 256K x | NONE | NONE | NONE |
| | 9 | | | |
|------+-------------+-------------+------------+------------|
| 2MB | (4) 256K x | (4) 256K x | NONE | NONE |
| | 9 | 9 | | |
|------+-------------+-------------+------------+------------|
| 3MB | (4) 256K x | (4) 256K x | (4) 256K x | NONE |
| | 9 | 9 | 9 | |
|------+-------------+-------------+------------+------------|
| 4MB | (4) 256K x | (4) 256K x | (4) 256K x | (4) 256K x |
| | 9 | 9 | 9 | 9 |
|------+-------------+-------------+------------+------------|
| 4MB | (4) 1M x 9 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 5MB | (4) 256K x | (4) 1M x 9 | NONE | NONE |
| | 9 | | | |
|------+-------------+-------------+------------+------------|
| 5MB | (4) 1M x 9 | (4) 256K x | NONE | NONE |
| | | 9 | | |
|------+-------------+-------------+------------+------------|
| 6MB | (4) 256K x | (4) 256K x | (4) 1M x 9 | NONE |
| | 9 | 9 | | |
|------+-------------+-------------+------------+------------|
| 6MB | (4) 256K x | (4) 1M x 9 | (4) 256K x | NONE |
| | 9 | | 9 | |
|------+-------------+-------------+------------+------------|
| 6MB | (4) 1M x 9 | (4) 256K x | (4) 256K x | NONE |
| | | 9 | 9 | |
|------+-------------+-------------+------------+------------|
| 7MB | (4) 256K x | (4) 256K x | (4) 1M x 9 | (4) 256K x |
| | 9 | 9 | | 9 |
|------+-------------+-------------+------------+------------|
| 7MB | (4) 256K x | (4) 1M x 9 | (4) 256K x | (4) 256K x |
| | 9 | | 9 | 9 |
|------+-------------+-------------+------------+------------|
| 7MB | (4) 1M x 9 | (4) 256K x | (4) 256K x | (4) 256K x |
| | | 9 | 9 | 9 |
|------+-------------+-------------+------------+------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 9MB | (4) 256K x | (4) 1M x 9 | (4) 1M x 9 | NONE |
| | 9 | | | |
|------+-------------+-------------+------------+------------|
| 9MB | (4) 1M x 9 | (4) 1M x 9 | (4) 256K x | NONE |
| | | | 9 | |
|------+-------------+-------------+------------+------------|
| 9MB | (4) 1M x 9 | (4) 256K x | (4) 1M x 9 | NONE |
| | | 9 | | |
|------+-------------+-------------+------------+------------|
| 10MB | (4) 256K x | (4) 256K x | (4) 1M x 9 | (4) 1M x 9 |
| | 9 | 9 | | |
|------+-------------+-------------+------------+------------|
| 10MB | (4) 256K x | (4) 1M x 9 | (4) 1M x 9 | (4) 256K x |
| | 9 | | | 9 |
|------+-------------+-------------+------------+------------|
| 10MB | (4) 1M x 9 | (4) 1M x 9 | (4) 256K x | (4) 256K x |
| | | | 9 | 9 |
|------+-------------+-------------+------------+------------|
| 10MB | (4) 1M x 9 | (4) 256K x | (4) 1M x 9 | (4) 256K x |
| | | 9 | | 9 |
|------+-------------+-------------+------------+------------|
| 12MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 13MB | (4) 256K x | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 |
| | 9 | | | |
|------+-------------+-------------+------------+------------|
| 13MB | (4) 1M x 9 | (4) 1M x 9 | (4) 256K x | (4) 1M x 9 |
| | | | 9 | |
|------+-------------+-------------+------------+------------|
| 13MB | (4) 1M x 9 | (4) 256K x | (4) 1M x 9 | (4) 1M x 9 |
| | | 9 | | |
|------+-------------+-------------+------------+------------|
| 16MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 |
|------------------------------------------------------------|
| Note: Banks 2 & 3 are located on the external memory card. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTE |
|------------------------------------------------------------|
| Note: The location of pin 1 is unidentified. |
+------------------------------------------------------------+
