# UNIDENTIFIED
386DX NON-CACHE MAINBOARD (PGA)
Processor 80386DX
Processor Speed 25/33/40MHz
Chip Set Unidentified
Video Chip Set None
Maximum Onboard Memory 32MB
Maximum Video Memory None
Cache None
BIOS AMI
Dimensions 254mm x 218mm
I/O Options None
NPU Options 80387DX/3167

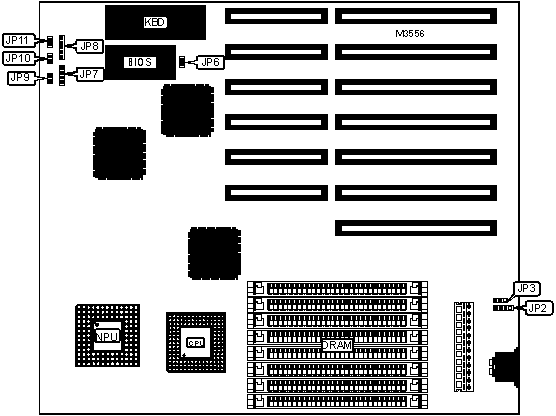

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| External battery | JP2 | Reset switch | JP9 |
|---------------------+----------+----------------+----------|
| Speaker | JP7 | Turbo switch | JP10 |
|---------------------+----------+----------------+----------|
| Power LED & keylock | JP8 | Turbo LED | JP11 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|------------------------------------+-------+---------------|
| ยป | CMOS memory normal operation | JP3 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| | CMOS memory clear | JP3 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| | Monitor type select color | JP6 | Closed |
|---+--------------------------------+-------+---------------|
| | Monitor type select monochrome | JP6 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | None |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | None |
|------------------+--------------------+--------------------|
| 5MB | (4) 256K x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | None |
|------------------+--------------------+--------------------|
| 20MB | (4) 1M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 20MB | (4) 4M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
|------------------------------------------------------------|
| Note: The location of banks 0 & 1 are unidentified. |
+------------------------------------------------------------+
