# UNIDENTIFIED
486 MOTHER BOARD
Processor 80486DX/80486DX2
Processor Speed 25/33/50(internal)/66(internal)MHz
Chip Set OPTI
Video Chip Set None
Maximum Onboard Memory 32MB
Maximum Video Memory None
Cache 64/256KB
BIOS AMI
Dimensions 220mm x 220mm
I/O Options None
NPU Options None

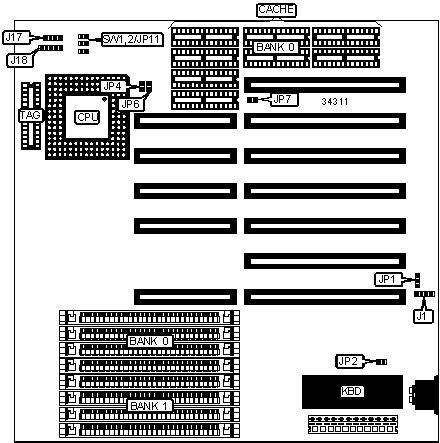

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| External battery | J1 | Turbo LED | JP11 |
|---------------------+----------+----------------+----------|
| Speaker | J17 | Reset switch | SW1 |
|---------------------+----------+----------------+----------|
| Power LED & keylock | J18 | Turbo switch | SW2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| ? | CMOS memory normal operation | JP1 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | CMOS memory clear | JP1 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Monitor type select monochrome | JP2 | Closed |
|---+---------------------------------+-------+--------------|
| | Monitor type select CGA/EGA/VGA | JP2 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | None |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | None |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | None |
|------------------+--------------------+--------------------|
| 20MB | (4) 1M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 20MB | (4) 4M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | TAG |
|------------------+--------------------+--------------------|
| 64KB | (8) 8K x 8 | (1) 8K x 8 |
|------------------+--------------------+--------------------|
| 256KB | (8) 32K x 8 | (1) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP4 | JP6 | JP7 |
|-------------+----------------+--------------+--------------|
| 64KB | Open | Open | Open |
|-------------+----------------+--------------+--------------|
| 256KB | Closed | Closed | Closed |
|------------------------------------------------------------|
| Note: Above jumpers are shown for location purposes only |
| and may not be exact. |
+------------------------------------------------------------+
